10.1" Medical Computer

TP-5040-10M

Previous Generation - Call +1 800 870 7715 for Inventory Details


Description

The TP-5040-10M is a medical-grade, all-in-one PC with a 10.1" widescreen p-cap touch display. With the latest Skylake i3/i5 processors and a fanless cooling system, this unit is ready for installation in your healthcare facilities. The front screen carries an IP65 rating and the unit's housing has anti-bacterial properties to stop the growth of germs. Each computer in this series is IEC 60601-1 3rd edition medically certified.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Medical All-in-Ones.



Key Highlights

  • 10.1" True Flat IP65 Protected Touchscreen
  • Intel Skylake i3/i5/i7 Dual-core CPU
  • fTPM 2.0, Intel vPro&trade
  • Technology Supported
  • Silent & Fanless Cooling System
  • Anti-bacterial Plastic Housing
  • IEC 60601-1 3rd Edition Medical Certification

Use Cases

The TP-5040-10M has a 10.1" widescreen p-cap touch display. With the latest Skylake i3/i5 processors and a fanless cooling system, this medical computer is ready for installation in your healthcare facilities.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

10

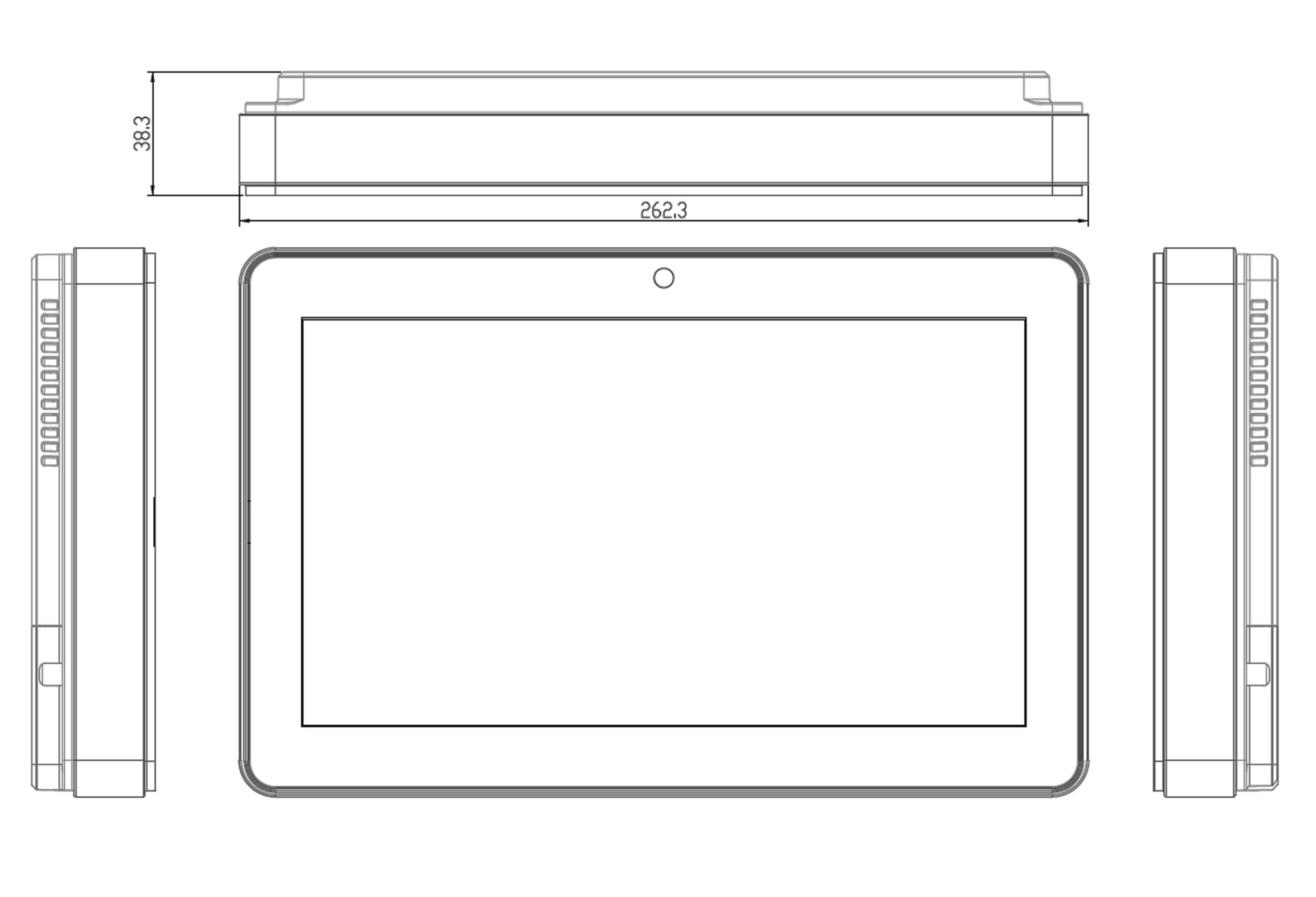

Technical Drawings

TP-5040-10M Medical Computer Technical Drawings

TECH SPECS

See the data sheet

Key Highlights

  • 10.1" True Flat IP65 Protected Touchscreen
  • Intel Skylake i3/i5/i7 Dual-core CPU
  • fTPM 2.0, Intel vPro&trade
  • Technology Supported
  • Silent & Fanless Cooling System
  • Anti-bacterial Plastic Housing
  • IEC 60601-1 3rd Edition Medical Certification

General

Main Category Medical Computer

Primary Components

Processor Family Intel Core I series 6th Generation Skylake
Processor Model Core- i3-6100U
Processor Speed 2.3 GHz, 2.4 GHz
Memory Type 1x DDR3L SO-DIMM
Memory Support 2GB, 4GB, 8GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 10.1"
Resolution 1366 x 768
Screen Ratio 16:9
Brightness 200 nits

Touch Screen

Touch Screen Projected Capacitive

External I/O ports

USB 3x USB 2.0, 2x USB 3.0
Serial / Com 3x COM
Serial Protocol Detail 3x RJ-48
Ethernet / LAN 1x RJ45 GbE LAN
Video Outputs 1x VGA

Power

Input Voltage Range 12-48V DC
Standard Power Adapter 90W, 19V Power Adapter Included

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro

Compatibility

Security Hardware fTPM 2.0, Intel vPro Technology: Intel AMT Supported

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe
video card support Intel HD Graphics

Multimedia

Speakers 2x 2W Speakers
Camera Optional 2MP Webcam

Thermal and Environmental

Operating Temperature 0°C – 35°C
(32°F – 95°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 20% – 85% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Aluminum
Ip Rating IP65 Front Bezel
Color Black, White
Antibacterial Housing Yes
Mounting Options VESA 75 Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi Optional 802.11 b/g/n WLAN card + Bluetooth 4.0
Smartcard Reader Optional Smart IC Card Reader

Dimensions / Weight

Weight 1.5 KG (3.3 lbs)
Dimensions 262 x 38 x 170 mm (10.3 x 1.5 x 6.7 in)

Certification

Certifications 60601-1 3rd Edition, CE, FCC Class A, LVD

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
