15" Fanless Industrial Panel PC

Back to TP-2945 Series | PoE Panel PC Series

TP-2945-15

Increased Lead Times Will Apply - Contact Sales for More Info

15" Industrial PC | TP-2945-15
15" Industrial PC | TP-2945-15
15" Industrial Panel Computer | TP-2945-15
15" Industrial PC | TP-2945-15
15" Industrial PC | TP-2945-15
15" Industrial Panel Computer | TP-2945-15

Description

The TP-2945-15 is a solid mid-range industrial panel pc. The 15” flat touchscreen panel pc is a low power consumption model thanks to its system on chip (SoC) architecture. Perfect for use with your factory software on the manufacturing floor, the TP-2945-15 and its fanless cooling system are designed to run reliably 24/7. The unit's die-cast aluminum enclosure carries a front bezel waterproof rating of IP66. This fanless panel PC has a powerful 1.83 GHz quad core CPU and is designed to run with software systems such as SCADA (Supervisory Control and Data Acquisition) and MES (Manufacturing Execution Systems).

Key Highlights

  • 15" True Flat Panel Touch Screen
  • Intel Bay Trail Quad Core N2930 1.83GHz CPU
  • Optional PoE (Power over Ethernet)
  • 4GB Onboard DDR3L Memory
  • 2 Pin Connector for Power Switch
  • IP66 Front in Aluminum Die-Cast Housing
GET A DEMO GET A QUICK QUOTE

starting at

$1,243.00

CUSTOMIZE & BUY

Product Features

The TP-2945-15 is a solid mid-range industrial panel PC. The 15” TFT-LCD touchscreen has a 4:3 screen ratio and a 1024 x 768 screen resolution. This computer runs on an Intel Bay Trail CPU and is perfect for use with your factory software on the manufacturing floor, such as SCADA (Supervisory Control and Data Acquisition) and MES (Manufacturing Execution Systems).

*Internal Battery and PoE Cannot Coexist

What’s in the Box

    • Pheonix Connector for Power Input
    • Panel Mounting Clips
View warranty Information
View all features in the series See the data sheet

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

Industrial Computer Labeled Inputs and Outputs

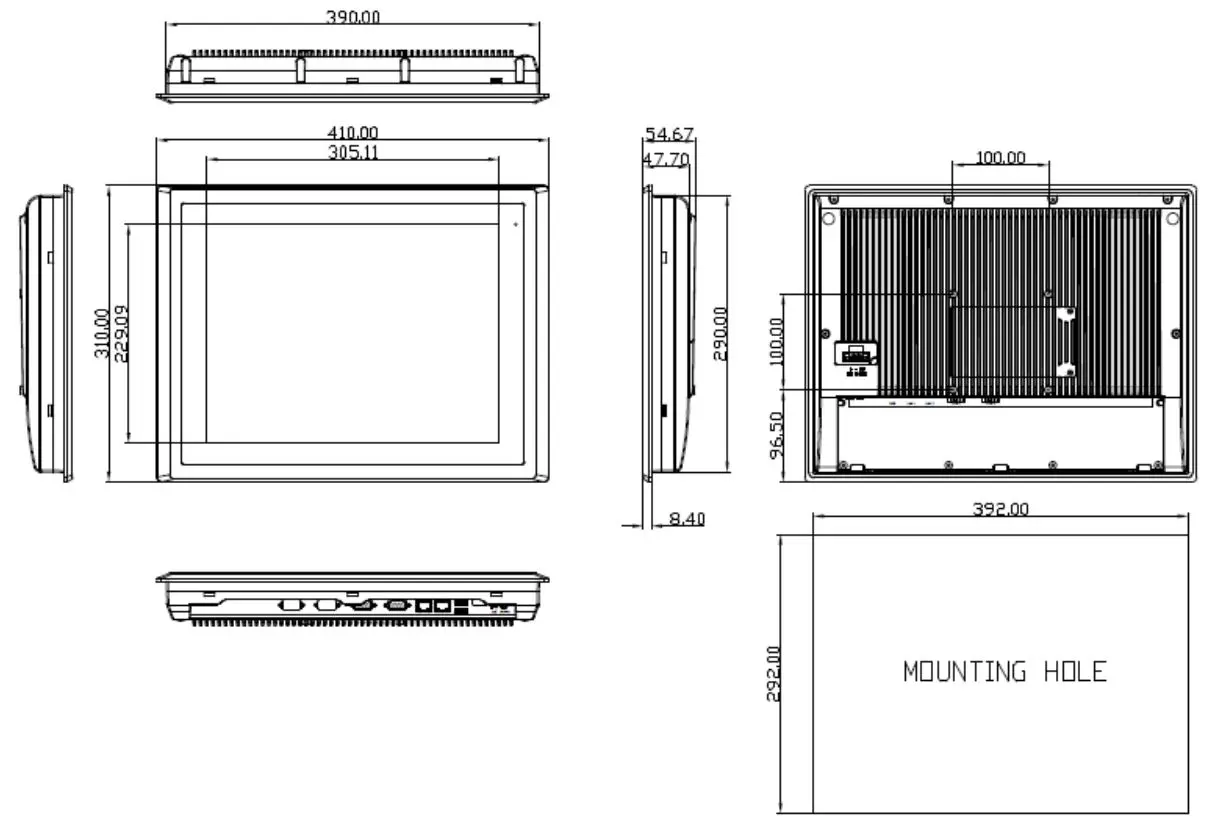

Technical Drawings

15

TECH SPECS

See the data sheet

Key Highlights

  • 15" True Flat Panel Touch Screen
  • Intel Bay Trail Quad Core N2930 1.83GHz CPU
  • Optional PoE (Power over Ethernet)
  • 4GB Onboard DDR3L Memory
  • 2 Pin Connector for Power Switch
  • IP66 Front in Aluminum Die-Cast Housing

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model N2930
Processor Speed 1.83 GHz
Memory Type Onboard DDR3
Memory Support 4GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 15"
Resolution 1024 x 768 (XGA)
Screen Ratio 4:3
Brightness 300 nits, Optional 1000 nit High Brightness
Contrast Ratio 800:1
Viewing Angle 170º (H), 170º (V)

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)

External I/O ports

USB 2x USB 3.0
Serial / Com 2x COM
Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x HDMI
Other Ports 1x 2-Pin DC Power Switch Connector
Audio 1x Optional Audio Line-Out
Power Input Port 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range 9-32V DC
Standard Power Adapter Optional 12V AC/DC Adapter

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 8.1 Pro
Linux Linux

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Thermal and Environmental

Operating Temperature -20°C – 60°C
(-4°F – 140°F)
Storage Temperature -30°C – 70°C
(-22°F – 158°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum
Ip Rating IP66 Front Bezel
Mounting Options Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi Optional WiFi
BlueTooth Optional Bluetooth 4.0
Mobile Network 4G LTE Optional 4G

Dimensions / Weight

Weight 4.4 KG (9.7 lbs)
Dimensions 410 x 310 x 54.7 mm (16.1 x 12.2 x 2.2 in)

Certification

Certifications CE, FCC Class A, UL 60950

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
VESA Wall Mount Kit

Flush VESA Wall Mounting Kit

This Wall Mount Kit is compatible with most Teguar Industrial and Medical Computers screen sizes 10"...

Teguar VESA stand for Computers

Table Stand for VESA mount

Teguar's universal table stand is compatible with any computer with a VESA 75 or 100 mounting pattern....
