12" Fanless Panel PC

TP-2945-12

Available

12" Industrial Panel PC | TP-2945-12
12" Industrial Computer | TP-2945-12
12" Fanless Panel PC | TP-2945-12
12" Industrial Panel PC | TP-2945-12
12" Industrial Computer | TP-2945-12
12" Fanless Panel PC | TP-2945-12

Description

The 12" Fanless Panel PC is a solid addition to any shop floor or manufacturing operation. The 12.1" full flat touchscreen display allows for easy interaction with facility software. By utilizing a system on chip (SoC) architecture, this unit can provide strong CPU performance without being a massive drain on power. Built with industrial-grade solid state components, this fanless panel pc can easily withstand working environments containing dust, dirt, and vibrations. The rugged housing is made of a tough die-cast aluminum and features an IP65 dust and waterproof rating on the front bezel. For added versatility you can choose to configure this computer to receive its power from a standard ethernet cable (PoE) rather than using a DC input cable.

Key Highlights

  • 12.1" True Flat Panel Touch Screen
  • Intel Bay Trail Quad Core N2930 1.83GHz CPU
  • Onboard DDR3L 4GB Memory
  • Optional PoE (Power over Ethernet)
  • IP66 Protected Front Bezel
  • 2 Pin Connector for Power Switch
GET A DEMO GET A QUICK QUOTE

Use Cases

Industrial Automation: The TP-2945 Series can be used in industrial automation applications, such as machine control, monitoring production lines, and data acquisition.

Outdoor Environments: These rugged panel PCs with IP66 rated waterproof front bezels are suitable for outdoor environments, such as outdoor kiosks, digital signage, and outdoor equipment monitoring.

Transportation and Logistics: The TP-2945 Series can be utilized in transportation and logistics settings for fleet management, vehicle tracking, and warehouse management, thanks to their durability and PoE capability.

*Internal Battery and PoE Cannot Coexist

What’s in the Box

    • Pheonix Connector for Power Input
    • Panel Mounting Clips
See the data sheet Warranty Download Drivers

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

12-inch Industrial Computer Inputs/Outputs

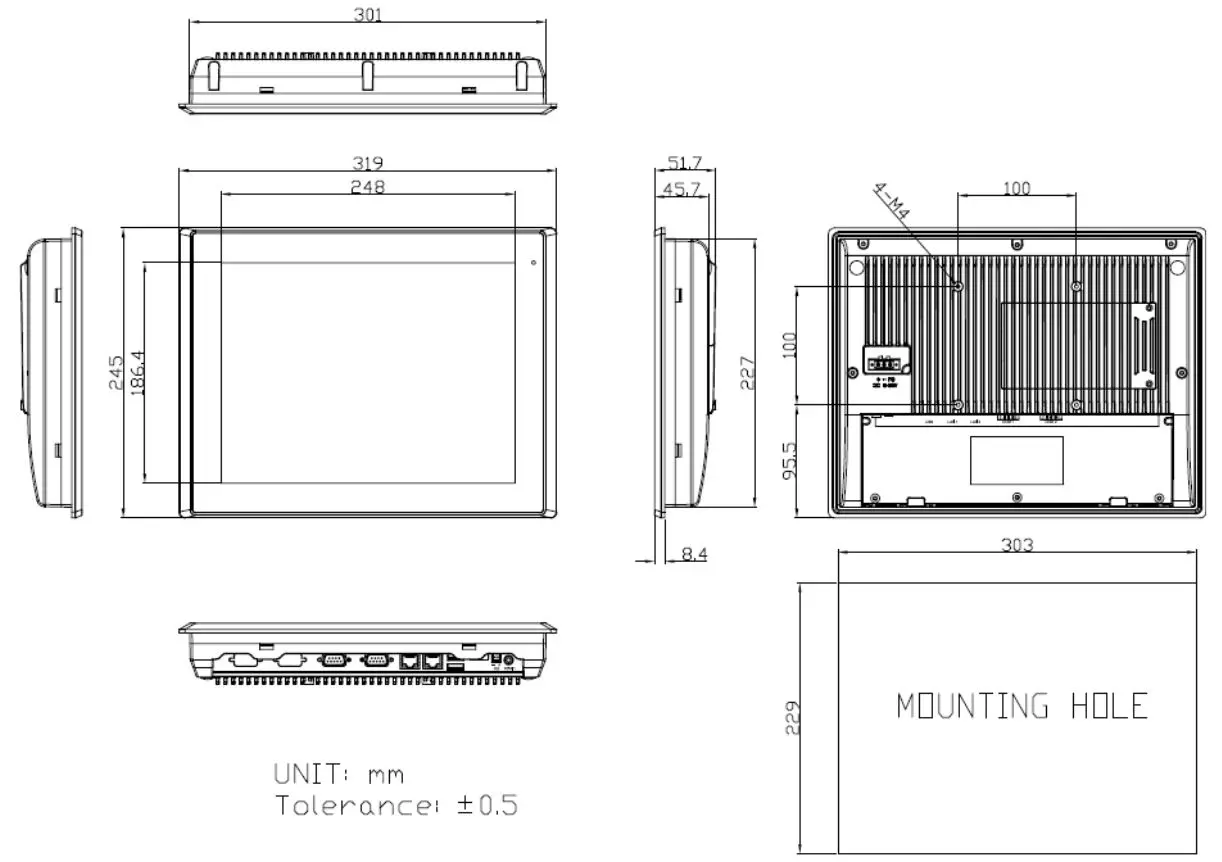

Technical Drawings

12

TECH SPECS

See the data sheet Download Drivers

Key Highlights

  • 12.1" True Flat Panel Touch Screen
  • Intel Bay Trail Quad Core N2930 1.83GHz CPU
  • Onboard DDR3L 4GB Memory
  • Optional PoE (Power over Ethernet)
  • IP66 Protected Front Bezel
  • 2 Pin Connector for Power Switch

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model N2930
Processor Speed 1.83 GHz
Memory Type Onboard DDR3
Memory Support 4GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 12.1"
Resolution 1024 x 768 (XGA)
Screen Ratio 4:3
Brightness 450 nits, 500 nits, Optional 1000 nit High Brightness
Contrast Ratio 800:1
Viewing Angle 160º (H), 140º (V)

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)

External I/O ports

USB 2x USB 3.0
Serial / Com 2x COM
Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x HDMI
Other Ports 1x 2-Pin DC Power Switch Connector
Audio 1x Audio Line-Out
Power Input Port 3-Pin DC-In (Phoenix Type), Optional POE+, 30W with 2x USB 2.0

Power

Input Voltage Range 9-36V DC
Standard Power Adapter Optional 12V AC/DC Adapter

Battery

Type Optional Internal Battery

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 8.1 Pro
Linux Linux (Contact your sales rep for more information)

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Thermal and Environmental

Operating Temperature -20°C – 60°C
(-4°F – 140°F)
Storage Temperature -30°C – 70°C
(-22°F – 158°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum
Ip Rating IP66 Front Bezel
Mounting Options Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi Optional WiFi
BlueTooth Optional Bluetooth 4.0
Mobile Network 4G LTE Optional 4G

Dimensions / Weight

Weight 2.5 KG (5.5 lbs)
Dimensions 319 x 245 x 52 mm (12.6 x 9.6 x 2.0 in)

Certification

Certifications CE, FCC Class A, UL 60950

Warranty

Warranty Up to 5 Years
