10” Rugged Tablet PC

TRT-5280-10

Previous Generation - Call +1 800 870 7715 for Inventory Details


Description

The TRT-5280-10 runs on a powerful Intel Core i7 processor. It has a 10.1 inch gorilla glass touchscreen and has durable housing that protects the tablet from drops and shocks. This tablet PC is also fully waterproof, rated IP65, so you don’t need to worry about rain or humidity. The battery can be easily removed and swapped out for a fully-charged battery. Stay connected out in the field, with WiFi, Bluetooth, 4G LTE and GPS. This tablet also has additional options for a FingerPrint Reader, NFC, 1D/2D barcode scanner, Serial port, Ethernet port, or an extra USB port along with a variety of docking stations on the desk or in the vehicle.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Rugged Windows Tablets.

Key Highlights

  • 10.1” Capacitive Touchscreen with FHD LCD
  • Intel Quad Core i7 CPU with DDR4 RAM
  • 2MP Front and 8MP AutoFocus Rear Camera
  • Optional Barcode Scanner, NFC, Serial, & LAN
  • Hot-Swappable Battery Technology
GET A DEMO

Previous Generation - Call +1 800 870 7715 for Inventory Details


Use Cases

Logistics and Warehouse Management: With their raised corners and IP65 waterproof rating, the TRT-5280 Series tablets are well-suited for logistics and warehouse management tasks, providing reliable devices for barcode scanning, inventory control, and data entry in demanding industrial settings.

Outdoor Field Service: The TRT-5280 Series tablets, with their rugged design and optional modules such as a DB9 COM port, are suitable for outdoor field service tasks, enabling technicians to access manuals, communicate with central systems, and perform on-site repairs in various industries.

Facility Maintenance and Inspections: The TRT-5280 Series tablets, with their hot-swappable battery and rugged construction, are well-suited for facility maintenance and inspections, allowing technicians to perform routine checks, record data, and address maintenance tasks in industrial facilities or large buildings.

What’s in the Box

    • TRT-5280-10
    • AC/DC 19V, USA Power Supply
    • Handstrap
    • Carry Handle
See the data sheet Warranty

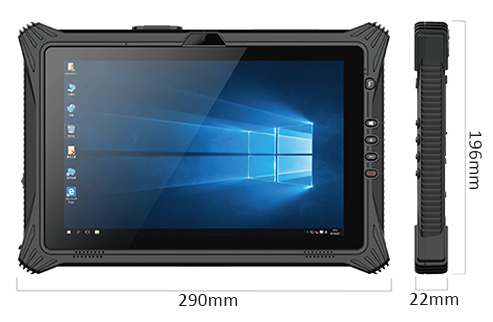

Dimensional Drawings & I/Os

See the data sheet

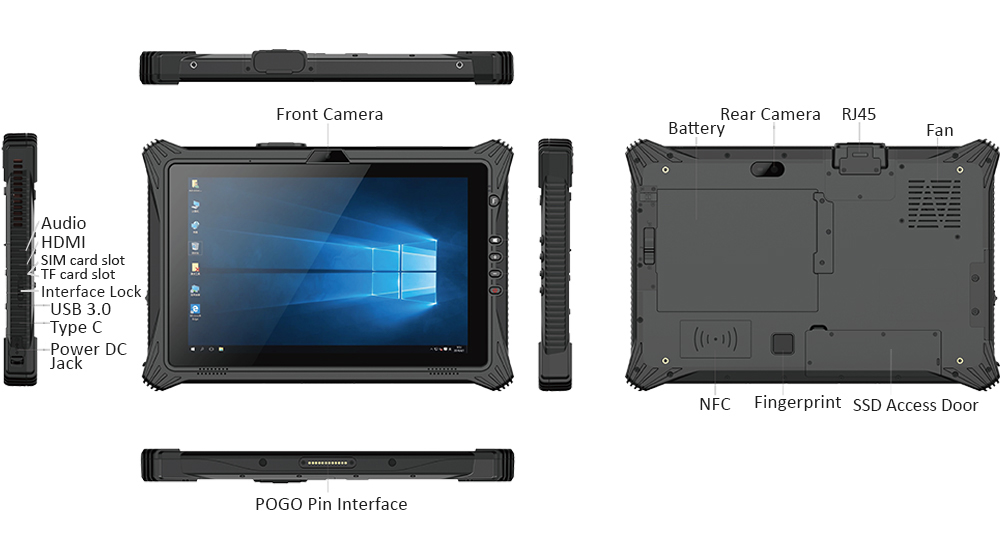

Inputs / Outputs

Technical Drawings

TECH SPECS

See the data sheet

Key Highlights

  • 10.1” Capacitive Touchscreen with FHD LCD
  • Intel Quad Core i7 CPU with DDR4 RAM
  • 2MP Front and 8MP AutoFocus Rear Camera
  • Optional Barcode Scanner, NFC, Serial, & LAN
  • Hot-Swappable Battery Technology

General

Main Category Rugged Tablet PC

Primary Components

Processor Family Intel Core I Series 8th Generation Kaby Lake R
Processor Model Core i7-8550U
Processor Speed 1.8 GHz
Memory Type Onboard DDR4L
Memory Support 16GB, 32GB (MOQ)
Storage type M.2
Storage support 128GB (Standard), up to 1TB (Optional)

Display

Screen Size 10.1"
Resolution 1920 x 1200 (WUXGA)
Brightness 400 nits

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)
Hardness 7H
Glass type Gorilla Glass

External I/O ports

USB 1x USB 3.0, 1x USB Type C (USB 3.0, HDMI, Charging)
Video Outputs 1x Mini HDMI
Docking Connector Yes
Other Ports 1x TF Card Slot
Audio 1x 3.5mm Headphone Jack
Power Input Port 4.0mm DC-in Jack

Power

Input Voltage Range 19V DC

Battery

Type Internal 7.4V/860mAh Battery
Operating Time 8hrs (Default 50% volume, 50% Brightness, Playing 1080P Video)
Quantity 1x Internal Battery, 1x Removable Battery

Operating Systems

Windows Windows 10 Pro, Windows 7 Pro

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Expansion Module support Choose 1 Option Only - Option 1: 1x Ethernet RJ45; Option 2: 1x D89(RS232) Serial port; Option 3: 1x USB 2.0; Option 4: 1x 1D Scanner- MOTO SE655E100R; Option 5: 1x 2D Scanner-Honeywell N3680"

Multimedia

Speakers 1x 0.8W Speaker
Camera Front: 2MP, Rear: 8MP w/ flash
Microphone Built-in Microphone

Thermal and Environmental

Operating Temperature -20°C – 60°C
(-4°F – 140°F)
Storage Temperature -30°C – 70°C
(-22°F – 158°F)
Humidity Range 5% – 95% Non-condensing
Storage Humidity 5% – 95% Non-condensing
Cooling Solution Active – with Fan

Enclosure

Ip Rating IP65
Color Black
Led Indicator Light Battery, Power
Control Buttons Audio Down, Audio Up, Home, Power Button, Scanner
Shock Rating MIL-STD-810G Shock and Drop Resistant

Peripherals & Wireless Connectivity

WiFi WIFI 802.11(a/b/g/n/ac)
BlueTooth Bluetooth 4.2
GPS Ublox M8
Mobile Network 4G LTE Quectel EC25 M.2 Modules
Sim card 1x Micro SIM Card Slot
Barcode Scanner Optional 1D/2D Barcode Scanner
Peripheral Other Optional Fingerprint Reader, Optional NFC Reader
Sensors Accelerometer

Dimensions / Weight

Weight 1.22 KG (2.7 lbs)
Dimensions 290x196x22 mm (11.4 x 7.7 x 0.9 in)

Certification

Certifications IP65, MIL-STD-810G

Warranty

Warranty 1 Year
