12" Ruggedized Tablet

Back to Ruggedized Tablets | TRT-3493 Series Series

TRT-3493-12

Available

Ruggedized tablet front view
Ruggedized tablet front side view
Ruggedized tablet back view with handstrap
Ruggedized tablet back view with shoulder strap
Ruggedized tablet accessories
Ruggedized tablet front view
Ruggedized tablet front side view
Ruggedized tablet back view with handstrap
Ruggedized tablet back view with shoulder strap
Ruggedized tablet accessories

Description

The Teguar TRT-3493-12 represents the ultimate in tablet versatility. Like all of Teguar's rugged tablets, the TRT-3493-12 has a Gorilla Glass screen and a drop rating of 4ft at any angle, making it suitable for even the most demanding applications. What sets the TRT-3493-12 apart is its modularity. Thanks to a variety of desktop and vehicle docking solutions offered, the TRT-3493-12 has the ability to be mounted or stored virtually anywhere. When it's time to take the TRT-3493-12 back into the field, users can utilize the back handstrap or a shoulder strap, both included with the tablet. Removable batteries with charging stations can also be provided to further increase operational time between charges.

> Read an independent review of this tablet on RuggedPCReview.com

Key Highlights

  • Intel Apollo Lake Quad-Core CPU
  • NFC reader for RFID
  • Weighs less than 2lbs (.9kg), the lightest rugged tablet in its class
  • Gorilla Glass screen and rugged shock-absorbing frame
  • Includes 1x Hot Swappable Battery
GET A DEMO GET A QUICK QUOTE

starting at

$1,758.00

CUSTOMIZE & BUY

Product Features

The TRT-3493-12 Ruggedized Tablet has a 11.6" PCap touchscreen, with three function keys located on the front bezel. This tablet has a drop and shock-proof IP65 rated enclosure that keeps it protected from industrial elements. It runs on the Intel Apollo Lake Quad Core CPU and includes one hot swappable battery.

What’s in the Box

    • TRT-3493-12
    • AC/DC 19V/65W, USA Power Supply
    • Handstrap
    • Shoulder Strap
View warranty Information
View all features in the series See the data sheet

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

ruggedized tablet IOs

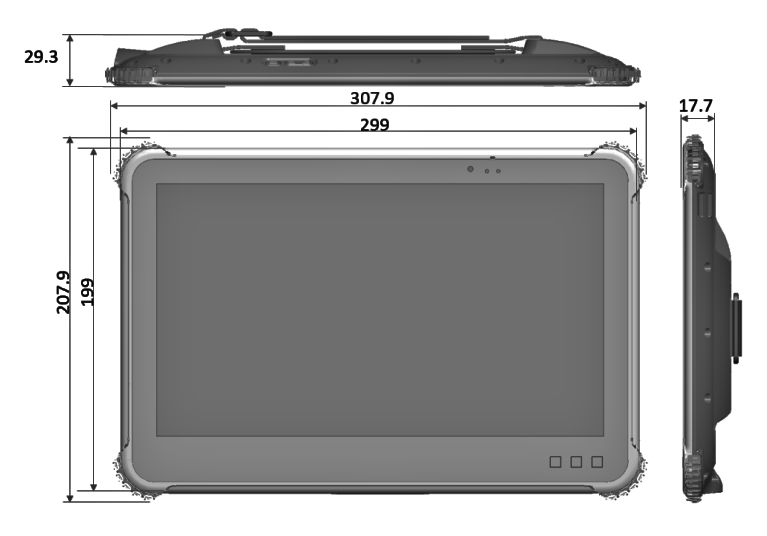

Technical Drawings

TECH SPECS

See the data sheet

Key Highlights

  • Intel Apollo Lake Quad-Core CPU
  • NFC reader for RFID
  • Weighs less than 2lbs (.9kg), the lightest rugged tablet in its class
  • Gorilla Glass screen and rugged shock-absorbing frame
  • Includes 1x Hot Swappable Battery

General

Main Category Rugged Tablet PC

Primary Components

Processor Family Intel Pentium Apollo Lake
Processor Model N4200E
Processor Speed 1.1 GHz
Memory Type Onboard LPDDR4
Memory Support 8GB
Storage type M.2
Storage support M.2 128GB Standard, (Optional 256GB)

Display

Screen Size 11.6"
Resolution 1920 x 1080 (Full HD)
Screen Ratio 16:9
Brightness 300 nits, Optional 500 nit

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)
Glass type Gorilla Glass 3

External I/O ports

USB 1x USB 3.0
Audio 1x 3.5mm Audio Line-Out
Power Input Port 3.5mm DC-in Jack, Pogo Pin Connector

Power

Input Voltage Range 19V DC
Standard Power Adapter AC to DC, DC 19V 65W Adaptor

Battery

Type Hot Swappable 7.6V/2570mAh Battery
Operating Time 4.2hrs
Quantity 1x Battery

Operating Systems

Windows Windows 10 IoT
Linux Linux CentOS 7, *Limited Configuration

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Expansion Module support Desktop Dock or Vehicle Dock with I/O Extension

Multimedia

Speakers 2x 0.8W Speakers
Camera Front: 8MP Auto Focus w/flash, Rear: 8MP
Microphone Built-in Microphone

Thermal and Environmental

Operating Temperature -10°C – 50°C
(14°F – 122°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing

Enclosure

Material Plastic
Ip Rating IP65
Color Black
Led Indicator Light Charging Indicator, Power
Control Buttons Audio Down, Audio Up, Power Button
Programmable Function Buttons 3x Programmable Function Keys
Shock Rating MIL-STD-810G Shock and Drop Resistant
Drop Rating 4ft Drop Protection

Peripherals & Wireless Connectivity

WiFi WiFi 802.11 (a/b/g/n/ac)
BlueTooth Bluetooth 4.2
Barcode Scanner Optional 1D/2D Barcode Scanner, Swift Software Decoder
RFID NFC
Sensors Accelerometer, Light Sensor, Gyroscope

Dimensions / Weight

Weight 0.895 KG (2.0 lbs)
Dimensions 307.9 x 207.9 x 29.3 mm (12.1 x 8.2 x 1.2 in)

Certification

Certifications CE, FCC, VCCI

Warranty

Warranty Up to 5 Years

Filters

Main Category Filter Rugged Tablet PC

Accessories

See the data sheet
Battery Charger with 1 battery for TRT-3493-12

2-Bay Battery Charger & 1 Battery for TRT-3493-12

The 6339-00 2-Bay Battery Charger is compatible with batteries for the TRT-3493-12 and includes 1x 7.6V...

Battery for TRT-3493-12

Battery for TRT-3493-12

The 6241-93 Hot-Swappable 7.6V 2570mAh Battery is compatible with Teguar's TRT-3493-12.

Desktop Dock for 12" Tablet

Desktop Docking Station for TRT-3493-12

The 6213-93 Desktop Docking Station is compatible with Teguar's TRT-3493-12 and includes an extra battery...

Vehicle Dock for TRT-3493-12

Vehicle Dock for TRT-3493-12

The 6214-93 is compatible with Teguar's TRT-3493-12.

Customize & Buy

RAM
Storage
Operating System
Add 2D Scanning Software?
Add High Bright Screen?
Accessories

Select the accessories you wish to add to your order.
See the Accessories tab for accessory details.

Additional Hot-Swappable Battery - $74
Battery for TRT-3493-12
2-Bay Battery Charger & 1 Additional Battery - $247
Battery Charger with 1 battery for TRT-3493-12
Vehicle Dock - $343
Vehicle Dock for TRT-3493-12
Desktop Docking Station - $464
Desktop Dock for 12" Tablet

12" Ruggedized Tablet

TRT-3493-12

Includes:

  • Intel Apollo Lake Quad-Core CPU
  • NFC reader for RFID
  • Weighs less than 2lbs (.9kg), the lightest rugged tablet in its class

12" Ruggedized Tablet

1758

$1,758.00

MSRP:

For additional customization and quantity discounts, reach out to use directly for a custom quote!

Get a Full Custom Quote

Quantities up to 10 can be purchased online.

For quantities over 10, you must request a quote or contact us at sales@teguar.com or 704-960-1761.
