12" Medical Tablet PC

TMT-4375-12

Available


Description

The TMT-4375-12 is a medical tablet that is designed to flourish under any conditions in the healthcare environment. These fanless mobile units come with Intel quad core Atom processors, as well as Wi-Fi, Bluetooth 4.0, and GPS. They have an antibacterial coating to inhibit the growth of germs and are UL/EN 60601 medically certified. The tablets are also IP54 dust and waterproof rated and are shock resistant to protect from accidental drops. With a sleek and slim design, the TMT-4375-12 is ideal in the hospital or a doctor’s office for on-the-go personnel.

Key Highlights

  • 12" Projected Capacitive Touchscreen
  • Intel Quad Core Atom CPU
  • WiFi 802.11 and Bluetooth 4.0
  • IP54 Dust and Waterproof Rated
  • UL/EN 60601 Medically Certified
  • Slim and Fanless Design

This product is no longer being manufactured and will not be able to be purchased/quoted.

Product Features

The TMT-4375-12 Medical Tablet runs on an Intel quad core Atom processors, and has Wi-Fi, Bluetooth 4.0, and GPS. This tablet has antibacterial coating and is 60601 medically certified.

Dimesional Drawings & I/Os

See the data sheet

Inputs / Outputs

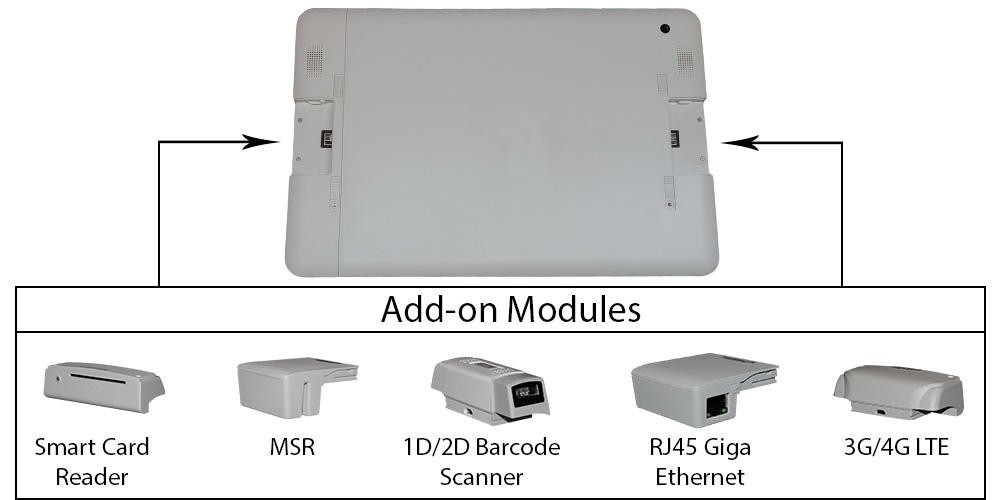

TMT-4375-12 Optional Modules

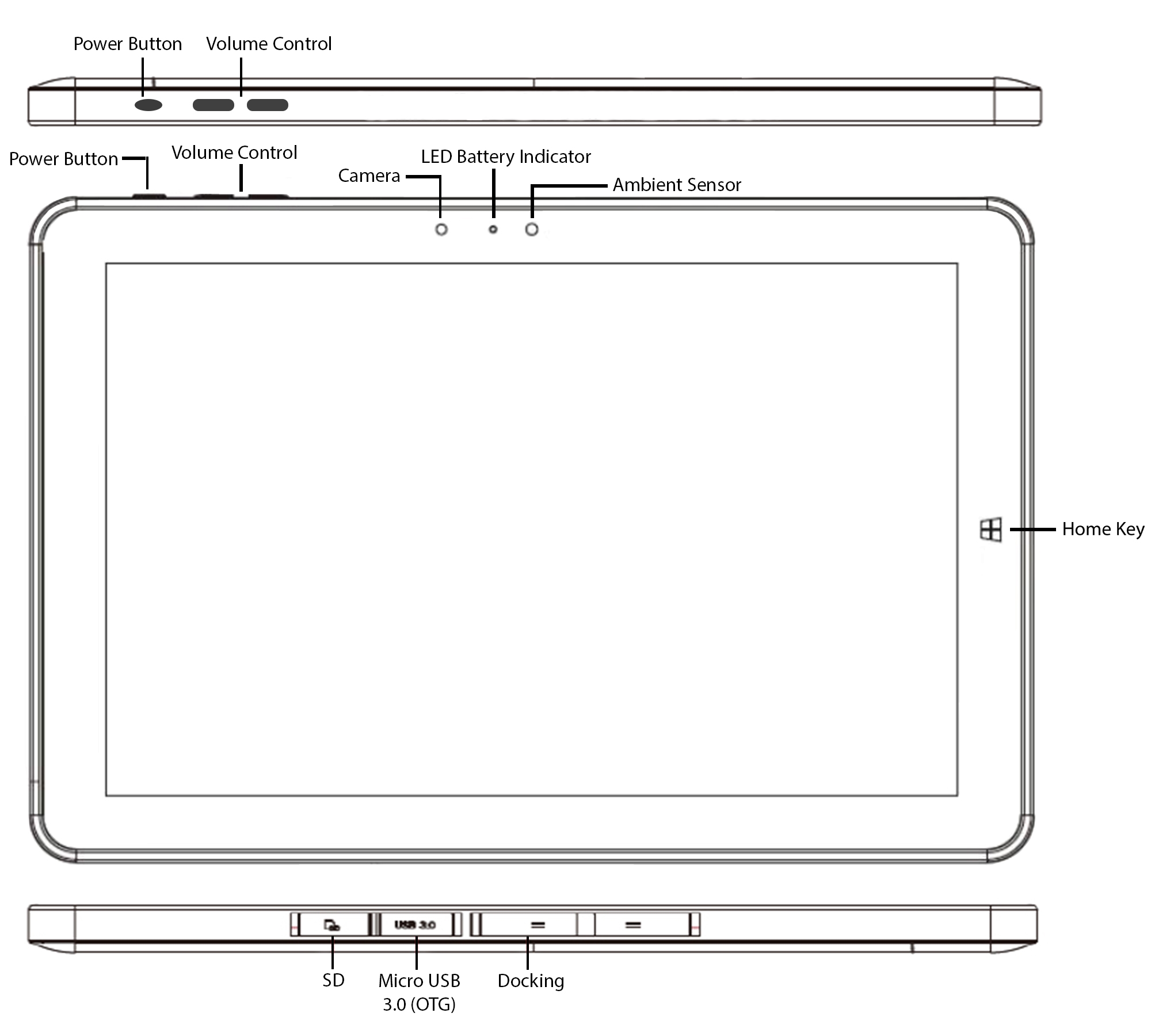

Technical Drawings

TMT-4375-12 Specs

TECH SPECS

See the data sheet

Key Highlights

  • 12" Projected Capacitive Touchscreen
  • Intel Quad Core Atom CPU
  • WiFi 802.11 and Bluetooth 4.0
  • IP54 Dust and Waterproof Rated
  • UL/EN 60601 Medically Certified
  • Slim and Fanless Design

Primary Components

Processor Family Intel Atom Mobile Cherry Trail
Processor Model Z8550
Processor Speed 1.44 GHz
Memory Type Onboard DDR3
Memory Support 4GB
Storage type Onboard eMMC Flash
Storage support 32GB

Display

Screen Size 12"
Resolution 1920 x 1200 (WUXGA)
Screen Ratio 16:10

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)

External I/O ports

USB 1x Micro USB 2.0 OTG
Other Ports 1x USB via adapter cable
Audio 1x Audio Line-Out, 1x Mic-In
Power Input Port DC-in via adapter cable

Battery

Type Internal Battery
Quantity 1x Battery

Operating Systems

Windows Windows 10 IoT

Compatibility

Security Hardware TPM 2.0

Expansion Slots

SD card 1x Micro SD Slot

Multimedia

Speakers 2x 1W Speakers
Camera Front: 2MP, Rear: 8MP
Microphone Built-in Microphone

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 95% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Double Injection
Antibacterial Housing Yes
Approved Cleaning Solutions Acetone, Alcohol, Club Soda, Hydrochloric Acid, Methyl Alcohol, Mineral Spirits, Nitric Acid, Sulfuric Acid (low concentration), Vinegar, Warm Water
Cleaning Instructions View instructions here

Peripherals & Wireless Connectivity

WiFi WiFi 802.11 a/b/g/n/ac + Bluetooth 4.0
GPS Yes
RFID NFC- ISO1443A/B, PC/SC
Smartcard Reader Optional
Sensors Accelerometer, Light Sensor

Dimensions / Weight

Weight 1.054 KG (2.3 lbs)
Dimensions 311 x 206 x 15 mm (12.2 x 8.1 x 0.6 in)

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
