10” Fanless Panel PC

TP-3445-10

Available

10" Industrial Panel PC
10" Fanless Panel PC
10" Industrial Touchscreen Computer
10" Industrial Panel PC
10" Fanless Panel PC
10" Industrial Touchscreen Computer

Description

The 10” Fanless Panel PC is an industrial grade panel mount computer built with die cast aluminum. It runs on an Apollo Lake CPU and has a wide range DC power input of 9~36V. This computer has several options that you can choose from to make it perfect for your manufacturing plant or assembly line. Choose from several different expansion boards to add Mini-PCIe, SIM, USB or COM. This computer also supports Power over Ethernet, an optional internal backup battery, Pcap or resistive touch, and a high bright LCD. The TP-3445-10 is built to last and we’re committed to supporting and selling this until at least 2030, so you don’t need to worry about hardware changes interrupting your workflow.

Key Highlights

  • 10.1” LCD Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Easily Accessable Storage Bay
  • Die-cast Aluminum Housing
  • Optional Power over Ethernet
GET A DEMO GET A QUICK QUOTE

Use Cases

Industrial Automation: The TP-3445 Series is well-suited for industrial automation applications such as machine control, data acquisition, and process monitoring. The durable construction and wide range of expansion options make it reliable and flexible in various industrial environments.

Outdoor Digital Signage: With its optional high-bright, sunlight-readable LCD, the TP-3445 Series is ideal for outdoor digital signage. It can withstand different weather conditions and deliver clear and visible content to engage customers or provide information in outdoor settings.

Transportation and Logistics: These panel PCs are suitable for transportation and logistics applications such as fleet management, vehicle tracking, and warehouse management. The wide range DC power input and optional internal backup battery ensure uninterrupted operation in mobile and remote environments.

What’s in the Box

    • Pheonix Connector for Power Input
    • Panel Mounting Clips
See the data sheet Warranty Download Drivers

Dimensional Drawings & I/Os

See the data sheet

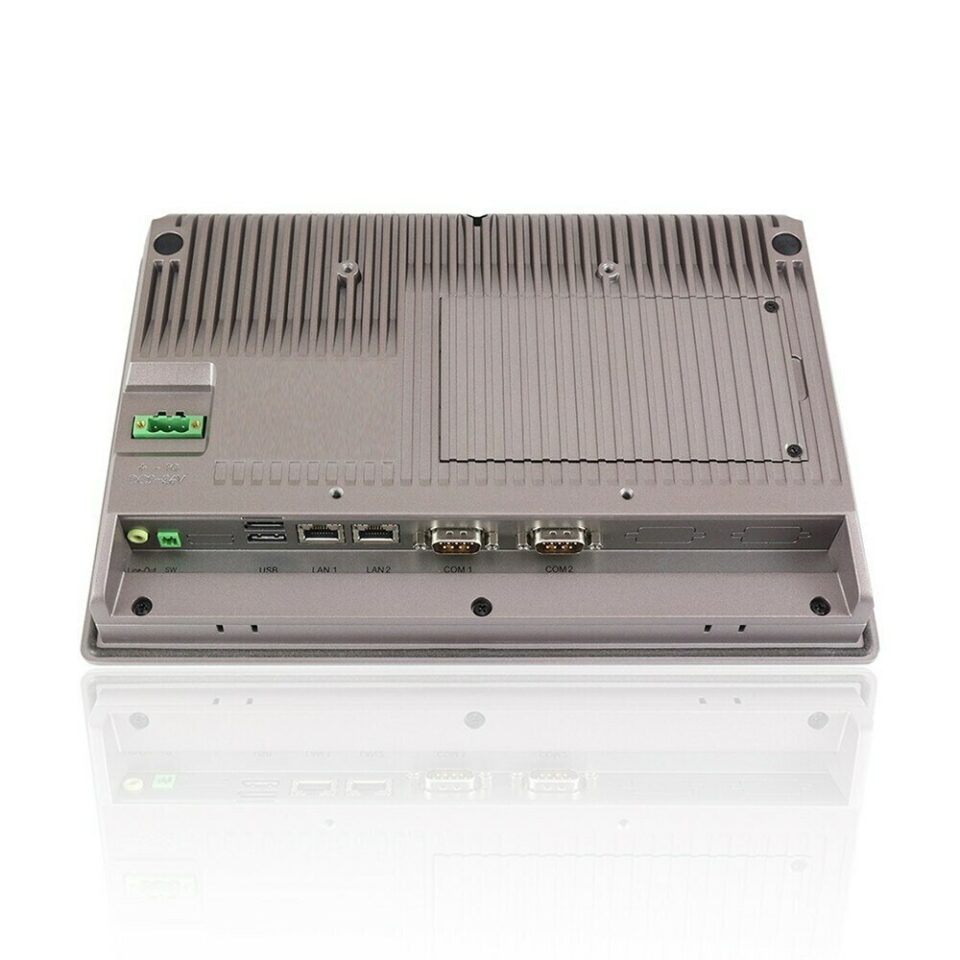

Inputs / Outputs

10-inch Industrial Computer Inputs/Outputs

Technical Drawings

10-inch Industrial Computer Dimensional Drawing

TECH SPECS

See the data sheet Download Drivers

Key Highlights

  • 10.1” LCD Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Easily Accessable Storage Bay
  • Die-cast Aluminum Housing
  • Optional Power over Ethernet

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Pentium Apollo Lake
Processor Model N4200
Processor Speed 1.10 GHz
Memory Type Onboard DDR3
Memory Support 4GB, 8GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 10.1"
Resolution 1280 x 800 (WXGA)
Screen Ratio 16:10
Brightness 350 nits, Optional 1000 nit High Brightness
Contrast Ratio 800:1
Viewing Angle 160º (H), 160º (V)

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)

External I/O ports

USB 2x USB 3.0
Serial / Com 2x COM
Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x HDMI
Other Ports 1x 2-Pin DC Power Switch Connector
Audio 1x Audio Line-Out
Power Input Port 3-Pin DC-In (Phoenix Type), Optional POE+, 30W with 2x USB 2.0

Power

Input Voltage Range 9-36V DC
Max Power consumption 30W
Standard Power Adapter Optional 12V AC/DC Adapter

Battery

Type Optional Internal Battery

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro
Linux Linux (Contact your sales rep for more information)

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Thermal and Environmental

Operating Temperature -20°C – 60°C
(-4°F – 140°F)
Storage Temperature -30°C – 70°C
(-22°F – 158°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum
Ip Rating IP66 Front Bezel
Mounting Options Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi Optional WiFi
BlueTooth Optional Bluetooth 4.0
Mobile Network 4G LTE Optional 4G

Dimensions / Weight

Weight 1.9 KG (4.2 lbs)
Dimensions 285 x 49 x 189 mm (11.2 x 1.9 x 7.4 in)

Certification

Certifications CE, FCC Class A, UL 60950, UL 62368

Warranty

Warranty Up to 5 Years
