TP-4010-15

Available


Description

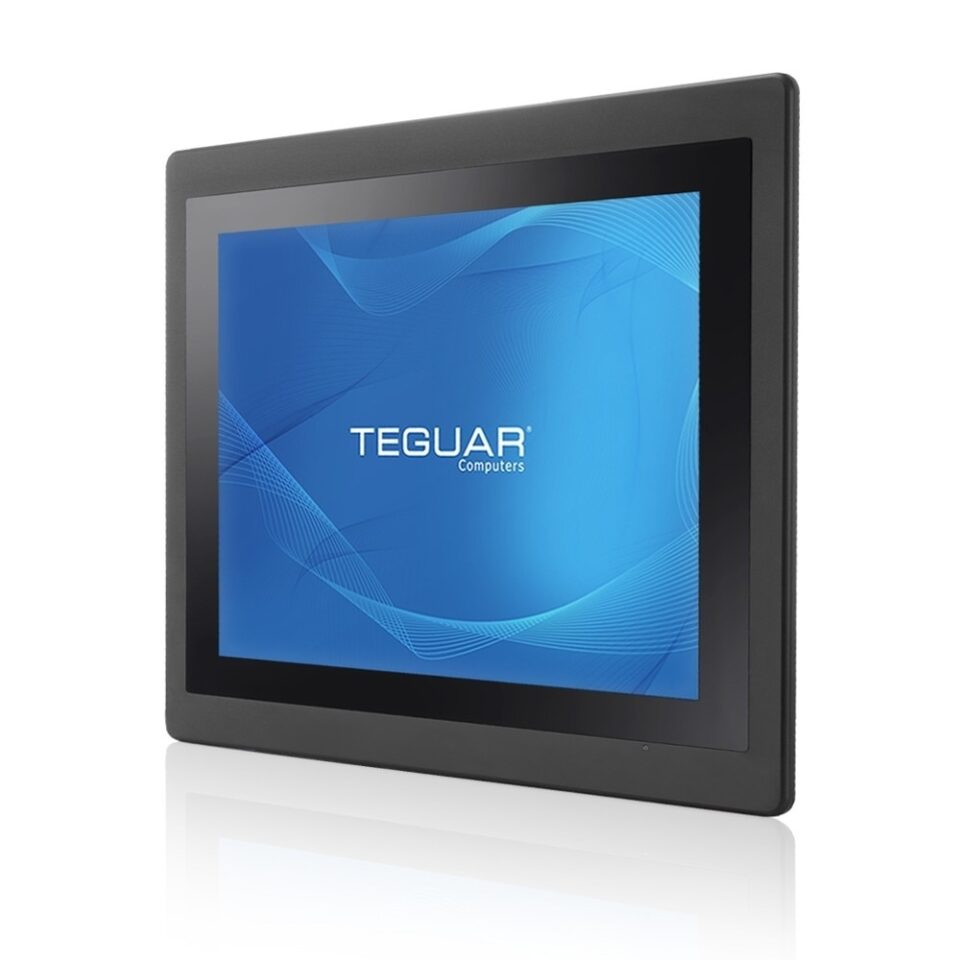

The TP-4010-15 Fanless Industrial Panel PC utilizes a 15" resistive touchscreen with an IP66 rated dust and waterproof front bezel. Featuring a versatile Bay Trail Celeron J1900 quad-core CPU with system on chip (SoC) architecture, this unit is a highly reliable addition to any application! This unit can be panel or VESA mounted allowing for rapid installation in your operations.

Key Highlights

  • 15" XGA Display with 1024 x768 Resolution
  • Bay Trail Celeron J1900 Quad-Core CPU
  • Highly Reliable Thermal Design for 24/7 Use
  • Resistive Touchscreen with IP66 Front Bezel
  • 2 Mini PCIe Sockets for add-on Expansion

Product Features

The TP-4010-15 features a 15" resistive touchscreen with a 4:3 screen ratio. It runs on an Intel Bay Trail Celeron J1900 quad-core CPU with system on chip (SoC) architecture. This computer is built with industrial-grade materials and will reliably run on your manufactring line, assembly line, or in your production facility.

What’s in the Box

    • Panel Mounting Clips
View warranty Information

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TP-4010-15 ios

Technical Drawings

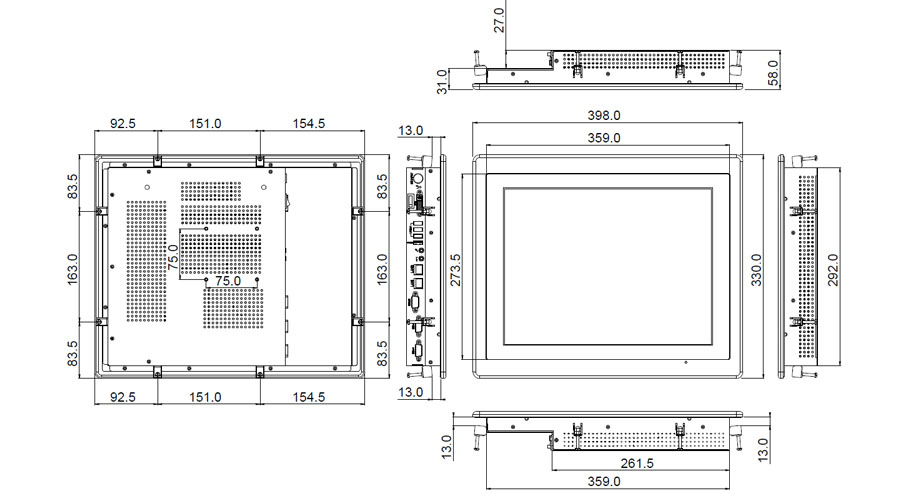

TP-4010-15 Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 15" XGA Display with 1024 x768 Resolution
  • Bay Trail Celeron J1900 Quad-Core CPU
  • Highly Reliable Thermal Design for 24/7 Use
  • Resistive Touchscreen with IP66 Front Bezel
  • 2 Mini PCIe Sockets for add-on Expansion

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model J1900 Quad Core
Processor Speed 2.0 GHz
Memory Type 2x DDR3L SO-DIMM
Memory Support 2GB, 4GB, 8GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 15"
Resolution 1024 x 768 (XGA)
Screen Ratio 4:3
Brightness 400 nits
Contrast Ratio 600:1
Viewing Angle 160º (H), 160º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive, Resistive

External I/O ports

USB 3x USB 2.0, 1x USB 3.0
Serial / Com 3x COM
Serial Protocol Detail 2x RS-232, 1x RS-232/422/485 (RS485 supports auto flow control)
Ethernet / LAN 2x RJ45 GbE LAN
Audio 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port 4-Pole DIN (latching)

Power

Input Voltage Range 7-32V DC
Max Power consumption 29.9W
Standard Power Adapter AC 90~264V / 47~63Hz / DC Output 12V, 57W

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security Hardware Optional TPM 2.0

Expansion Slots

Internal Mini PCIe 2x Mini-PCIe

Thermal and Environmental

Operating Temperature 0°C – 50°C
(32°F – 122°F)
Storage Temperature -20°C – 65°C
(-4°F – 149°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum, Optional Stainless Steel Bezel, Steel
Ip Rating IP66 Front Bezel
Mounting Options Panel Mount, VESA Mount

Peripherals & Wireless Connectivity

WiFi Optional WLAN

Dimensions / Weight

Weight 5.5 KG (12.1 lbs)
Dimensions 398 x 330 x 58 mm (15.7 x 13.0 x 2.3 in)

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet

Flush VESA Wall Mounting Kit

This Wall Mount Kit is compatible with most Teguar Industrial and Medical Computers screen sizes 10"...

Table Stand for VESA mount

Teguar's universal table stand is compatible with any computer with a VESA 75 or 100 mounting pattern....
