TS-4510-19

Available


Description

The TS-4510-19 has a 19” resistive or Pcap touchscreen and a full flat front bezel, meaning there are no crevices where debris and dirt can build up. The housing of this computer is fully sealed and made with corrosion-proof stainless steel. The TS-4510-19 is designed for food processing and repeated cleanings in washdown environments. It carries an IP66 / IP69K rating and has the option to be configured for IP67. This PC has 6x M12 I/O ports that seal out water and it comes with an IP68 rated power supply.

Key Highlights

  • 19” Full-Flat Touchscreen
  • Intel Apollo Lake J3455 Celeron CPU
  • IP66 / IP69K and Optional IP67
  • Fanless and Fully Sealed
  • M12 Metal Waterproof Connectors

Product Features

This PC can be upgraded with a 1000 nit high bright LCD with optical bonding for sunlight readability. The TS-4510-19 is designed with downward facing I/Os, so they are less likely to get hit during the workflow of a production floor and you can mount the PC flush to a wall. This computer comes with M12 metal I/O connectors, for a fully sealed solution and the power supply is rated IP68.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

Waterproof Computer with Labeled Inputs and Outputs

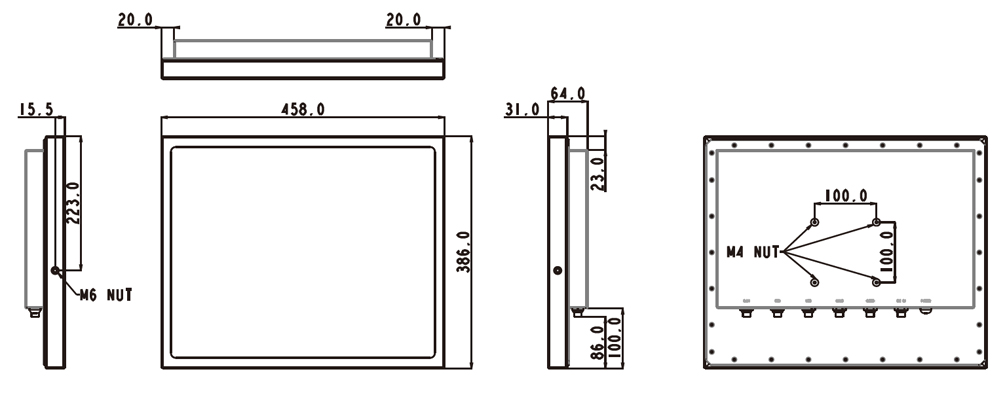

Technical Drawings

TS-5010-19 Technical Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 19” Full-Flat Touchscreen
  • Intel Apollo Lake J3455 Celeron CPU
  • IP66 / IP69K and Optional IP67
  • Fanless and Fully Sealed
  • M12 Metal Waterproof Connectors

Primary Components

Processor Family Intel Celeron Apollo Lake
Processor Model J3455 Quad Core
Processor Speed 1.5 GHz
Memory Type 1x DDR3L SO-DIMM
Memory Support 4GB, 8GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD, M.2
Storage support 32GB-1TB

Display

Screen Size 19"
Resolution 1280 x 800 (WXGA)
Screen Ratio 5:4
Brightness 350 nits, Optional 1000 nit High Brightness
Contrast Ratio 1000:1
Viewing Angle 160º (H), 170º (V)

Touch Screen

Touch Screen 5 Wire Resistive, Projected Capacitive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)
Hardness Resistive: 4H, P-cap: 7H

External I/O ports

USB 2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com 2x M12 8-pin for COM
Serial Protocol Detail 1x RS-232, 1x RS-232/422/485
Ethernet / LAN 1x M12 8pin RJ45 Gbe LAN
Power Input Port M12 type 5-PIN DC-in

Power

Input Voltage Range 9-32V DC
Max Power consumption 43W
Standard Power Adapter AC 100~240V / 47 ~ 63Hz, IP68, 60W

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro
Linux Linux

Compatibility

Security Hardware Optional TPM 2.0

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe
Internal M.2 1x M.2 Type E

Multimedia

Speakers Optional Speakers

Thermal and Environmental

Operating Temperature 0°C – 45°C
(32°F – 113°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material SUS304 Stainless Steel, Optional SUS316 Stainless Steel
Ip Rating IP66, IP69K, NEMA 4X, Optional IP67
Color Stainless Steel
Control Buttons Power Button
Mounting Options Table Mount, VESA 100 Mount, Wall Mount
Approved Cleaning Solutions Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid, Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol

Peripherals & Wireless Connectivity

WiFi Optional WiFi + Bluetooth Flat Antenna Kit
BlueTooth Optional Bluetooth 4.0
Barcode Scanner Optional 1D/2D Barcode Scanner

Dimensions / Weight

Weight 11 KG (24.3 lbs)
Dimensions 458 x 64 x 386 mm (18.0 x 2.5 x 15.2 in)

Certification

Certifications CE, FCC, VCCI Class B

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
