19" Stainless Steel Waterproof PC

Back to IP69K Waterproof PC | TS-4010 Series Series

TS-4010-19

Available


Description

The TS-4010-19 is an IP69K rated computer designed to be placed in pharmaceutical or food and beverage industry environments. This waterproof PC can withstand airborne particles and washdowns with hot water and high pressure sprays. The TS-4010-19 is manufactured with industrial grade components and has connectors made with M12 anti-corrosion metal. The Intel quad core processer is designed to work with software frequently used in the food and beverage industries such as ERP software and other software types where consistent live tracking of data is needed.  The TS-4010-19 has a fully flush screen, a very thin profile. The I/Os are tucked neatly under the enclosure which reduces cord management space needed. The TS-4010-19 provides you with a clear, elegant computer hardware solution in dirty and rugged environments.

Key Highlights

  • 19" 5:4 Ratio Touchscreen
  • Intel Celeron Quad Core Processor
  • NEMA 4X / IP66 / IP69K Stainless Steel Enclosure
  • Fully Sealed and Truely Fanless Design
  • M12 Metal I/O Connectors

Use Cases

Food and Beverage Manufacturing: The TS-4010 Series computers, with their IP69K and NEMA 4X ratings and M12 waterproof connectors, are specifically designed for the demanding environment of food and beverage manufacturing, providing a reliable computing solution for process monitoring, recipe management, and quality control.

Pharmaceutical Manufacturing: With their IP69K and NEMA 4X ratings, the TS-4010 Series computers are well-suited for pharmaceutical manufacturing environments, offering a robust computing solution for data monitoring, compliance tracking, and process automation in a controlled and hygienic setting.

Industrial Automation: The TS-4010 Series computers, designed for harsh environments, including food and beverage manufacturing, are suitable for industrial automation applications, providing a rugged platform for controlling and monitoring industrial processes and equipment.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

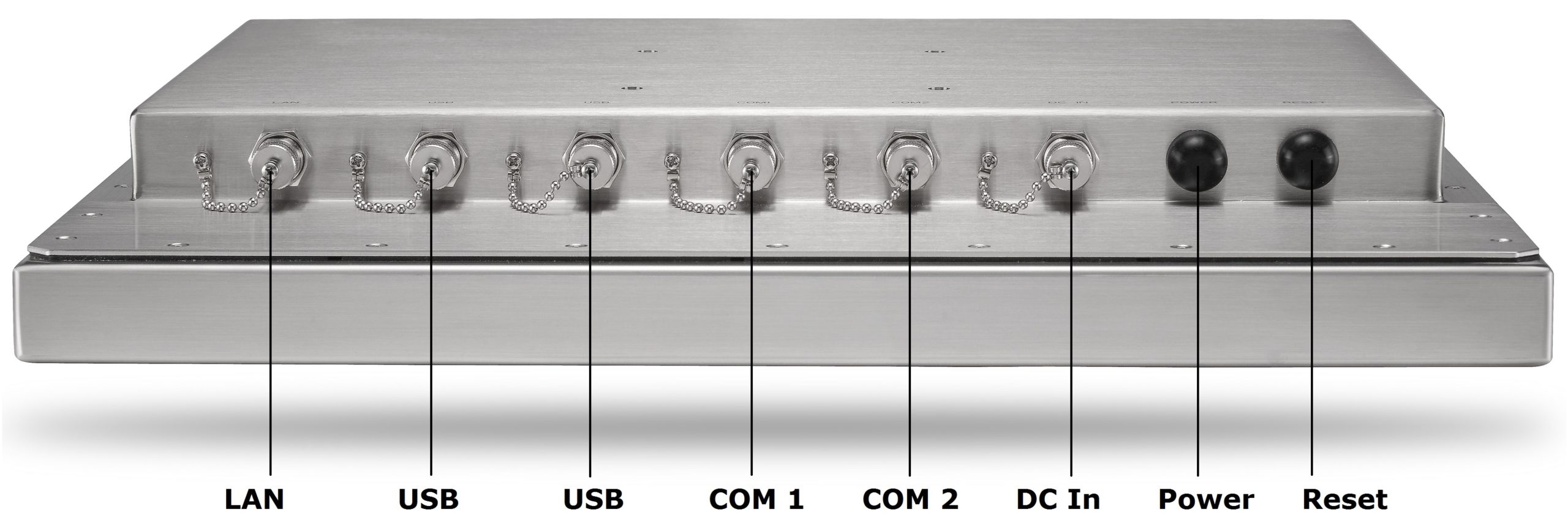

Stainless Steel Computer Inputs Outputs TS-4010-19

Technical Drawings

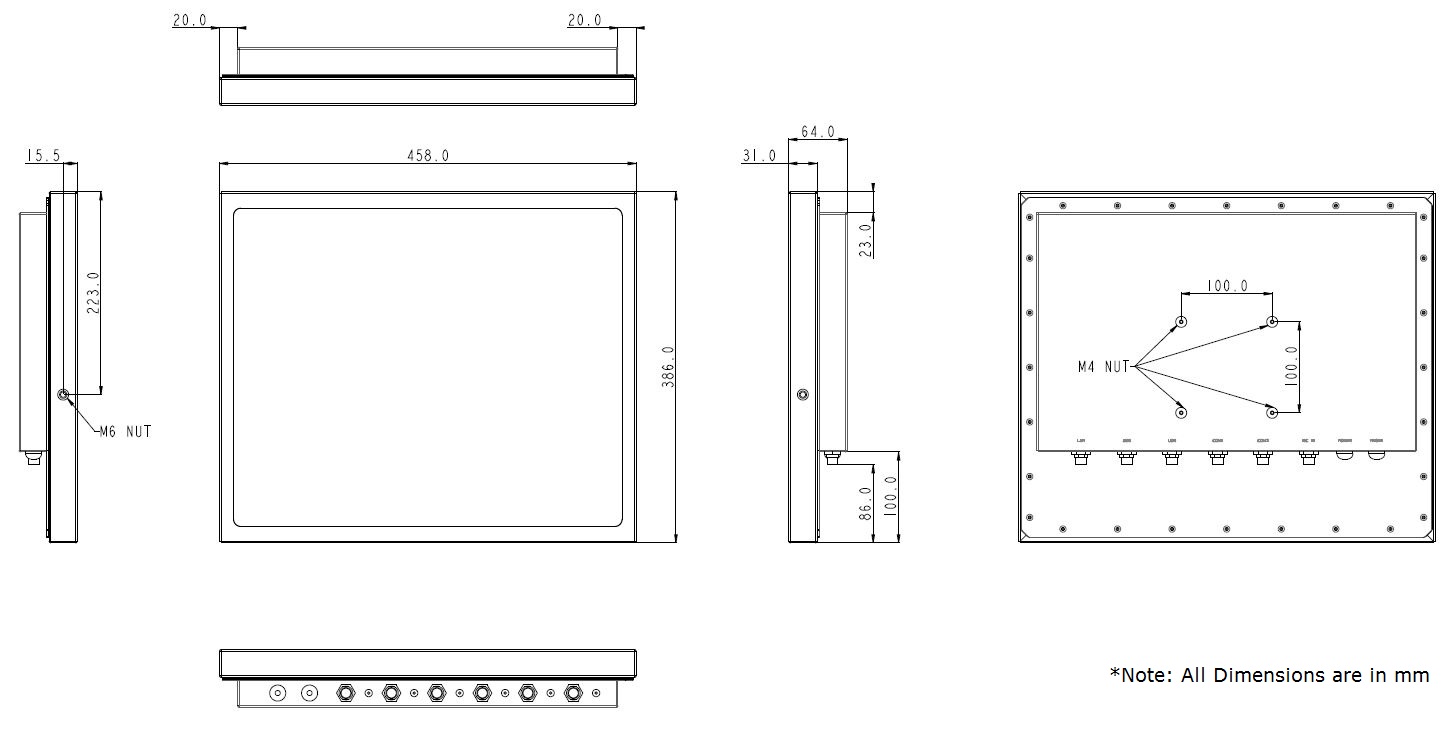

Stainless Steel Computer Technical Drawing TS-4010-19

TECH SPECS

See the data sheet

Key Highlights

  • 19" 5:4 Ratio Touchscreen
  • Intel Celeron Quad Core Processor
  • NEMA 4X / IP66 / IP69K Stainless Steel Enclosure
  • Fully Sealed and Truely Fanless Design
  • M12 Metal I/O Connectors

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model J1900 Quad Core
Processor Speed 2.0 GHz
Memory Type 2x DDR3L SO-DIMM
Memory Support 2GB, 4GB, 8GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 19"
Resolution 1280 x 1024 (SXGA)
Screen Ratio 5:4
Brightness 350 nits
Contrast Ratio 1000:1
Viewing Angle 170º (H), 160º (V)

Touch Screen

Touch Screen 5 Wire Resistive
Light Transmission 80±5%
Hardness Resistive: 4H, P-cap: 7H
Glass Thickness 2.4mm

External I/O ports

USB 2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com 2x M12 8-pin for COM
Serial Protocol Detail RS-232
Ethernet / LAN 1x M12 8pin RJ45 Gbe LAN
Power Input Port M12 type 5-PIN DC-in

Power

Input Voltage Range 7-32V DC
Max Power consumption 35W
Standard Power Adapter AC 100~240V / 47 ~ 63 Hz, IP68, 60W

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security Hardware Optional TPM 2.0

Expansion Slots

Internal Mini PCIe 2x Mini-PCIe
video card support Intel HD Graphics

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material SUS304 Stainless Steel
Ip Rating IP66, IP69K, NEMA 4X, Optional IP67
Color Stainless Steel
Control Buttons Power Button, Power Reset
Mounting Options Table Mount, VESA 100 Mount, Wall Mount
Approved Cleaning Solutions Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol
Cleaning Instructions View instructions here

Peripherals & Wireless Connectivity

WiFi Optional Bluetooth kit and WLAN with External Antenna

Dimensions / Weight

Weight 11 KG (24.3 lbs)
Dimensions 458 x 64 x 386 mm (18.0 x 2.5 x 15.2 in)

Certification

Certifications CE, FCC Class A, VCCI

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
