Home Industrial Panel PCs | TP-3445 Series

Industrial Panel PCs | TP-3445 Series

Series picture of the TEGUAR TP-3445 Industrial Panel PCs Series

About the Series

The TP-3445 Series is built with durable die-cast aluminum and these computers have IP66 rated waterproof front bezels. They run on the Intel Apollo Lake Quad Core CPU and have wide range DC power input of 9~36V. These panel PCs can be configured with a variety of different expansion boards that include additional IO such as Mini-PCIe, SIM slot for Cellular, USB and COM. These computers also support Power over Ethernet (screen sizes from 10.1" - 15.6") and can have an optional internal backup battery (screen sizes 10.1" and up). You can choose a projected capacitive or resistive touchscreen, and the TP-3445 Series has the option for a high bright, sunlight readable LCD. These PCs are built to last and we’re committed to supporting and selling this series at least 2030, so you don’t need to worry about hardware changes interrupting your workflow.

Read the Series Review from RuggedPCReview >

Key Series Features

  • Available in screen sizes from 7-22”
  • Intel Apollo Lake N4200 Quad Core CPU
  • Die-cast Aluminum Housing & IP66 Front
  • Accessable Storage Bay
  • Optional Power over Ethernet*
Need Assistance?
Contact Us

Series Features

Easily Customize Inputs/Outputs

Teguar offers a variety of expansion boards that fit into the TP-3445 series, making it easy to add additional IOs. Options include: 4 additional USB ports, 2 additional COM ports, a power button, isolated RS-422 ports, an additional LAN port, and a Mini-PCIe slot for unique IO needs. Contact us to discuss your project, and we’ll work with you to configure the best solution. (10” screen size and larger)

Aluminum Die-Cast Housing

The TP-3445 series is built for harsh environments, such as manufacturing plants and production lines, where consumer-grade computers wouldn’t hold up for the expected 5-7 year lifespan of this model. These computers can withstand high and low temperatures, machine vibration, dust and air particles, and 24/7 runtime. The Die-Cast housing is stronger than stamped metal, so it will handle impacts and protect its internals better than the competition, while also being a better conductor of heat.

Daughterboard Options for Teguar TP-3445 Series

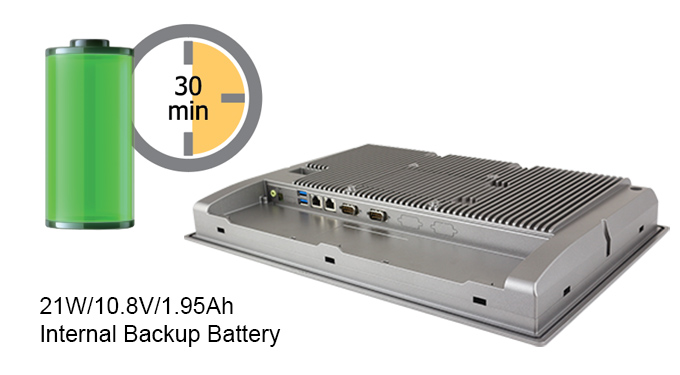

Uninterrupted Power Supply (UPS)

An optional built in battery allows up to 30 minutes of operation after primary power loss. In the event of an unexpected power outage, you will have time to properly save data and power off your computers. The battery is housed inside of the unit, so no additional space is taken up with this option. (10” screen size and larger, battery cannot coexist with PoE)

Long term Support from Teguar

We commit to producing and providing support for the TP-3445 Series until at least 2030. This means less risk of unexpected hardware changes interrupting your work, and no need to validate and spec in multiple models over the next decade. If the unit works well for you, we want to keep it that way, for a long time.

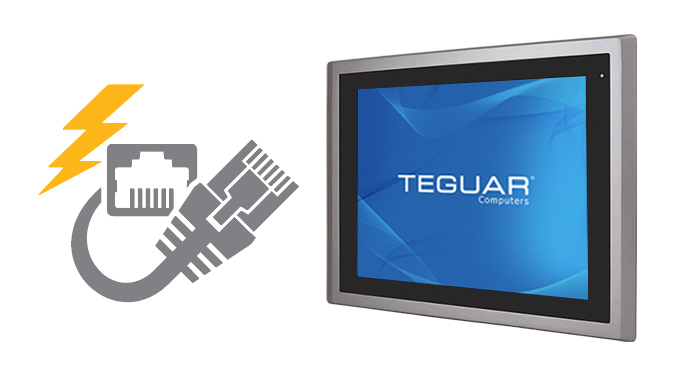

Power over Ethernet

PoE eliminates the need to run a power cord to each unit or install a power outlet near each unit. This is useful if you have a large facility and want to reduce wiring. PoE simplifies the instillation process and can save you cost and time.

*PoE Available on screen sizes from 10.1" to 15.6"

Flexible Performance in a Consistent Chassis

Teguar’s TP-3445 Series has the exact same housing as our TP-2945 Series, but with the newer Apollo Lake CPU. The upgraded CPU is up to 25% faster in multi-threaded applications and 60% faster in single threaded applications, allowing you to run more intensive software programs. It also has a higher heat tolerance and a higher burst frequency, allowing it to perform smoother during short periods of intense calculations.

If you need more power, our TP-5045 series has the same housing and runs on the Intel Skylake Core i series.  Teguar is committed to making updates seamless for our customers by using the same chassis design over many generation of product.

Products in this Series

Model TP-3445-07

7” Industrial Panel PC

  • 7” TFT-LCD Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Die-cast Aluminum Housing
Model TP-3445-08

8” Panel Mount Computer

  • 8” Pcap or Resistive Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Fanless Design and Aluminum Housing
Model TP-3445-10

10” Fanless Panel PC

  • 10.1” LCD Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Easily Accessable Storage Bay
Model TP-3445-12

12” Industrial Panel PC

  • 12.1” Touchscreen & IP66 Front Bezel
  • Intel Apollo Lake N4200 Quad Core CPU
  • Rugged Die-cast Aluminum Housing
Model TP-3445-15

15” Fanless Industrial Computer

  • 15” Pcap or Resistive Touch Screen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Die-cast Aluminum Housing & IP66 Front
Model TP-3445-16

16” Panel Mount PC

  • 15.6” TFT-LCD Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Optional Wide Temp & High Brightness
Model TP-3445-17

17” Panel Mount PC

  • 17” TFT-LCD with 4:3 Screen Ratio
  • Intel Apollo Lake N4200 Quad Core CPU
  • IP66 Front Bezel & Aluminum Housing
Model TP-3445-18

18” Touch Panel PC

  • 18.5” Pcap or Resistive Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Die-cast Aluminum Housing
Model TP-3445-19

19” Industrial Panel PC

  • 19” TFT-LCD with 4:3 Screen Ratio
  • Intel Apollo Lake Quad Core Processor
  • Aluminum Housing & IP66 Front Bezel
Model TP-3445-22

22” Panel Mount Computer

  • 21.5” Resistive or Pcap Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Die-cast Aluminum Housing
