19" Waterproof Computer with Sealed Conduit

Back to IP69K Computers | TSC-5010 Series Series

TSC-5010-19

Available

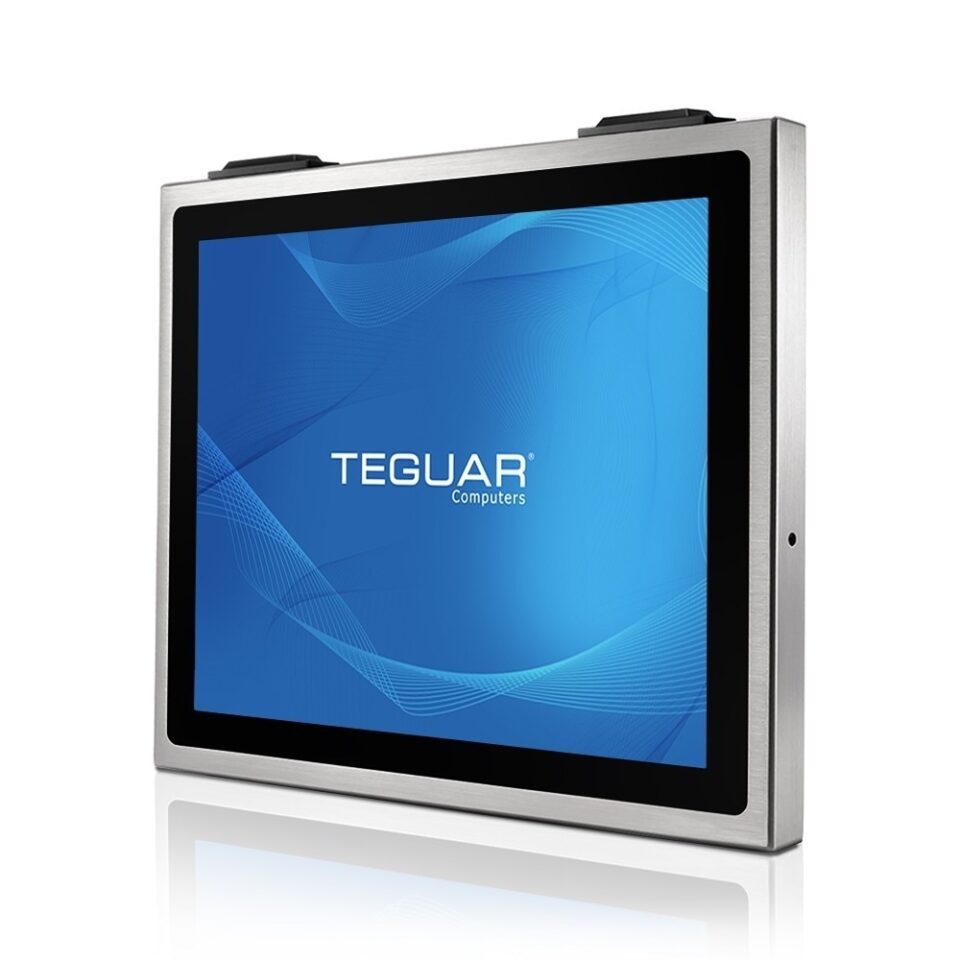

Waterproof Cable Gland Computer | TSC-5010-19
19" Stainless Steel Computer | TSC-5010-19
19" Stainless Steel PC | TSC-5010-19
TSC-5020-19 Cable Gland Module
TSC-5010-19 with Cable Gland
TSC-5010-19 Waterproof Cable Gland
Waterproof Cable Gland Computer | TSC-5010-19
19" Stainless Steel Computer | TSC-5010-19
19" Stainless Steel PC | TSC-5010-19
TSC-5020-19 Cable Gland Module
TSC-5010-19 with Cable Gland
TSC-5010-19 Waterproof Cable Gland

Description

This stainless steel computer has IP66/IP69K rated housing, to withstand high-pressure, high-temperature waterjets, commonly used in food and beverage processing, pharmaceutical manufacturing, and other clean room environments. Teguar’s TSC-5010-19 has a sealed I/O design that allows you to use standard cables with the I/O ports. So you don’t need custom M12 cables and none of the I/O connections are exposed. This PC also has a 19” touchscreen available in resistive or P-Cap touch, and with high brightness and optical bonding. The TSC-5010-19 runs on an Intel 6th Gen Core i5 CPU and has the option for TPM 2.0 hardware security.

Key Highlights

  • 19" Resistive or PCap Touchscreen
  • 6th Gen Intel Core i5 CPU
  • Cable Gland for Sealed I/O Connections
  • Fully Waterproof, Fanless Design
  • IP66, IP69K, Optional IP67
GET A DEMO GET A QUICK QUOTE

Product Features

The TSC-5010-19 has a sealed I/O design that allows you to use standard cables with the I/O ports. So you don’t need custom M12 cables and none of the I/O connections are exposed.This design allows this computer to have more I/O ports than most waterproof computers. This PC has a 19” touchscreen with a 4:3 screen ratio and 1280 x 1024 (SXGA) resolution. The TSC-5010-19 also has the option for TPM 2.0 hardware security.

What’s in the Box

    • Cable Gland set for common cable diameters
View warranty Information
View all features in the series See the data sheet

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

Inputs and Outputs of Teguar's Cable Gland Computer

Technical Drawings

TSC-5010-19 Technical Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 19" Resistive or PCap Touchscreen
  • 6th Gen Intel Core i5 CPU
  • Cable Gland for Sealed I/O Connections
  • Fully Waterproof, Fanless Design
  • IP66, IP69K, Optional IP67

Primary Components

Processor Family Intel Core I series 6th Generation Skylake
Processor Model Core i5-6200U
Processor Speed 2.3 GHz
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 19"
Resolution 1280 x 1024 (SXGA)
Screen Ratio 5:4
Brightness 350 nits, Optional 1000 nit High Brightness
Contrast Ratio 1000:1
Viewing Angle 170º (H), 160º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission 80±5%
Hardness 3H

External I/O ports

USB 4x USB 3.0
Serial / Com 2x COM
Serial Protocol Detail 1x RS-232, 1x RS-232/422/485 (Jumperless configuration in BIOS)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 2x DisplayPort
Audio 1x Audio Line-Out
Power Input Port M12 type 5-PIN DC-in

Power

Input Voltage Range 7-32V DC
Max Power consumption 69.2W
Standard Power Adapter AC 100 ~ 240V / 47 ~ 63 Hz / DC Output 12V, IP68, AC Cable 2130MM

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security Hardware Optional TPM 2.0

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe
Internal M.2 1x M.2 Type E

Multimedia

Speakers Optional Speaker

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material SUS304 Stainless Steel, Optional SUS316 Stainless Steel
Ip Rating IP66, IP69K, Optional IP67
Color Stainless Steel
Control Buttons Power Button
Mounting Options Table Mount, VESA 100 Mount, Wall Mount
Approved Cleaning Solutions Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol
Cleaning Instructions View instructions here

Peripherals & Wireless Connectivity

WiFi Optional WiFi + Bluetooth Flat Antenna Kit
Barcode Scanner Optional 1D/2D Barcode Scanner

Dimensions / Weight

Weight 16.3 KG (35.9 lbs)
Dimensions 458 x 396 x 105 mm (18.0 x 15.6 x 4.1 in)

Certification

Certifications CE, FCC, VCCI Class B

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
