TS-5610-24

Available


Description

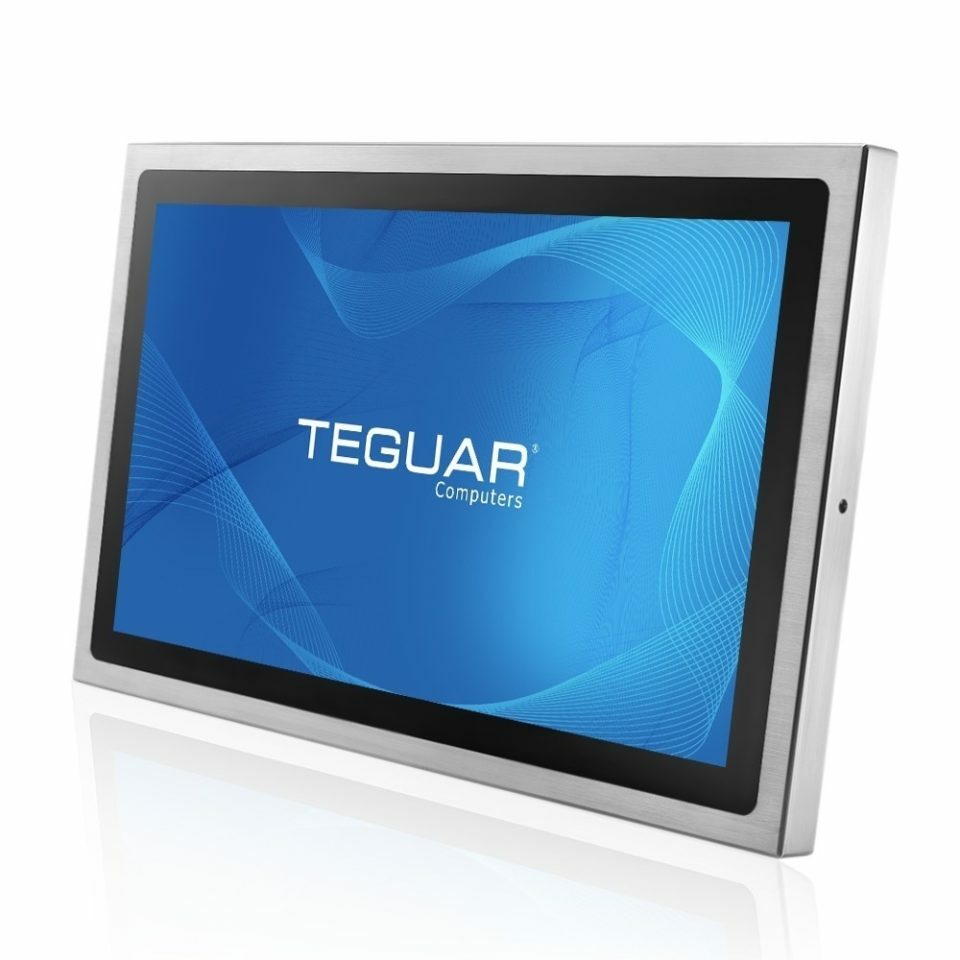

The TS-5610 Stainless Steel Core i Series's largest offering is the TS-5610-24, which features a 23.8" LCD HD touchscreen in addition to all the standard aspects of the series. The TS-5610-24 has fully waterproof IP67 / IP69K stainless steel housing which includes the I/Os, A LAN port, 4 USB ports, 2 COM ports, and a DC-in. Perhaps most impressive of all is the TS-5610-24's 8th Gen Whiskey Lake Intel CPU, which is powerful enough to run Windows 11 if desired. With available options including WiFi, a barcode reader, external speakers and more, this unit (or a fleet of them) will fit perfectly into your cleanroom, food and beverage, or pharma processing plant.

Key Highlights

  • Comes installed with Windows 11 (upon request)
  • 23.8" LCD Touchscreen
  • 8th Gen Intel Whiskey lake Core i3/i5/i7 CPU
  • Full IP66 and IP69K with Optional IP67
  • Flat Wireless BT/WiFi Antenna
  • Full HD Resolution Widescreen 1920 x 1080 Touchscreen Display

Use Cases

Food and Beverage Manufacturing: The TS-5610 Stainless Steel Core i Series, with its fully sealed stainless steel housing and optional waterproof features, is well-suited for demanding environments in the food and beverage manufacturing industry, providing reliable computing solutions for process control, recipe management, and quality assurance.

Industrial Automation: The TS-5610 Stainless Steel Core i Series, with its customizable options and compatibility with Windows 11, is ideal for industrial automation applications. It can be configured to meet specific control and monitoring needs, providing reliable and high-performance computing for manufacturing processes.

Cleanroom Applications: With its sealed stainless steel housing and the ability to include optional waterproof features, the TS-5610 Series is well-suited for cleanroom environments, providing contamination-resistant computing for critical tasks in industries such as semiconductor manufacturing and biotechnology.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

Inputs and outputs of Teguar's TS-5610-24 Stainless Steel Computer

Technical Drawings

TECH SPECS

See the data sheet

Key Highlights

  • Comes installed with Windows 11 (upon request)
  • 23.8" LCD Touchscreen
  • 8th Gen Intel Whiskey lake Core i3/i5/i7 CPU
  • Full IP66 and IP69K with Optional IP67
  • Flat Wireless BT/WiFi Antenna
  • Full HD Resolution Widescreen 1920 x 1080 Touchscreen Display

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Core I series 8th Generation Whiskey Lake-U
Processor Model Core i5-8365UE
Processor Speed Up to 4.1 GHz
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 23.8"
Resolution 1920 x 1080 (Full HD)
Screen Ratio 16:9
Brightness 250 nits
Contrast Ratio 3000:1
Viewing Angle 178º (H), 178º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive
Light Transmission >85%
Hardness > 7H

External I/O ports

USB 2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com 2x M12 8-pin for COM
Serial Protocol Detail RS-232/422/485
Ethernet / LAN 1x M12 8pin RJ45 Gbe LAN
Power Input Port M12 type 5-PIN DC-in

Power

Input Voltage Range 19-28V DC
Standard Power Adapter AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68

Operating Systems

Windows Windows 11, Windows 10 IoT, Windows 10 Pro

Compatibility

Security Hardware Optional TPM 2.0, Supports Intel Vpro

Expansion Slots

Internal M.2 1x M.2 for NVME SSD Support

Multimedia

Speakers Optional Speakers

Thermal and Environmental

Operating Temperature 0°C – 40°C (With HDD), 0°C – 50°C (With SSD)
(32°F – 104°F (With HDD), 32°F – 122°F (With SSD))
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material SUS304 Stainless Steel, Optional SUS316 Stainless Steel
Ip Rating IP66, IP69K, NEMA 4X, Optional IP67
Color Stainless Steel
Control Buttons Power Button
Mounting Options Side Mount, VESA 100 Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi Optional Wi-Fi 802.11 a/b/g/n/ac
BlueTooth Optional Bluetooth 5.1
Barcode Scanner Optional 1D/2D Barcode Scanner

Dimensions / Weight

Weight 14.8 KG (32.6 lbs)
Dimensions 626.6 x 396.1 x 64.0 mm (24.7 x 15.6 x 2.5 in)

Certification

Certifications CE, FCC, VCCI Class B

Warranty

Warranty Up to 5 Years

Filters

Main Category Filter Industrial Computer

Accessories

See the data sheet
