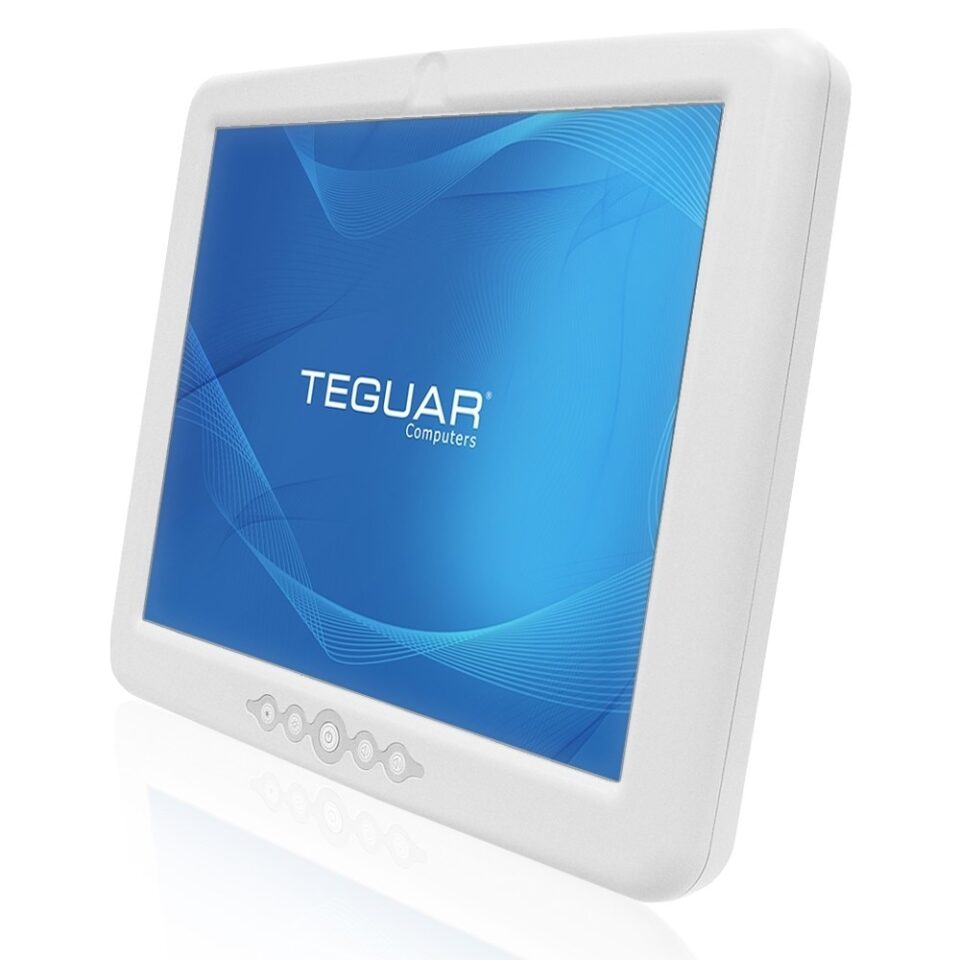

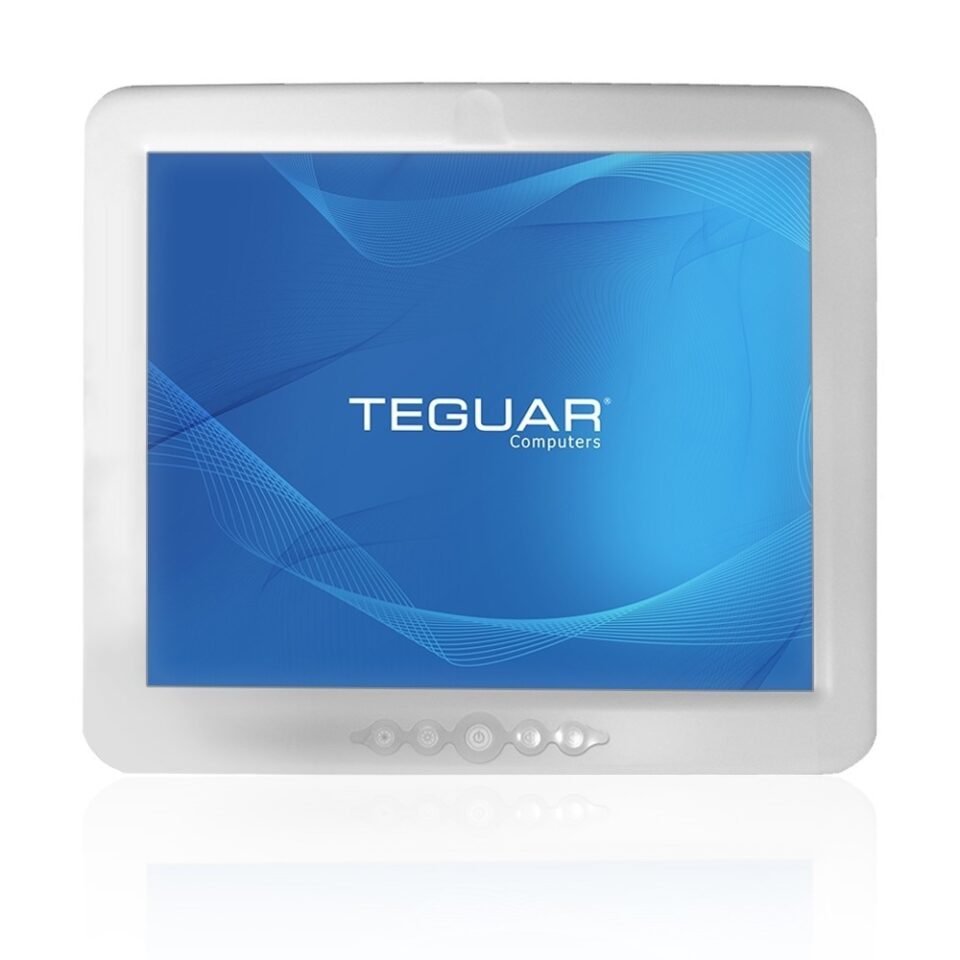

TM-5010-17F

Available


Description

The TM-5010-17F medical computer has taken every consideration into account for seamless digital care. This medical PC is 60601-1 4th edition certified and it's easy to clean anti-bacteria front bezel is IP65 rated. The TM-5010-17F has the highest level of medical safety protection with a low-noise smart fan. Equipped with a high performance 6th Gen Intel Core i3/i5/i7 processor, this PC has a socket type 35W CPU allowing it to deliver fast graphics and keep up with demanding medical software. Intel integrated HD graphics and a wide range of customizable options allow for the optimal computing solution to support your medical team.

Key Highlights

  • 17" Resistive Touch Screen with 5:4 Screen Ratio
  • Intel Skylake Core i3/i5/i7 & Pentium CPU
  • PCI-E Expansion Slot
  • Optional 4KV LAN/COM/USB Isolated I/O
  • Supports Intel vPro Hardware Security & TPM v2.0
  • 60601-1 4th Edition Certified

GET A QUICK QUOTE

Product Features

The TM-5010-17F medical computer runs on the 6th Gen Intel Core i3/i5/i7 processor, and it has a socket type 35W CPU allowing it to deliver fast graphics and keep up with demanding medical software. This PC has a unique 5:4 screen ratio, necessary for certain medical software programs, and it has a resistive touchscreen, needed in some X-Ray and other medical imaging rooms.

Dimesional Drawings & I/Os

See the data sheet

Inputs / Outputs

Healthcare Computer IOs TM-5010-17F

Technical Drawings

17

TECH SPECS

See the data sheet

Key Highlights

  • 17" Resistive Touch Screen with 5:4 Screen Ratio
  • Intel Skylake Core i3/i5/i7 & Pentium CPU
  • PCI-E Expansion Slot
  • Optional 4KV LAN/COM/USB Isolated I/O
  • Supports Intel vPro Hardware Security & TPM v2.0
  • 60601-1 4th Edition Certified

Primary Components

Processor Family Intel Core I series 6th Generation Skylake/i7 and Pentium
Processor Model Core i7-6500U
Processor Speed 2.5 GHz
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 17"
Resolution 1280 x 1024 (SXGA)
Screen Ratio 5:4
Brightness 350 nits
Contrast Ratio 1000:1
Viewing Angle 170º (H), 160º (V)
Number of Colors Supported 16.2M

Touch Screen

Touch Screen 5 Wire Resistive
Light Transmission 81±3%
Hardness > 3H

External I/O ports

USB 4x USB 3.0
Serial / Com 2x COM
Serial Protocol Detail 1x RS-232, 1x RS-232/422/485
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x DisplayPort, 1x DVI
Other Ports 4KV Isolation Option is 2x ISO COM, 1x ISO LAN, 1x ISO USB 2.0
Audio 1x Audio Line-Out, 1x 3.5mm Microphone Jack

Power

Max Power consumption 82.6W
Standard Power Adapter AC 90V~240V / 47~63 Hz

Battery

Type Optional Internal Battery
Quantity 1x Optional Battery

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security Hardware Optional TPM 2.0, Optional VPro

Expansion Slots

Internal Mini PCIe 2x Mini-PCIe
PCIe Slot Yes
PCIe Expansion Details 1x PCI-E (x16)
video card support Intel Integrated HD Graphics 530

Multimedia

Speakers 2x 2W Speakers
Camera Optional 3.2MP Webcam
Microphone Optional Microphone built-in to I/O cover

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Active – with Fan

Enclosure

Material Plastic
Ip Rating IP65 Front Bezel
Color White
Antibacterial Housing Yes
Control Buttons Audio Down, Audio Up, Brightness Down, Brightness Up, Power Button
Mounting Options Desktop Stand, VESA Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi Optional Wireless or Wireless + Bluetooth kit

Dimensions / Weight

Weight 7 KG (15.4 lbs)
Dimensions 420 x 360 x 83 mm (16.5 x 14.2 x 3.3 in)

Certification

Certifications 60601-1 4th Edition, CE, FCC Class B, VCCI

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
