15" Waterproof PC with Sealed Cable Gland

Back to TSC-5010 Series | IP69K Waterproof PC Series

TSC-5010-15

Available


Description

The TSC-5010-15 is a fully waterproof computer running on an Intel Core i5 CPU. Teguar’s unique cable gland design allows you to plug in standard cables to the I/O ports and maintain a fully waterproof system. This means the computer does not require custom M12 cables and it has no exposed connectors. The 15” touchscreen is available in resistive or P-Cap touch and has a 4:3 aspect ratio, which is required for certain HMI and SCADA software. This PC can also be upgraded to 1000 nit high brightness with optical-bonding, for use outdoors or under bright overhead lights. The TSC-5010-15 can be VESA mounted onto a machine, mobile cart, or arm, or it can be yoke mounted to the wall or a desktop stand. This computer is made for food and beverage manufacturing, pharmaceutical production, and other cleanroom applications.

Key Highlights

  • 15" P-Cap or Resistive Touchscreen
  • Intel Core i5 Dual-Core CPU
  • Sealed IO Design for Standard Cables
  • IP66, IP69K, Optional IP67
  • Optional Barcode Reader

GET A QUICK QUOTE

Product Features

The TSC-5010-15 is a fully waterproof computer and it does not require custom M12 cables. It has a 15” touchscreen with a 4:3 aspect ratio and 1024 x 768 (XGA) screen resolution. The custom cable gland design allows this computer to hold more I/Os than most waterproof computers. The TSC-5010-15 has optional built in speakers and an optional barcode scanner.

Dimesional Drawings & I/Os

See the data sheet

Inputs / Outputs

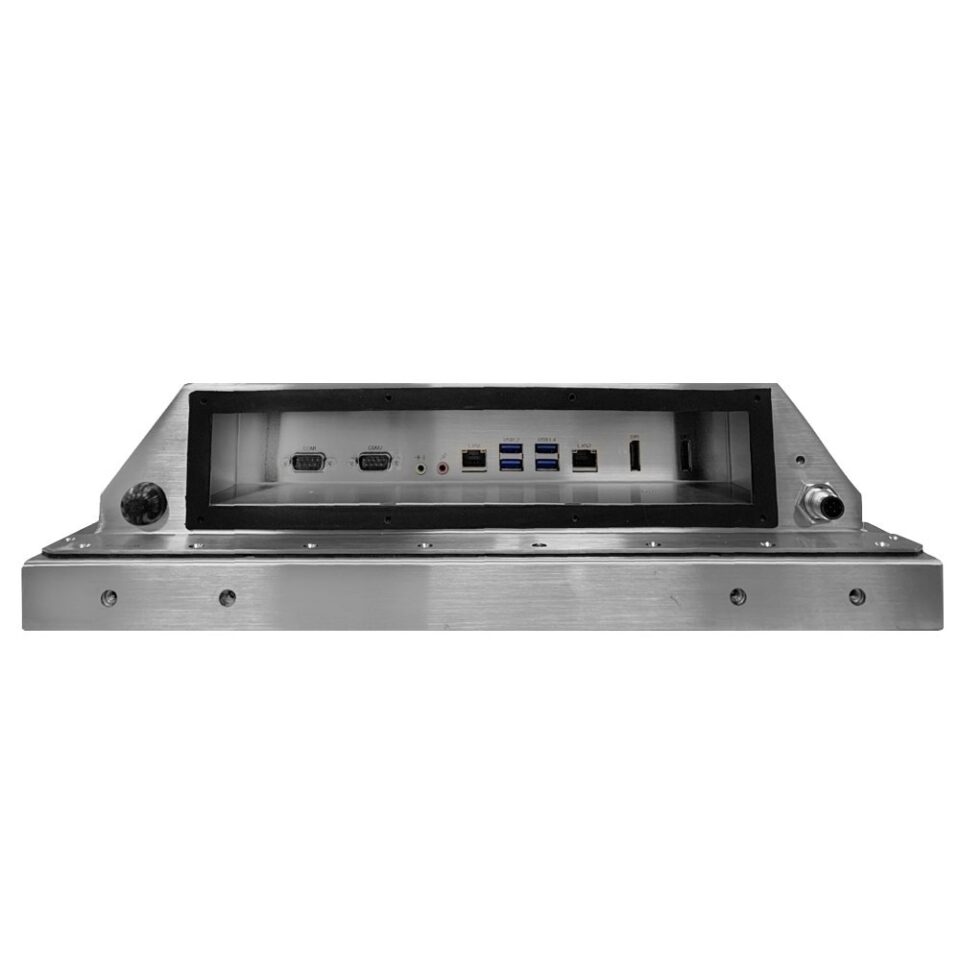

Inputs and Outputs of Teguar's Cable Gland Computer

Technical Drawings

TSC-5010-15 Tech Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 15" P-Cap or Resistive Touchscreen
  • Intel Core i5 Dual-Core CPU
  • Sealed IO Design for Standard Cables
  • IP66, IP69K, Optional IP67
  • Optional Barcode Reader

Primary Components

Processor Family Intel Core I series 6th Generation Skylake
Processor Model Core i5-6200U
Processor Speed 2.3 GHz
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 15"
Resolution 1024 x 768 (XGA)
Screen Ratio 4:3
Brightness Optional 1000 nit High Brightness
Contrast Ratio 600:1
Viewing Angle 160º (H), 160º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission 80±5%
Hardness 4H

External I/O ports

USB 4x USB 3.0
Serial / Com 3x COM
Serial Protocol Detail 2x RS-232, 1x RS-232/422/485 (RS485 supports auto flow control, Jumperless configuration in BIOS)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 2x DisplayPort
Audio 1x Audio Line-Out
Power Input Port M12 type 5-PIN DC-in

Power

Input Voltage Range 7-32V DC
Max Power consumption 52.9W
Standard Power Adapter AC 100 ~ 240V / 47 ~ 63 Hz / DC Output 12V, IP68, AC Cable 2130MM

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security Hardware Optional TPM 2.0

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe
Internal M.2 1x M.2 Type E

Multimedia

Speakers Optional Speaker

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material SUS304 Stainless Steel, Optional SUS316 Stainless Steel
Ip Rating IP66, Optional IP67, IP69K
Color Stainless Steel
Control Buttons Power Button
Mounting Options Table Mount, VESA 100 Mount, Wall Mount
Approved Cleaning Solutions Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol
Cleaning Instructions View instructions here

Peripherals & Wireless Connectivity

WiFi Optional WiFi + Bluetooth Flat Antenna Kit
Barcode Scanner Optional 1D/2D Barcode Scanner

Dimensions / Weight

Weight 8.4 KG (18.5 lbs)
Dimensions 395 x 310 x 105 mm (15.6 x 12.2 x 4.1 in)

Certification

Certifications CE, FCC, VCCI Class B

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
