15" Eclipse Panel PC

TP-3493-15

Available - Contact Us for Lead Time Details

Front view of the Teguar 15-inch Eclipse Panel PC

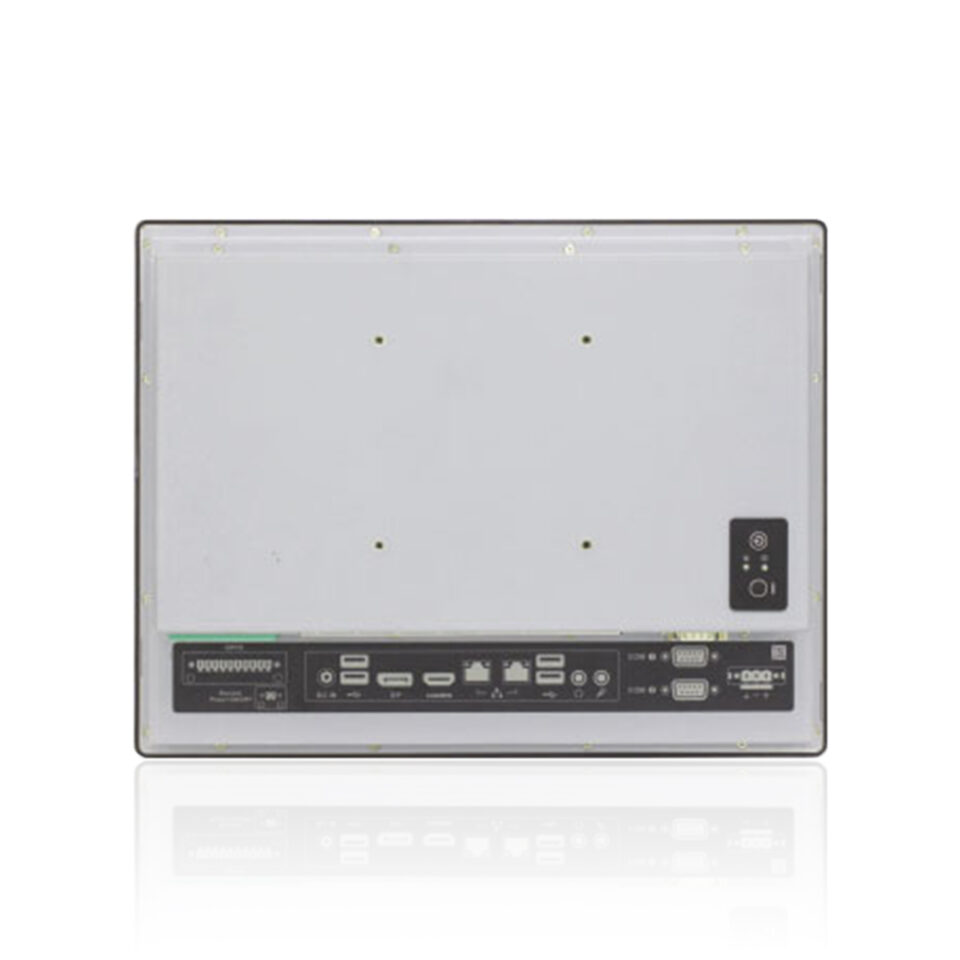

Back view of the Teguar 15-inch Eclipse Panel PC
Bottom view of the Teguar 15-inch Eclipse Panel PC's inputs and outputs
Front view of the Teguar 15-inch Eclipse Panel PC
Back view of the Teguar 15-inch Eclipse Panel PC
Bottom view of the Teguar 15-inch Eclipse Panel PC's inputs and outputs

Description

This 15" low-cost panel PC is Teguar’s offering for project managers who need a mid-sized industrial pc but don’t have the budget for full-priced solutions. With a steel chassis and IP65 rated waterproof front bezel, this rugged computer is built to withstand the rigors of an industrial environment, operating without issue in temperatures as low as -20°C and as high as 60°C. Up to 8 GB of RAM and an Intel Celeron Apollo Lake processor make the TP-3493-15 suitable for simple tasks such as browser-based connection to cloud-based ERP system or data entry into your manufacturing software platform, and an internal expansion slot makes adding optional WiFi functionality a breeze.

>> Read an independent review of the TP-3493-15 on ruggedpcreview.com

Key Highlights

  • Full Metal Construction
  • Intel Celeron Apollo Lake Processor
  • 64GB – 1TB Storage Available
  • Projected Capacitive Touchscreen
  • IP65 Rated Front Bezel
  • Fanless Cooling System
GET A DEMO GET A QUICK QUOTE

starting at

$1,060.00

CUSTOMIZE & BUY

Use Cases

Manufacturing: Improve manufacturing processes with Teguar's 15" panel PC. Its robust design ensures reliability in harsh conditions, facilitating seamless integration into production lines for data logging and monitoring.

Warehouse Management: Streamline warehouse operations affordably with Teguar's 15" panel PC. Its durability and expandability enable smooth integration into existing systems for optimized inventory control.

What’s in the Box

    • TP-3493-15
    • AC/DC Power Adapter, US + EU Power Cord
    • 3 pin Terminal Block Power Connector
    • 10 pin Terminal Male Connector
    • Panel Mounting Clips with Screws
See the data sheet Warranty Download Drivers

Dimensional Drawings & I/Os

See the data sheet

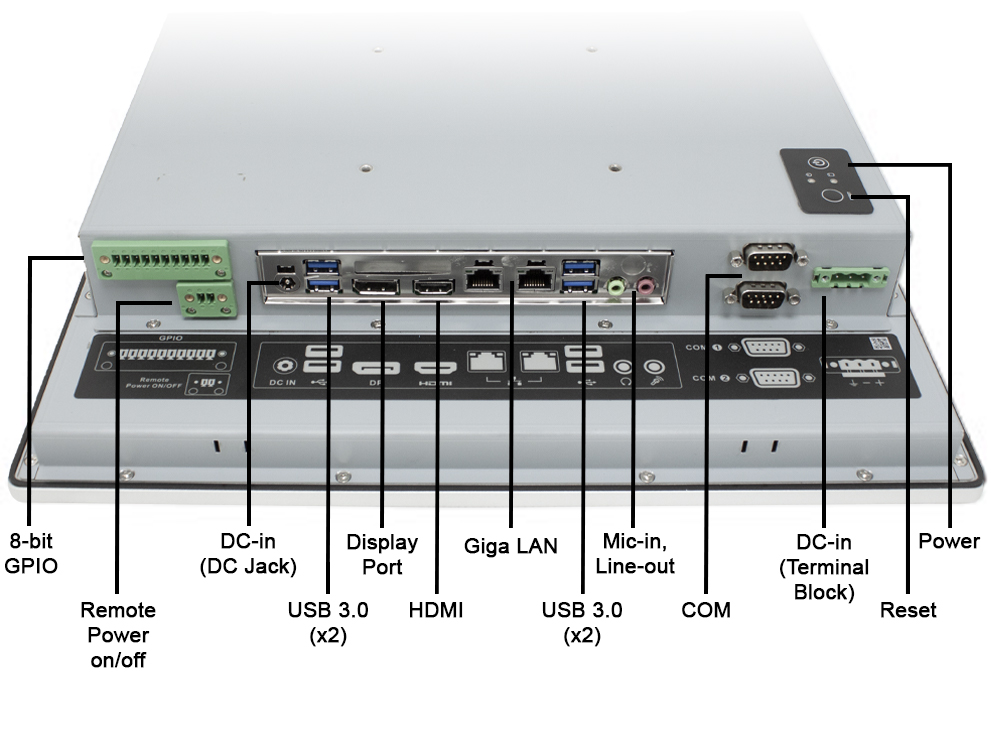

Inputs / Outputs

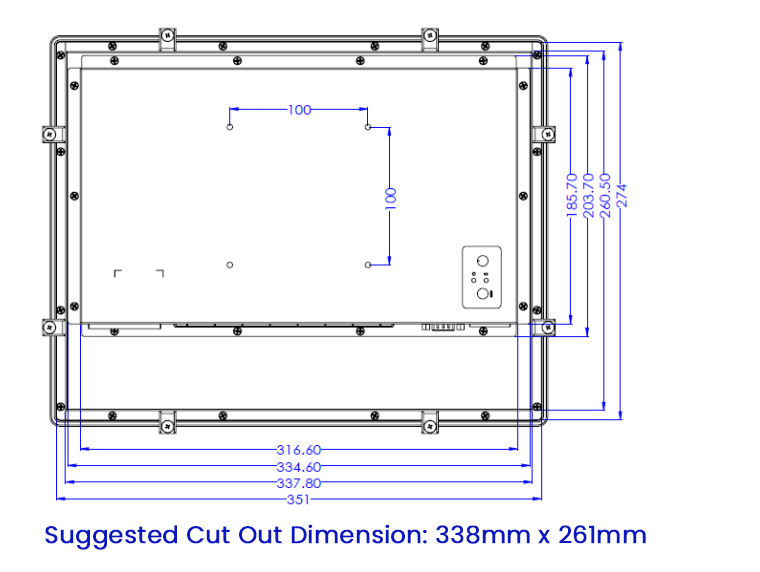

Technical Drawings

TECH SPECS

See the data sheet Download Drivers

Key Highlights

  • Full Metal Construction
  • Intel Celeron Apollo Lake Processor
  • 64GB – 1TB Storage Available
  • Projected Capacitive Touchscreen
  • IP65 Rated Front Bezel
  • Fanless Cooling System

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron Apollo Lake
Processor Model N4200
Processor Speed 1.10 GHz
Memory Type 2x DDR3L SO-DIMM
Memory Support 4GB, 8GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 SATA3 2280 Slot
Storage support 64GB-512GB

Display

Screen Size 15"
Resolution 1024 x 768 (XGA)
Screen Ratio 4:3
Brightness 300 nits
Viewing Angle 176º (H), 176º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)
Hardness 7H
Lifetime Usage 70,000 hrs

External I/O ports

USB 4x USB 3.0
Serial / Com 2x COM
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x DisplayPort, 1x HDMI
Other Ports 1x 8-bit GPIO Terminal Block
Audio 1x Audio Line-Out, 1x Mic-In
Power Input Port 3.5mm DC-in Jack, 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range 8-24V DC
Standard Power Adapter AC/DC adapter included

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro

Expansion Slots

Internal M.2 1x M.2 Type E, 1x M.2 Type B
PCIe Expansion Details 1 x M.2 2280 B key, 1 x M.2 2230 E key (PCIe / USB)

Multimedia

Speakers 2x 2W Speakers

Thermal and Environmental

Operating Temperature -20°C – 60°C
(-4°F – 140°F)
Storage Temperature -20°C – 70°C
(-4°F – 158°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Aluminum
Ip Rating IP65 Front Bezel
Color Black
Led Indicator Light Power
Control Buttons Power Button, Power Reset
Shock Rating 10g for 11ms
Vibration Rating 2G, 5Hz – 500Hz, random for SSD
Mounting Options Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi Optional

Dimensions / Weight

Weight 4.3 KG (9.5 lbs)
Dimensions 283 x 360 x 67 mm (11.1 x 14.2 x 2.6 in)

Certification

Certifications CE, FCC Class B, IEC 60068-2-27 for Vibration / Shock

Accessories

See the data sheet

Customize & Buy

RAM
Operating System
SSD
Accessories

Select the accessories you wish to add to your order.
See the Accessories tab for accessory details.

15" Eclipse Panel PC

TP-3493-15

Includes:

  • Full Metal Construction
  • Intel Celeron Apollo Lake Processor
  • 64GB – 1TB Storage Available

15" Eclipse Panel PC

1060

$1,060.00

MSRP:

For additional customization and quantity discounts, reach out to us directly for a custom quote!

Get a Full Custom Quote

Quantities up to 10 can be purchased online.

For quantities over 10, you must request a quote or contact us at sales@teguar.com or 704-960-1761.
