TP-2920 Series | Industrial Touch Computer

About the Series

The TP-2910-10 has a 10.1" widescreen PCap touchscreen. This panel PC is equipped with a Bay Trail Intel Celeron N2930 CPU and supports Power over Ethernet (PoE) for high computing functionality. Repeated contact, ambient moisture and dust present no problems for this front panel IP65 rated unit. This computer is perfect for building automation, conference room booking and room information display applications. The aluminum housing and fanless design make the TP-2920-10 ideal for maintaining a quiet and cool indoor environment.

Key Series Features

  • 10.1” Projective Capacitive Touchscreen
  • Intel Bay Trail Celeron N2930 1.83GHz CPU
  • Optional Power over Ethernet
  • Front IP65 Dust and Waterproof
Need Assistance?
Contact Us

Series Features

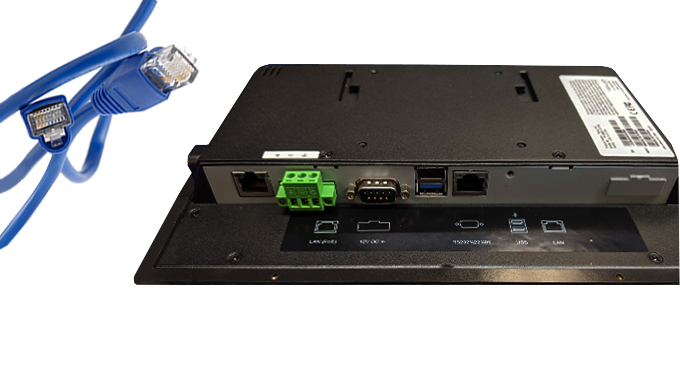

Robust Set of I/O Ports

The TP-2920-10 includes a variety of I/O ports to support almost any application.  These I/O ports include 2 x GbE LAN, including a Gbe LAN that supports PoE 802.11at, 1 x USB 3.0, 1 x USB 2.0, 1 x RS-232/422/485. The TP-2920-10 is available with optional WiFi + Bluetooth for wireless connectivity.

Slim and Sleek Design

The TP-2920-10 offers a thin profile, perfect for meeting rooms as well as a HMI application. The unique thermal design of these fanless computers allows them to be free of ventilation holes, so they are protected from dust and other airborne particulates.  There is optional LED lights for conference room application as well as several mounting options, including in-wall mounting

Optional PoE

Power Over Ethernet (PoE) is available on the TP-2920-10, perfect for those areas where power outlets aren’t easily accessible or present.

Long Life Cycle Support

The TP-2920 series includes a quad core Celeron N2930 CPU with long life cycle support from Intel.  These computers are not only industrial in design, but they are available for a long period of time.  There is no need to be concerned about discontinuation or having to go through the process of product selection and qualification any time soon.

Products in this Series

Model TP-2920-10

10" Fanless Panel PC

  • 10.1" Projective Capacitive Multi-touch Screen
  • Intel Bay Trail Celeron N2930 1.83GHz CPU
  • Fanless System with Ultra-low Power Use
