10" Fanless Panel PC

Back to TP-2920 Series | Industrial Touch Computer Series

TP-2920-10

Available

10" Panel PC | TP-2920-10
TP-2920-10 with Light Bars
10" Fanless Panel PC | TP-2920-10
Industrial Panel PC | TP-2920-10
10" Panel PC | TP-2920-10
TP-2920-10 with Light Bars
10" Fanless Panel PC | TP-2920-10
Industrial Panel PC | TP-2920-10

Description

This 10.1" sleek widescreen panel PC is equipped with a Bay Trail Intel Celeron N2930 CPU and supports power over ethernet (PoE) for high computing functionality. The TP-2920-10 flat touchscreen panel pc is designed for installation on visible surfaces with its projective capacitive multi-touch screen for a more intuitive user experience. Repeated contact, ambient moisture and dust present no problems for this front panel IP65 rated unit. This interactive widescreen panel is perfect for building automation, conference room booking and room information display applications. The aluminum housing and fanless design make the TP-2920-10 ideal for maintaining a quiet and cool indoor environment.

Key Highlights

  • 10.1" Projective Capacitive Multi-touch Screen
  • Intel Bay Trail Celeron N2930 1.83GHz CPU
  • Fanless System with Ultra-low Power Use
  • Supports Power over Ethernet(PoE) Power Input
  • Digital I/O(Phoenix Type) for Environment Control
  • Front IP65 Dust and Waterproof
  • Optional Housing w/ LED Light Bars on Two Sides
GET A DEMO GET A QUICK QUOTE

Product Features

The TP-2920-10 has a 10.1" PCap touchscreen and runs on an Intel Celeron Processor. This computer has a durable aluminum bezel and fanless cooling system, making it suited for industrial or commercial applications.

View warranty Information
View all features in the series See the data sheet

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

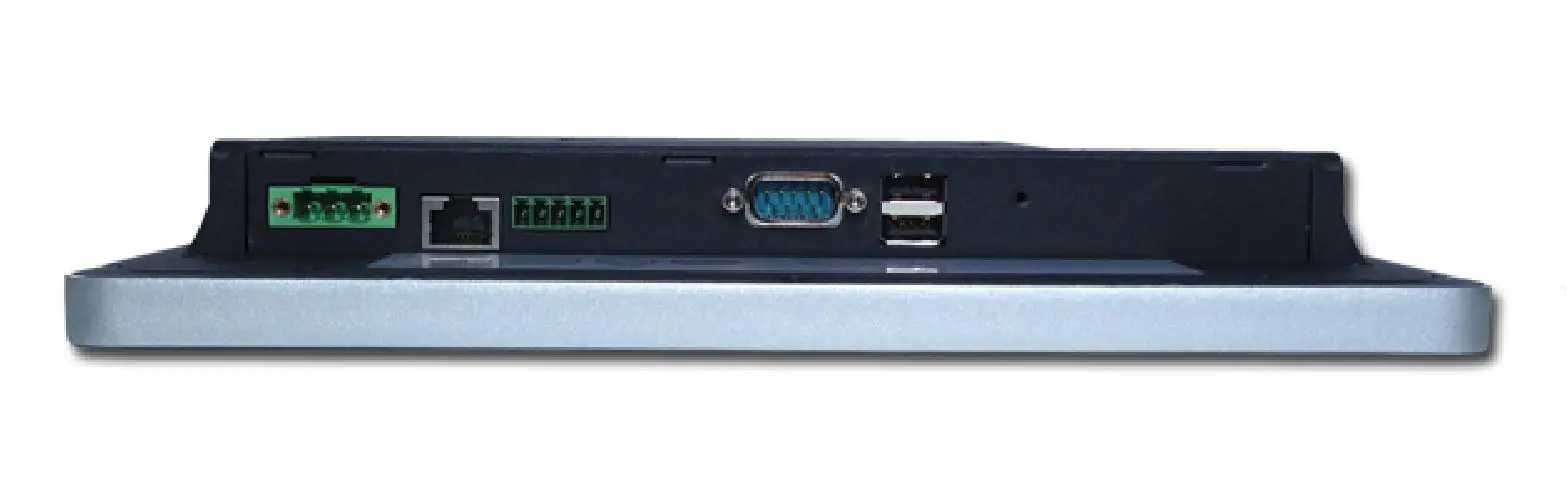

TP-2920-10 IOs

Technical Drawings

TP-2920-10 Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 10.1" Projective Capacitive Multi-touch Screen
  • Intel Bay Trail Celeron N2930 1.83GHz CPU
  • Fanless System with Ultra-low Power Use
  • Supports Power over Ethernet(PoE) Power Input
  • Digital I/O(Phoenix Type) for Environment Control
  • Front IP65 Dust and Waterproof
  • Optional Housing w/ LED Light Bars on Two Sides

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model N2930
Processor Speed 1.83 GHz
Memory Type 1x DDR3L SO-DIMM
Memory Support 2GB, 4GB, 8GB
Storage type mSATA
Storage support 32GB-512GB

Display

Screen Size 10.1"
Resolution 1280 x 800 (WXGA)
Screen Ratio 16:9
Brightness 300 nits
Contrast Ratio 800:1
Viewing Angle 178º (H), 178º (V)
Number of Colors Supported 262K

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)

External I/O ports

USB 1x USB 2.0, 1x USB 3.0
Serial / Com 1x COM
Serial Protocol Detail 1x RS-232/422/485
Ethernet / LAN 1x RJ45 GbE LAN
Audio 1x 3.5mm Audio Line-Out
Power Input Port 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range 12V DC

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Expansion Slots

Internal M.2 1x M.2 Type B, 1x M.2 (for WiFi expansion option)

Multimedia

Speakers 1x 1W Speaker

Thermal and Environmental

Operating Temperature 0°C – 50°C
(32°F – 122°F)
Humidity Range 30% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Aluminum
Ip Rating IP65 Front Bezel
Mounting Options Panel Mount, VESA Mount

Dimensions / Weight

Weight 3.2 KG (7.1 lbs)
Dimensions 263.28 x 171 x 35.7 mm (10.4 x 6.7 x 1.4 in)

Certification

Certifications CE, FCC

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
VESA Wall Mount Kit

Flush VESA Wall Mounting Kit

This Wall Mount Kit is compatible with most Teguar Industrial and Medical Computers screen sizes 10"...

Teguar VESA stand for Computers

Table Stand for VESA mount

Teguar's universal table stand is compatible with any computer with a VESA 75 or 100 mounting pattern....
