Tech Specs
Primary Components
| Processor Family | Intel Core I series 13th Generation Raptor Lake |
| Processor Model | Core i9-13900 |
| Processor Speed | 8x Performance Cores @ 2.0 GHz, up to 5.2 GHz Turbo, 16x Efficient Cores @1.5 GHz, up to 4.2 GHz |
| Memory Type | 4x DDR5 U-DIMM |
| Memory Support | 16GB, 32GB, 64GB, 128GB |
| Storage Type | 1x M.2 2280 SSD slot, SATA3 or NVME |
| Storage Support | M.2: 128GB-1TB |
Display
| Screen Size | 10.1" |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 600 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
| Hardness | 6H |

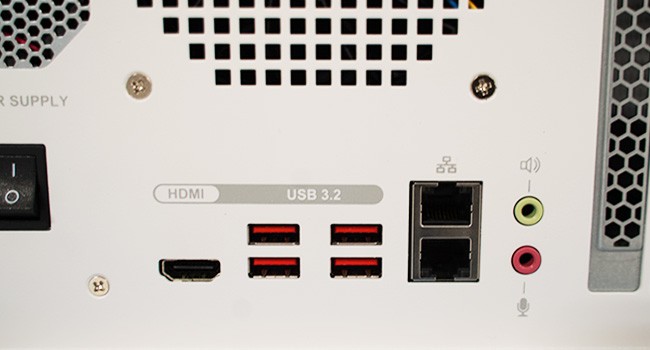

External I/O Ports

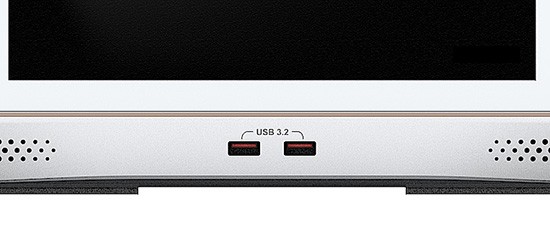

| USB | 2x USB 3.2 - Front, 4x USB 3.2 |
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN |
| Video Outputs | 1x HDMI |
| Audio Ports | 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack |
| Power Input Port | C13, 3-Prong AC Plug |
Power
| Standard Power Adapter | C13 AC Power cord, 700W Internal Power Supply |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
Multimedia
| Speakers | 2x 3W Speakers |
Thermal & Environmental
| Operating Temperature | 0°C - 40°C (32°F – 104°F) |
| Storage Temperature | -20°C - 65°C (-4°F – 149°F) |
| Cooling Solution | Active – with Fan |
| Humidity Range | 10% – 95% Non-condensing |
Enclosure
| Material | Composite and SECC Steel Chassis |
| IP Rating | IP65 Front Bezel |
| Color | White |
| Led Indicator Light | Power |
| Control Buttons | Power Button |
Weight / Dimensions
| Weight | 8 kg (17.6 lbs) |
| Dimensions | 390 x 208 x 310 mm (15.4 x 8.2 x 12.2 in) |
Warranty
| Warranty | Up to 5 Years |
