Tech Specs
Primary Components
| Processor Family | Intel Core Ultra Series 14th Generation Meteor Lake |
| Processor Model | Core Ultra 5 - 125U, Core Ultra 7 155U |
| Processor Speed | Up to 4.8 Ghz |
| Memory Type | 1x DDR5 SO-DIMM |
| Memory Support | 8GB, 16GB, 32GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD, 1x M2 |
| Storage Support | M.2 SATA and 2.5": 128GB-1TB |
Display
| Screen Size | 23.8" |
| Screen Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 350 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |

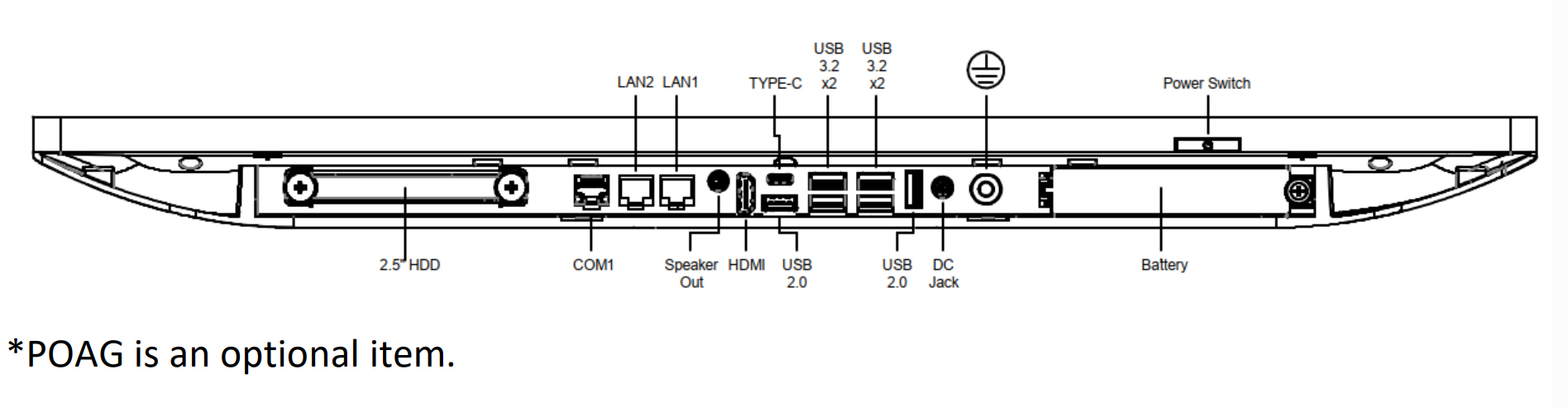

External I/O Ports
| USB | 1x USB-C, 3x USB 2.0, 4x USB 3.2 |
| Serial / Com | 1x COM |
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN |
| Video Outputs | 1x HDMI |
| Audio Ports | 1x 3.5mm Speaker Box Jack |
Power
| Input Voltage Range | 19V DC |
| Standard Power Adapter | 4.74 Amp AC/DC Adapter |
Battery
| Battery Type | Optional 10.8V/10350mAh Battery |
| Battery Operating Time | 2hrs |
Operating Systems
| Windows | Windows 10 IoT, Windows 11 IoT |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 |
| Expansion Module support | Speaker Box |
| Other | RFID |
Multimedia
| Speakers | 2x 3W Speakers |
| Camera | Front: 8MP |
| Microphone | 2x Built-in Microphones |
Thermal & Environmental
| Operating Temperature | 0°C - 40°C (32°F – 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
Enclosure
| Material | Die-Cast Aluminum/Plastic |
| IP Rating | IP65 Front Bezel |
| Color | White |
| Control Buttons | Audio Down, Audio Up, Brightness Down, Brightness Up, Power Button, Touchscreen Lock for Cleaning |

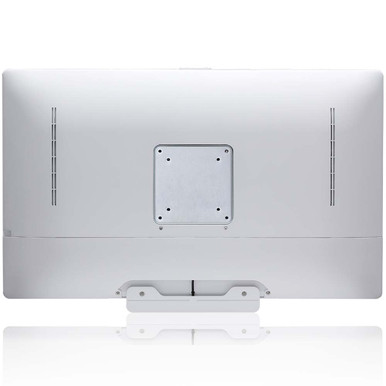

| Mounting Options | VESA 100 Mount |
Peripherals & Wireless Connectivity
| WiFi | WiFi 802.11 (a/b/g/n/ac) |
| Bluetooth | Bluetooth 5.2 |
| RFID | Optional RFID |
| Peripheral Other | Camera Privacy Latch |
Weight / Dimensions
| Weight | 8 kg (17.6 lbs) |
| Dimensions | 581 x 350 x 44 mm (22.9 x 13.8 x 1.7 in) |
Certification
| Certifications | CE, EN60601-1, FCC Class B |
Warranty
| Warranty | Up to 2 Years |
