About the Series
Designed from the ground up to be the pinnacle of panel PC design, the Pinnacle Series of TP-4800 and TP-7200 is built to thrive wherever it’s needed.
The Pinnacle Series is powered by your choice of a high-performance fanless Core Ultra processor with its integrated NPU or an efficient Celeron CPU which balances power, value, and efficiency. Fit the slim build of Pinnacle into a shallow panel cutout or use as a sleek all-in-one with a VESA mount; the Pinnacle series allows you to do more in up to 20% less installation space than traditional models. Despite its elegance, Pinnacle maintains its durability with a fanless cooling design and an IP66 rated front bezel. Finally, with a direct-bonded display providing precise touch and great clarity, Pinnacle brings the familiar consumer touch experience of tablets and smartphones to any industrial application. This stunning panel computer is available in 12.1″ and 15.6″ screen sizes.
For efficiency, durability, and space optimization, look no further than the Pinnacle Series, designed from end to end to be the ultimate panel PC solution.
Key Series Highlights
- Latest Fanless Meteor Lake or Elkhart Lake Processor
- High Resolution, High Brightness, Direct Bonded Display
- PoE, USB-C, Digital IO, HDMI Ports
- Stunning Sleek Form Factor
- Solid Cast-Aluminum Housing
- Windows 11 Pro and IOT
Series Features
Workhorse CPU

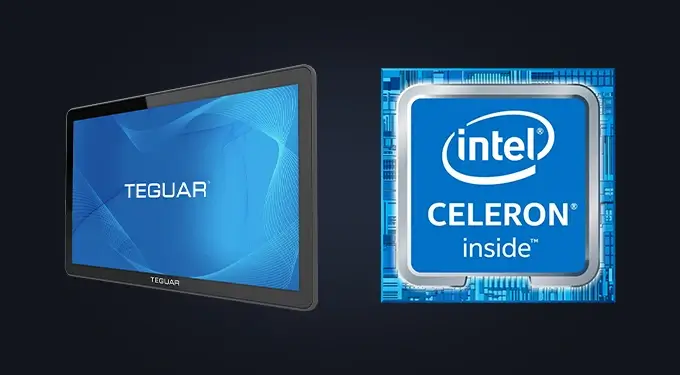

Pinnacle is equipped with a reliable Elkhart Lake Intel® Processor that doesn’t quit under repetitive workflows. The J6413 is part of Intel’s embedded Roadmap for IOT that brings long lifecycle and legendary stability.
The TP-7200 offers the blazing fast Core Ultra Processor that can handle intensive SCADA systems and demanding graphics. Keep speeds high and power draw low by using a compatible AI-accelerating NPU from Hailo.
Passive Cooling Capabilities

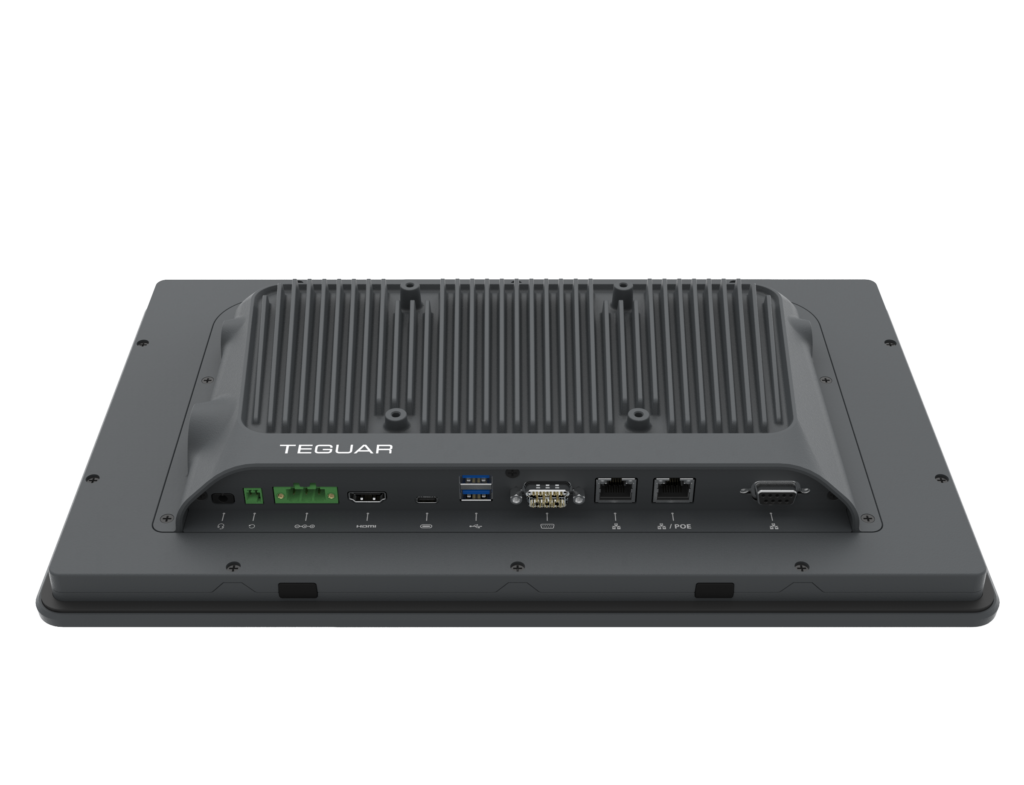

The aluminum heat sink on the back of the unit allows the fully enclosed, fanless unit to stay cool. Pinnacle is tried and tested to operate smoothly in a wide swath of temperatures, so heat or cold won’t slow you down.
Powered by USB-C or DC
Enjoy elegant, minimalistic cable management by using a single USB-C to power both the TP-4800 and TP-7200. You can also easily wire to a wide-range DC power source with a 3-pin connector.
Innovative Form Factor

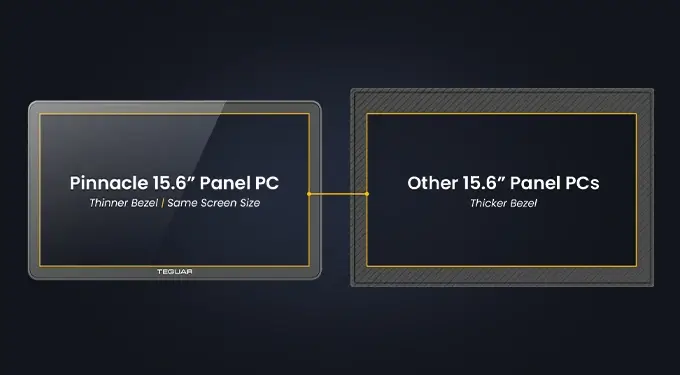

Pinnacle stuns with a sleek design that rivals the look of the hottest modern consumer products while staying rugged. Our thinnest panel PC is only 2 inches in depth and even has a super-slim touch screen bezel border. We fit a 16-inch screen into dimensions usually fit by an average unit with only a 12- or 13-inch screen. This means more space is taken up by what matters, not by excessive black borders.
Perfect Clarity
The Pinnacle Panel PC is designed with a direct bonded, high brightness display for a (literally) seamless, elevated user experience. Full lamination between the touch panel and display not only provides lock-tight safety from dust and moisture but also improves its resilience against cracks and damage. The anti-glare bonded screen is designed to be easily and clearly viewed from any angle.
All-Purpose
Expand the capabilities of Pinnacle by utilizing its diverse I/O expansion options. Streamline your setup with Power over Ethernet (available on TP-4800), use GPIO to tailor to your exact needs, add an additional COM port, or 2 more USB ports. Use the NVMe slot on TP-7200 for a dedicated NPU. Need something else? We built in extra space to customize the I/O for your unique need.
Shop Pinnacle Series Panel PCs
Pinnacle TP-7200-16
- Latest Fanless Meteor Lake Processor
- 15.6″ High Brightness Display with Direct Bonded Touch
- USB-C, Digital IO, HDMI Ports, Dual M.2 NVMe
- Stunning Sleek Form Factor
- Solid Cast-Aluminum Housing
- Windows 11 Pro and IOT
Pinnacle TP-4800-12
- Latest Fanless Intel® Elkhart Lake Processor
- 12.1″ High Brightness Display with Direct Bonded Touch
- PoE, USB-C, Digital IO, HDMI Ports
- Stunning Sleek Form Factor
- Solid Cast-Aluminum Housing
- Windows 11 Pro and IOT
Pinnacle TP-4800-16
- Latest Fanless Intel® Elkhart Lake Processor
- 15.6″ High Brightness Display with Direct Bonded Touch
- PoE, USB-C, Digital IO, HDMI Ports
- Stunning Sleek Form Factor
- Solid Cast-Aluminum Housing
- Windows 11 Pro and IOT
Pinnacle TP-7200-12
- Latest Fanless Meteor Lake Processor
- 12.1″ High Brightness Display with Direct Bonded Touch
- USB-C, Digital IO, HDMI Ports, Dual M.2 NVMe
- Stunning Sleek Form Factor
- Solid Cast-Aluminum Housing
- Windows 11 Pro and IOT
Pinnacle TP-4800-16-TM
- Optimized for ThinManager® thin client deployments
- Fanless Intel® Celeron® processor for reliable, energy-efficient performance
- 12.1″ high-brightness display with direct-bonded touchscreen for industrial HMI applications
- Power over Ethernet (PoE) for simplified installation and reduced cabling
- USB-C, HDMI, and Digital I/O for flexible industrial connectivity
- Slim, all-in-one design with rugged cast-aluminum housing
- Available with Windows 11 Pro or Windows 11 IoT Enterprise
Pinnacle TP-4800-12-TM
- Optimized for ThinManager® thin client deployments
- Fanless Intel® Celeron® processor for reliable, energy-efficient performance
- 12.1″ high-brightness display with direct-bonded touchscreen for industrial HMI applications
- Power over Ethernet (PoE) for simplified installation and reduced cabling
- USB-C, HDMI, and Digital I/O for flexible industrial connectivity
- Slim, all-in-one design with rugged cast-aluminum housing
- Available with Windows 11 Pro or Windows 11 IoT Enterprise
