Tech Specs
Primary Components
| Processor Family | Intel Celeron or Core I 6th Generation Skylake |
| Processor Model | Celeron 3955U; Core- i5-6300U |
| Processor Speed | Base 2.0 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD |
| Storage Support | 32GB-1TB |
Display
| Screen Size | 15.6" |
| Resolution | Optional 1920 x 1080, 1366 x 768 |
| Screen Ratio | 16:9 |
| Brightness | 220 nits |
Touch Screen
| Touch Screen | Projected Capacitive |
External I/O Ports
| USB | 4x USB 3.0 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | RJ-48, support RS-232 |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 1x HDMI |
| Other Ports | Optional Isolated I/O: RS-232, RJ45 LAN, USB |
| Audio Ports | 1x 3.5mm Microphone Jack, 1x Audio Line-Out |
Power
| Input Voltage Range | 12-48V DC |
| Standard Power Adapter | 19V AC/DC Adapter included by default, 65W/19V AC/DC Adapter |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro |
| Linux | Linux (Contact your sales rep for more information) |
Compatibility
| Security Hardware | TPM 2.0, Intel vPro *Not available with Celeron |
Expansion Slots
| Internal M.2 | 1x M.2 Slot half-size Type E |
Multimedia
| Speakers | 2x 2W Speakers |
| Camera | 2MP Webcam |
Thermal & Environmental
| Operating Temperature | 0°C - 40°C (32°F – 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 20% – 85% Non-condensing |
Enclosure
| Material | Aluminum |
| IP Rating | IP65 Front Bezel |
| Color | Black |

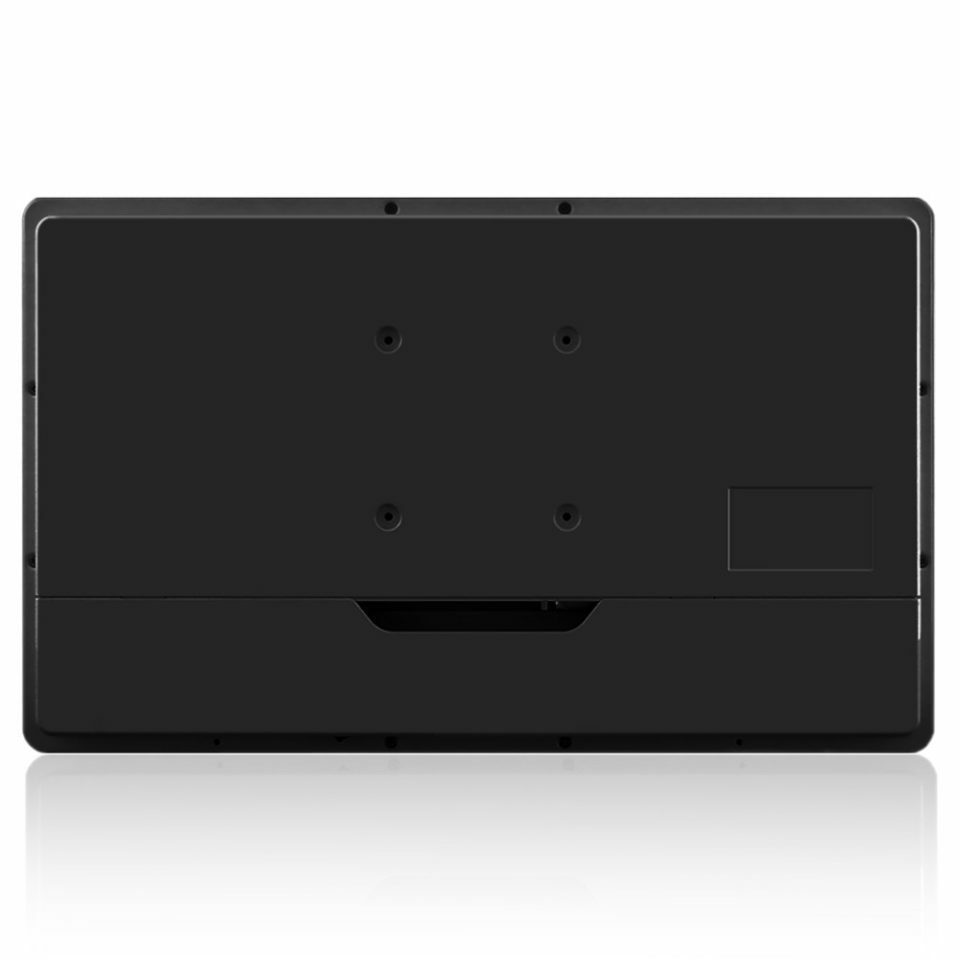

| Mounting Options | VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional 802.11 b/g/n WLAN card and Bluetooth 4.0 |
Weight / Dimensions
| Weight | 4.5 kg (9.9 lbs) |
| Dimensions | 396 x 48 x 245 mm (15.6 x 1.9 x 9.6 in) |
Certification
| Certifications | CE, FCC Class B, 60601-1 4th Edition |
Warranty
| Warranty | Up to 5 Years |
