Tech Specs
Primary Components
| Processor Family | Intel Celeron Elkhart Lake |
| Processor Model | Celeron J6412 |
| Memory Type | Onboard DDR4 |
| Memory Support | 4GB, 8GB, 16GB |
| Storage Type | 1x M.2 slot for SSD |
| Storage Support | M.2: 128GB-1TB |
Display
| Screen Size | 18.5" |
| Resolution | 1366 x 768 |
| Screen Ratio | 16:9 |
| Brightness | 250 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
External I/O Ports
| USB | 2x USB 2.0, 2x USB 3.0, 2x USB Type C (Data only) |
| Serial / Com | 2x COM |
| Serial Protocol Detail | x2 RS-232 DB-9 |
| Ethernet / LAN | 1x RJ45 GbE LAN |
| Other Ports | Custom connector for External Monitor |
| Power Input Port | 4-Pole DIN (latching) |
Power
| Input Voltage Range | 19V DC |
| Standard Power Adapter | 65W AC/DC Adapter |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 |
| Linux | Linux (Contact your sales rep for more information) |
Compatibility
| Security Hardware | fTPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |

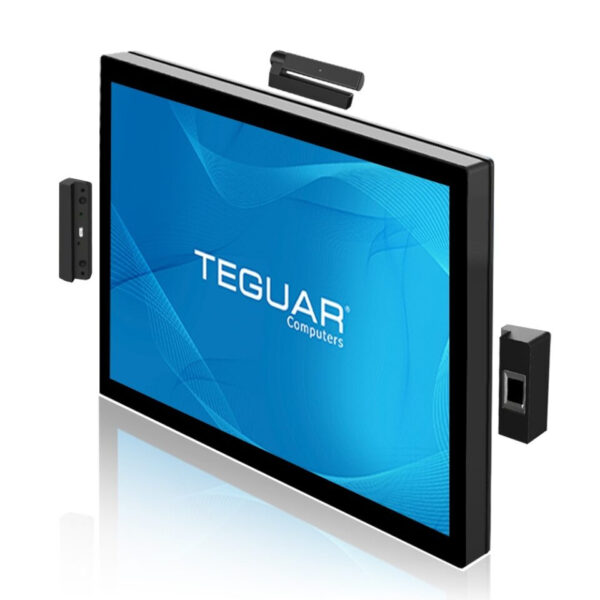

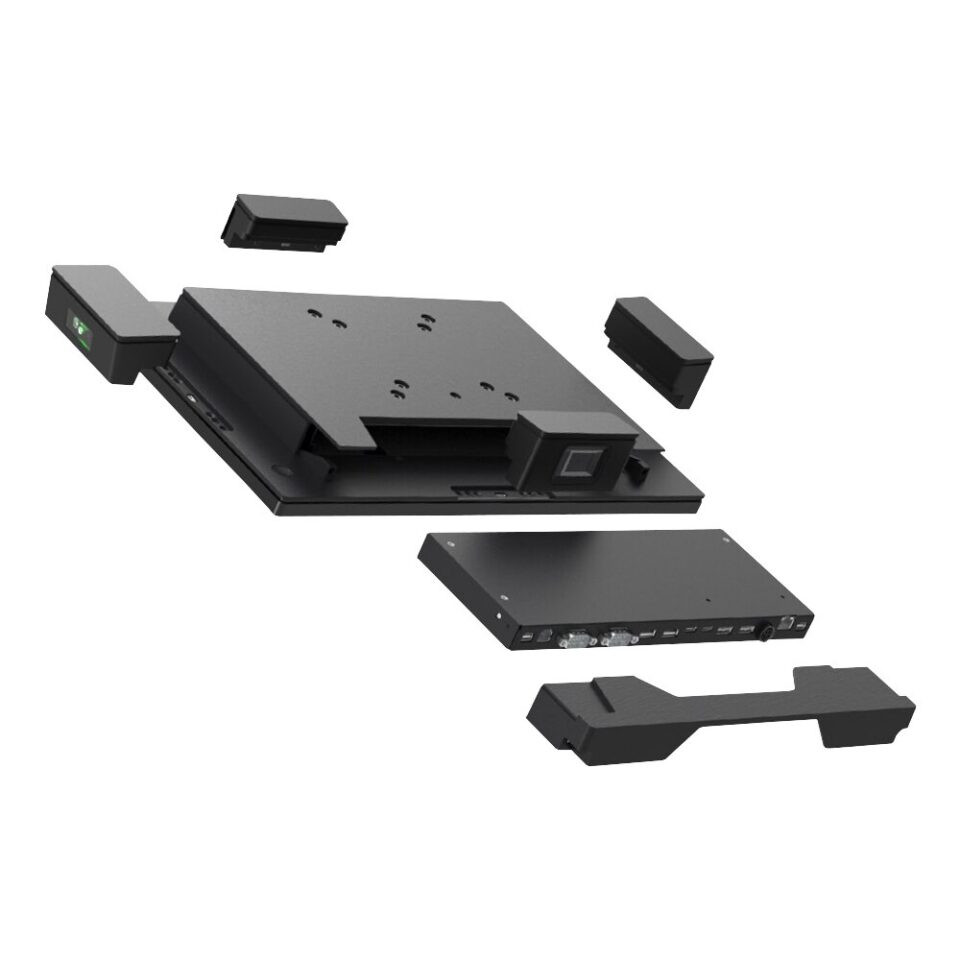

| Expansion Module support | 4 USB based expansion areas on Bezel |
Multimedia
| Speakers | 1x 3W Speaker |
| Camera | Optional Webcam |
Thermal & Environmental
| Operating Temperature | 0°C - 35°C (32°F – 95°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 20% – 85% Non-condensing |
Enclosure
| Material | Plastic |
| IP Rating | IP54 Front Bezel |
| Color | Black |

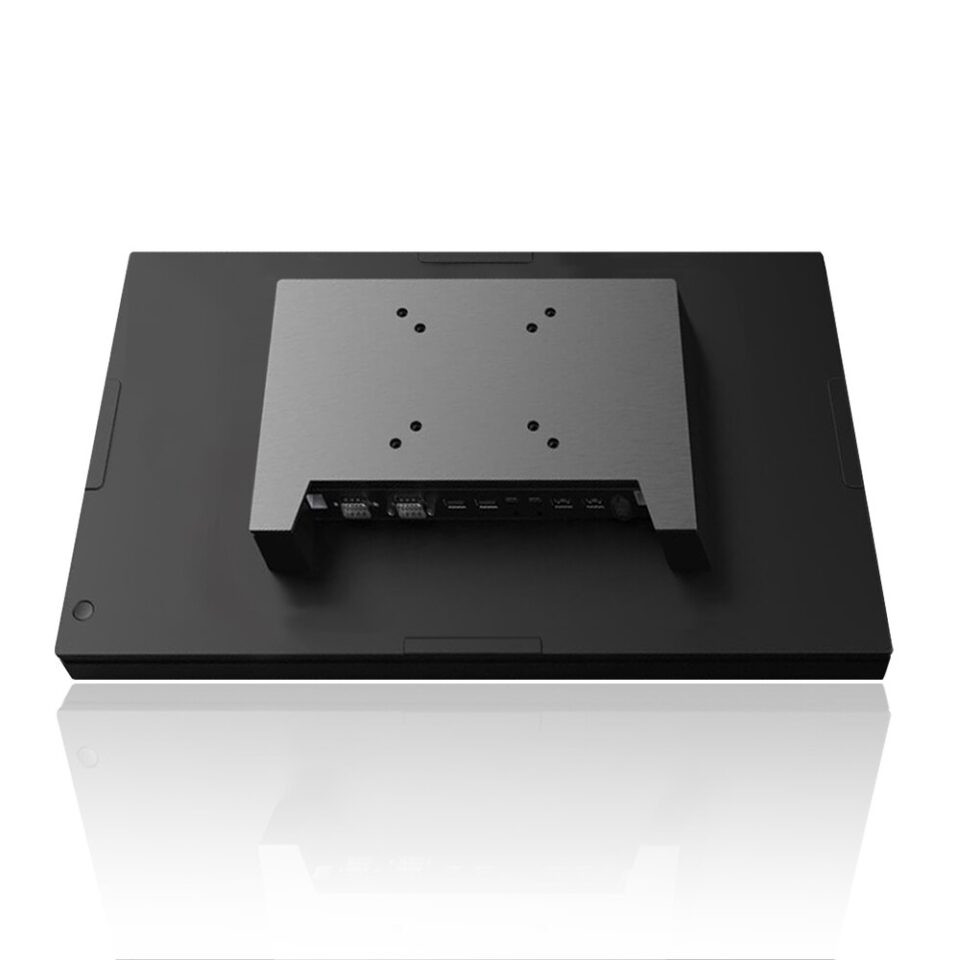

| Mounting Options | VESA 100 Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional through M.2 interface |
| Bluetooth | Optional Bluetooth 5.1 |
| Barcode Scanner | Optional 1D/2D Barcode Scanner |
| RFID | Optional 13.56 NFC External Module |
| Peripheral Other | Contact Teguar is you have a customized external Module request |
Weight / Dimensions
| Weight | 4.4 kg (9.7 lbs) |
| Dimensions | 451 x 273 x 51 mm (17.8 x 10.7 x 2.0 in) |
Certification
| Certifications | CE, FCC |
Warranty
| Warranty | Up to 5 Years |
