17" Panel Mount Computer

Available


Description

The TP-5645-17 Panel Mount Computer offers the robust processing power of an Intel 8th generation Core i3 or i5 CPU with long life cycle support. The front bezel is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates. The unique compact thermal design includes a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. With up to 16GB of DDR4 memory and an M.2 key capable of up to 512GB of SSD storage, the TP-5645-17 panel mount computer is a great solution for most Linux or Windows based applications. A high-brightness touchscreen option can be chosen for environments with low ambient lighting like retail. This panel PC is a great solution for applications such as a data hub for your IoT / IIoT sensors, or to run your ERP (Enterprise Resource Planning) software.

Key Highlights

  • IP66 Protected Front with Aluminum Housing
  • Fanless Cooling System
  • Intel 8th Gen. Core i3/i5 CPU
  • 17" P-cap or Resistive Touchscreen
  • Wide Range 9-36VDC Power Input
  • Easily accessible M.2 storage, up to 1TB

Use Cases

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

HMI (Human-Machine Interface) Systems: Intuitive and interactive interfaces for controlling and monitoring machines, equipment, and processes in various industries such as manufacturing, oil and gas, and utilities.

Retail and Point-of-Sale (POS): Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

Outdoor Environments: Durable and rugged computing for outdoor applications such as smart city infrastructure, outdoor kiosks, and public information displays.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

tp-5645-17 ios

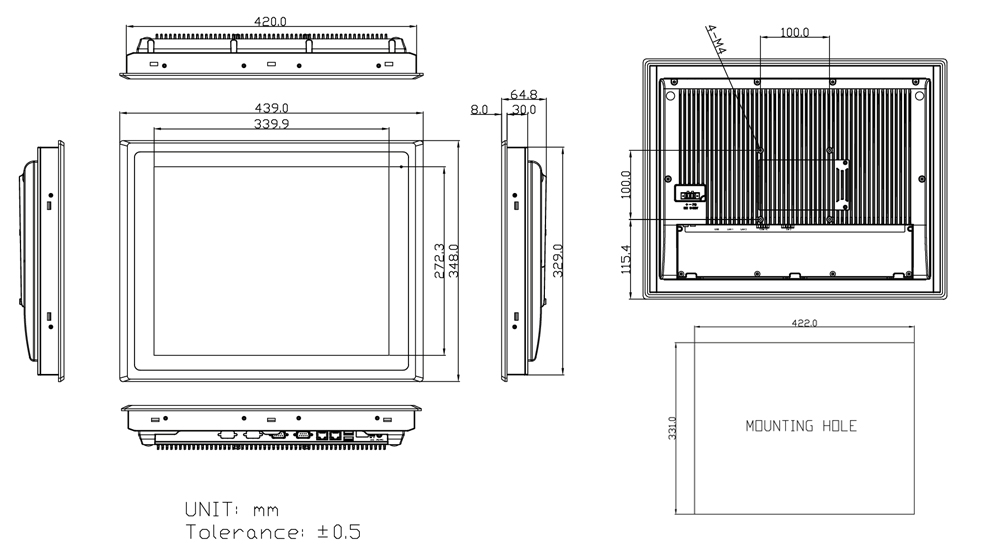

Technical Drawings

tp-5645-17-technical drawing

Key Highlights

  • IP66 Protected Front with Aluminum Housing
  • Fanless Cooling System
  • Intel 8th Gen. Core i3/i5 CPU
  • 17" P-cap or Resistive Touchscreen
  • Wide Range 9-36VDC Power Input
  • Easily accessible M.2 storage, up to 1TB

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron or Core i 8th Generation Whiskey Lake
Processor Model Core i3 8145UE, Core i5-8365UE
Processor Speed 2.4 GHz
Memory Type 1x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage support M.2: 128GB-1TB

Display

Screen Size 17"
Resolution 1280 x 1024 (SXGA)
Screen Ratio 5:4
Brightness 350 nits
Contrast Ratio 1000:1
Viewing Angle 178º (H), 178º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)
Lifetime Usage 30,000 hrs, 50,000 hrs (High Brightness)

External I/O ports

USB 4x USB 3.0
Serial / Com 1x COM
Serial Protocol Detail Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x DisplayPort
Other Ports 1x 2-Pin DC Power Switch Connector
Audio 1x Audio Line-Out
Power Input Port 2-Pin Power Switch

Power

Input Voltage Range 9-36V DC
Max Power consumption 86W

Operating Systems

Windows Windows 11, Windows 10 IoT
Linux Yocto Linux, Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Thermal and Environmental

Operating Temperature 0°C – 50°C
(32°F – 122°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum
Ip Rating IP66 Front Bezel
Mounting Options Panel Mount, VESA Mount

Dimensions / Weight

Weight 6.3 KG (13.9 lbs)
Dimensions 439x348x64.8 mm (17.3 x 13.7 x 2.6 in)

Certification

Certifications CE, FCC Class A, UL 62368

Warranty

Warranty 1 Year

Filters

Main Category Filter Industrial Computer

Accessories

See the data sheet
