10" Medical Panel PC

TM-4815

Available

10" Medical Panel PC With Touch TM-4815-10 Front
10" Medical Panel PC With Touch TM-4815-10 Front Angle

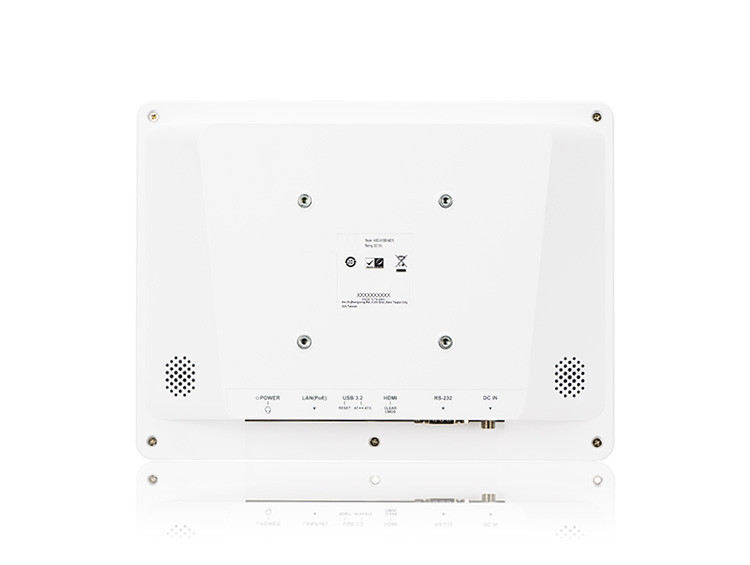

10" Medical Panel PC With Touch TM-4815-10 Back
10" Medical Panel PC With Touch TM-4815-10 Back I/Os
10" Medical Panel PC With Touch TM-4815-10 Side
10" Medical Panel PC With Touch TM-4815-10 Front
10" Medical Panel PC With Touch TM-4815-10 Front Angle
10" Medical Panel PC With Touch TM-4815-10 Back
10" Medical Panel PC With Touch TM-4815-10 Back I/Os
10" Medical Panel PC With Touch TM-4815-10 Side

Description

The 10” Medical Panel PC with Touch is a compact and versatile solution tailored to meet the specific needs of healthcare professionals. Its 10-inch optical bonding touchscreen offers intuitive and responsive interaction, enhancing workflow efficiency. With optional features like an RFID reader capable of reading various credentials, Power over Ethernet (PoE) for simplified installation, and programmable LED light bars for clear visual indicators, it adapts seamlessly to diverse medical environments. Its flush wall-mount design saves space while ensuring easy access to critical data. Whether used for patient records, patient vitals, or part of a medical system, this panel PC delivers reliability and performance crucial for modern healthcare.

Key Highlights

  • 10” Projected Capacitive Touchscreen with Optical Bonding
  • Intel Celeron N6210 Elkhart Lake CPU
  • Programmable LED light bars on both sides
  • Multiple I/Os such as 1x HDMI, 1x RS-232, 1x GbE, 2x USB 3.2
  • IP65 Rated
GET A DEMO GET A QUICK QUOTE

Use Cases

Clinical Communication: The TM-4815 series excels as a clinical communication hub across various healthcare settings. Powered by the Intel Elkhart Lake processor, this panel PC ensures robust performance for demanding applications. With programmable light bars and a space-saving in-wall mount design, it becomes a versatile tool for communication in areas such as point of care, surgery rooms, and telemedicine, facilitating efficient interactions among healthcare professionals.

Patient Care Optimization: The TM-4815 series, designed to enhance patient care, is a valuable addition to healthcare facilities. With features like a responsive surgical glove interface and optical bonding for clear displays, this Medical Panel PC, powered by the Intel Elkhart Lake processor, supports patient care optimization across various medical imaging and surgical environments. Its programmable light bars and customizable alerts contribute to workflow efficiency in point-of-care applications.

See the data sheet Warranty Download Drivers

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TM-4815 Labeled I/Os

Technical Drawings

Tm-4815-10 Technical Drawing

TECH SPECS

See the data sheet Download Drivers

Key Highlights

  • 10” Projected Capacitive Touchscreen with Optical Bonding
  • Intel Celeron N6210 Elkhart Lake CPU
  • Programmable LED light bars on both sides
  • Multiple I/Os such as 1x HDMI, 1x RS-232, 1x GbE, 2x USB 3.2
  • IP65 Rated

General

Main Category Medical Computer

Primary Components

Processor Family Intel Celeron Elkhart Lake
Processor Model Celeron N6210
Processor Speed 1.2 GHz, Up to 2.6 GHz
Memory Type 1x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x M.2 2242 Slot, SATA3 or NVMe
Storage support M.2: 128GB-512GB

Display

Screen Size 10.1"
Resolution 1280 x 800 (WXGA)
Screen Ratio 5:4
Brightness 400 nits
Contrast Ratio 800:1
Viewing Angle 178º (H), 178º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Optically Bonded Projected Capacitive
Hardness 6H
Lifetime Usage 30,000 hrs

External I/O ports

USB 2x USB 3.2
Serial / Com 1x COM
Serial Protocol Detail RS-232
Ethernet / LAN 1x RJ45 GbE LAN, 1x Optional Gbe LAN PD POE Class 4 802.3at/Class 5 802.3.bt
Video Outputs 1x HDMI
Audio 1x 3.5mm Audio Line-Out/Mic-In
Power Input Port DC-in via adapter cable

Power

Input Voltage Range 12V DC, Optional POE with PD
Standard Power Adapter External Medical Grade, 65W, 12Vdc, 5.42A, with US Power Cord

Operating Systems

Windows Windows 11 IoT, Windows 11 Pro, Windows 10 IoT, Windows 10 Pro

Expansion Slots

PCI No

Multimedia

Speakers 2x 1W Speakers
Microphone Built-in Microphone

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 95% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material PC+ABS
Ip Rating IP65 Front Bezel
Color White
Control Buttons AT/ATX, Clear CMOS, Power Button, Reset Button
Vibration Rating 1G/5G Peak 11ms(Operating)/15G Peak 11ms (Non-Operating)
Mounting Options VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi Intel® Wi-Fi 6E AX210
BlueTooth Bluetooth 5.0

Dimensions / Weight

Weight 2.8 KG (6.2 lbs)
Dimensions 261x40x196.4 mm (10.3 x 1.6 x 7.7 in)

Certification

Certifications CE, UL 62368

Warranty

Warranty Up to 2 Years

Filters

Main Category Filter Medical Computer

Accessory Details

Indicator Light Left and Right Side, 10x LED Light Bar, Seven Colors

Accessories

See the data sheet
