TWB-7010

IP69K Stainless Steel Computer | Trident
Available – Contact Us for Quick Quote

Description

The Trident Embedded Computer is built in an anti-rust stainless steel enclosure to ensure reliable waterproof performance. The Core i processor from Intel® clocks a Passmark score over 9500 and is equipped to run Windows 11. Choose your preferred method to waterproof your I/Os: either M12 connectors or a cable gland. Customize Trident for your exact setting even further with built-in Wi-Fi options and a second LAN port. This corrosion-proof fanless computer can be cleaned and sprayed time and time again, perfect for pharmaceutical and food & beverage applications.

Key Highlights

  • 12th Gen Alder Lake Core i5 CPU
  • Windows 11 Ready
  • Dual Storage Capability with 2.5” and M.2
  • Mounting kit built onto the unit, no attachment needed
  • IP69K Fully Waterproof Stainless Steel Enclosure

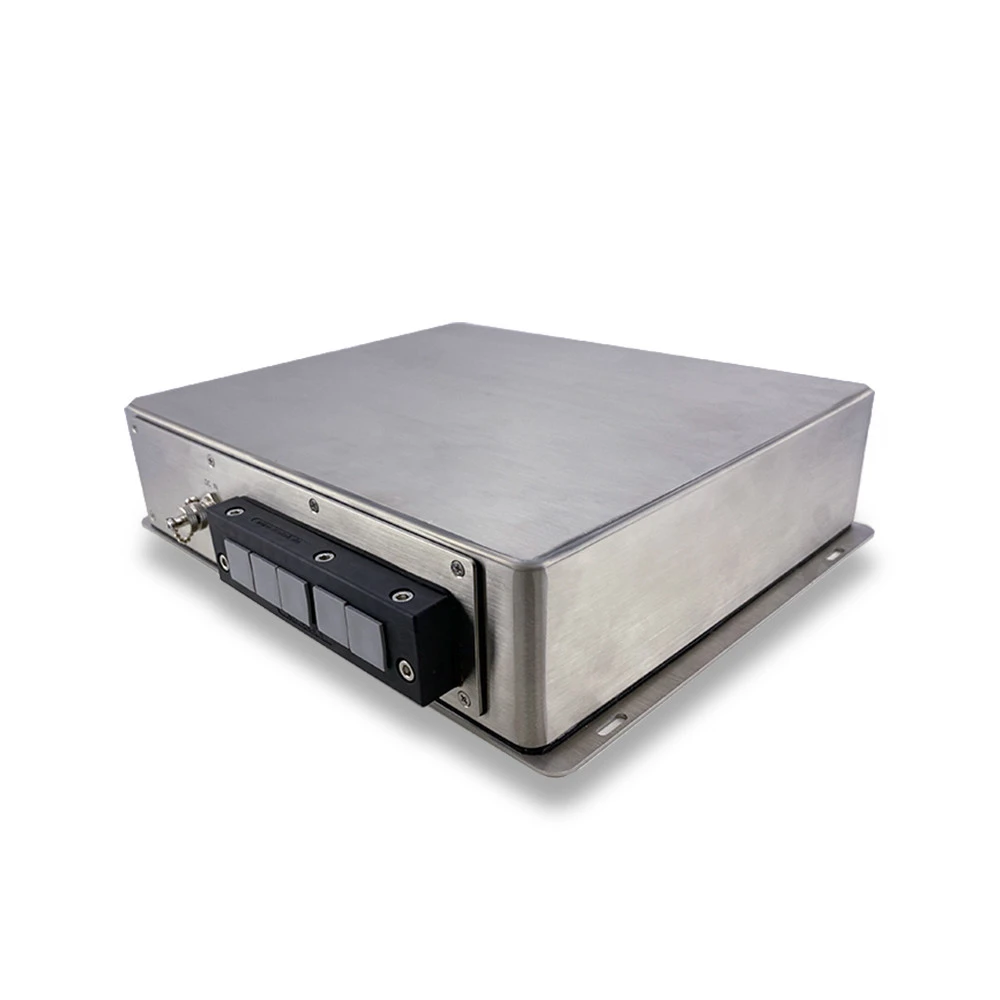

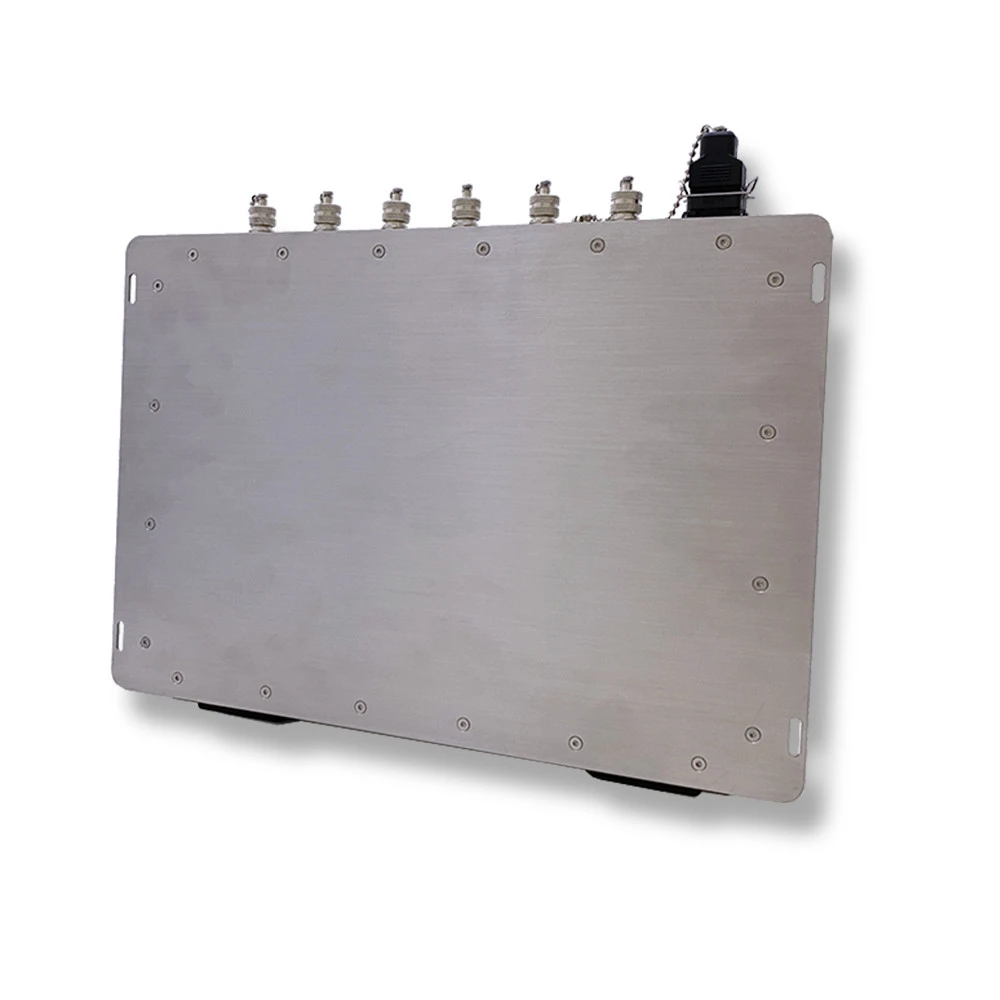

  • Cable Gland or M12 Connector Options

Primary Components

Processor FamilyIntel Core I series 12th Generation Alder Lake
Processor ModelCore i5-1245UE
Processor Speed2x Performance Cores @ 4.4 GHz, 8x Efficient Cores @ 3.3 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 NVME SSD Slot (2242/2260/2280)
Storage SupportM.2 SATA and 2.5": 128GB-1TB

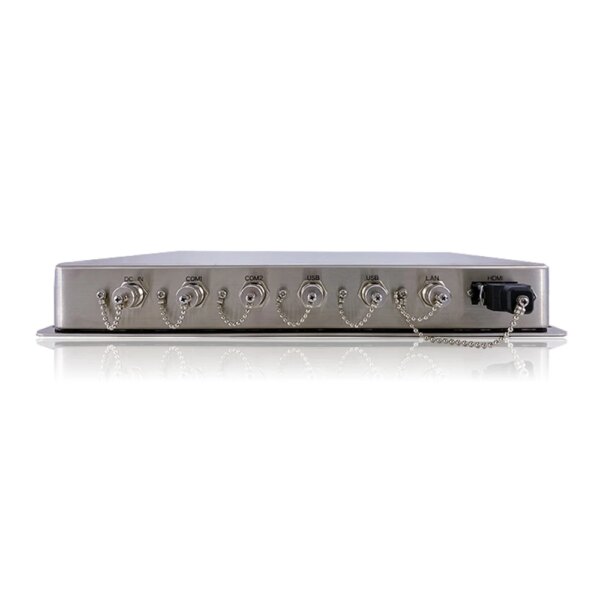

External I/O Ports

USB2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com2x M12 8-pin for COM
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN

Power

Standard Power AdapterUS Power Cord, AC Input 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialStainless Steel
IP RatingIP66, IP69K, NEMA 4X
ColorStainless Steel
Approved Cleaning SolutionsWarm Water

Peripherals & Wireless Connectivity

BluetoothOptional Bluetooth 5.3
Sim Card1x SIM Card Slot

Weight / Dimensions

Weight6.1 kg (13.4 lbs)
Dimensions363 x 48 x 274 mm (14.3 x 1.9 x 10.8 in)

Certification

CertificationsCE, FCC

Warranty

WarrantyUp to 5 Years

For Lock-tight IP Rating – Perfect for Cleanrooms: An Ingress Protection rating of IP69K ensures resistance against high-pressure water jets, temporary submersion, and any dust or particles. In sensitive pharmaceutical manufacturing environments or washdown areas, the fanless design won’t spread any dust, and the stainless steel enclosure has no paint or other contaminants that can chip into a cleanroom.

To hold up under Frequent Sanitization – For Hospitals and other Hygienic Spaces: Medical environments require frequent sterilization and disinfection for safety of patients and healthcare workers alike. The TWB-7010’s anti-corrosive (304/316) exterior holds up to harsh cleaning chemicals and is safe from liquid ingress with M12 connectors or cable gland protecting the I/Os.

For Fully Waterproof Enclosure – Beverage & Bottling Computer: Use TWB-7010 to monitor production or QA manufacturing processes even in messy food and beverage facilities. No need to hide this unit or protect it within a cabinet — the stainless steel exterior is safe from ingress of liquid spills, crumbs and dust, and can easily be washed down with the rest of the equipment.

Dimensional Drawings & I/Os

I/O Diagram Images

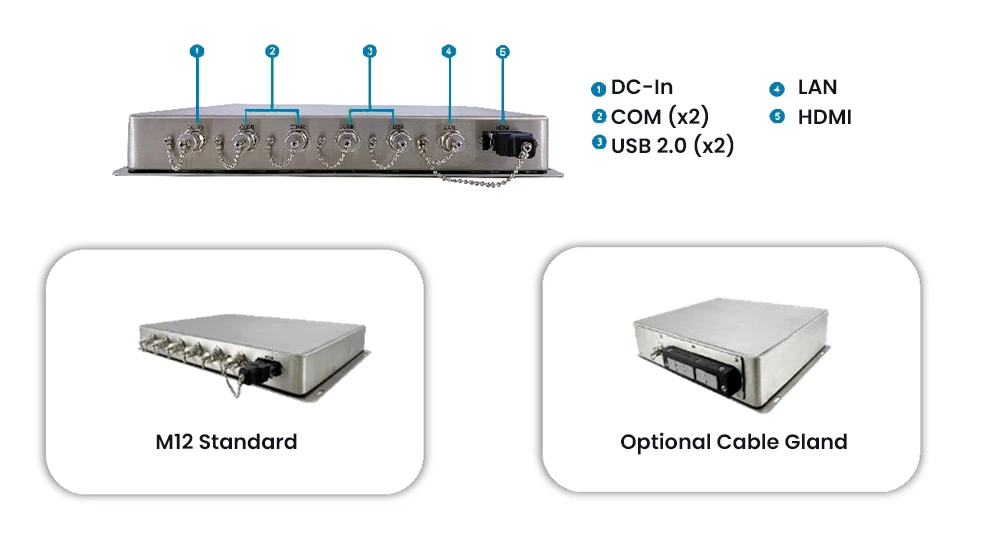

TWB-7010 Labeled IO Diagram

Tech Diagram Images

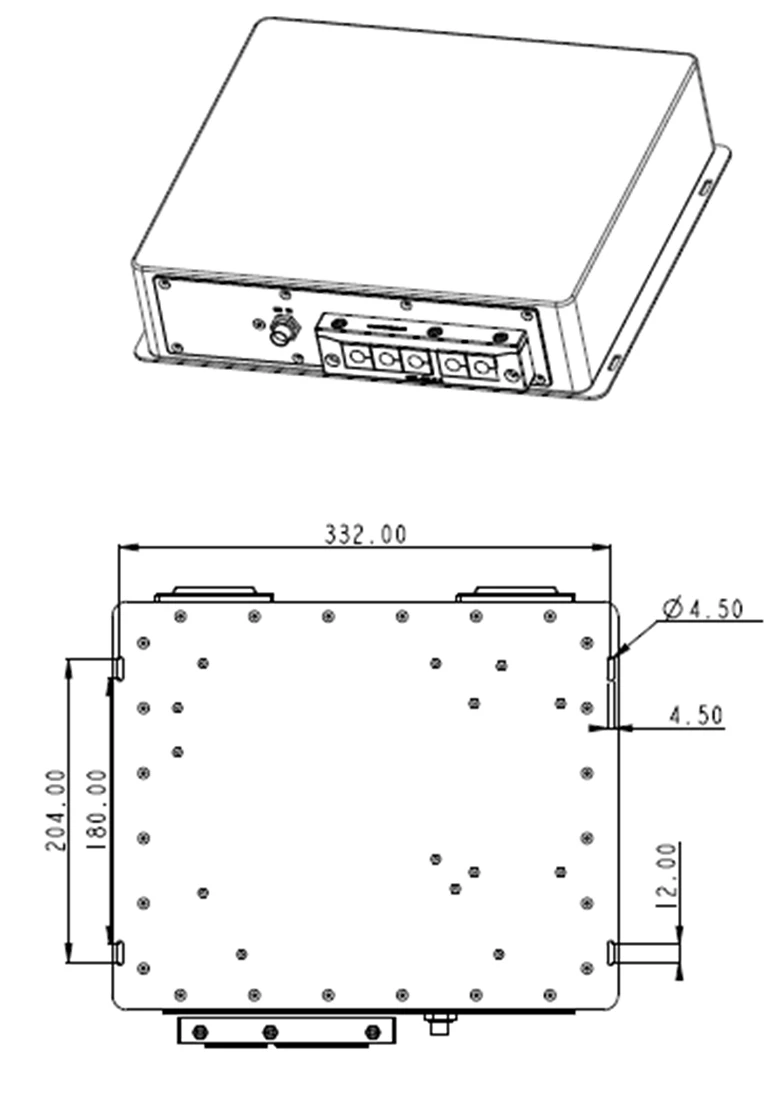

TWB-7010 2D Drawing with Dimensions
