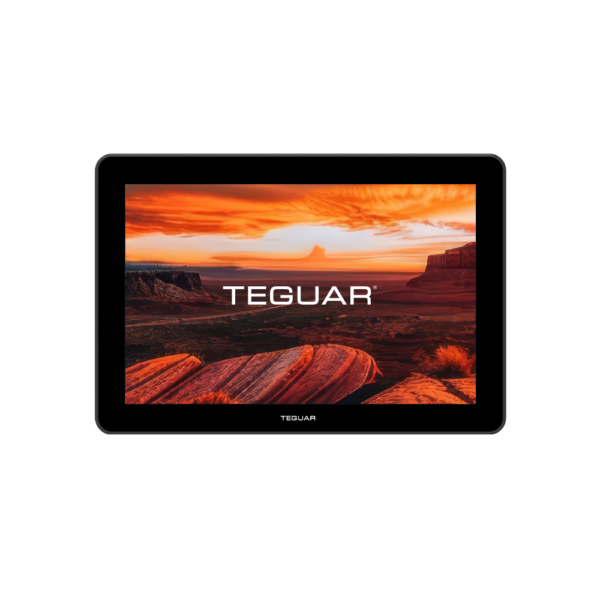

Pinnacle TP-7200-12

12.1" Core Ultra Panel PC
Available – Buy Now or Contact Us for Quick Quote

Description

The 12.1” Panel PC from the TP-7200 Series is designed to be the pinnacle its kind, sure to exceed your expectations wherever it’s needed. Its Core Ultra processor offers extremely high performance while maintaining the fanless passive cooling of the Pinnacle series. If you need a step further in the speed and efficiency department, add a boost in the form of a compatible Hailo card.

Our slimmest panel PC yet requires up to 20% less installation space compared to traditional models, making it ideal for environments where every inch matters. The elegant construction maintains its durable quality with robust fanless cooling and an IP66 rated front bezel, built to withstand year after year of industrial demands. Finally, a direct bonded display provides a precisely responsive touch and great visual clarity, with either PCAP or resistive touch options.

Teguar sets the bar high when it comes to screen visibility in the industrial setting. Your operators will notice the difference with this bright, high-resolution display, designed to deliver exceptional user experience even in challenging environments.

For sheer power, durability, and space optimization, look no further than the TP-7200-12, designed from end to end to be the ultimate panel PC solution.

Key Highlights

  • Latest Fanless Meteor Lake Processor
  • 12.1″ High Brightness Display with Direct Bonded Touch
  • USB-C, Digital IO, HDMI Ports, Dual M.2 NVMe
  • Stunning Sleek Form Factor
  • Solid Cast-Aluminum Housing
  • Windows 11 Pro and IOT

Starting at: $1,931.32

Customize & Buy

Primary Components

Processor FamilyIntel Core Ultra Series 14th Generation Meteor Lake
Processor ModelCore Ultra 5 - 125U
Processor Speed2x Low-Power Efficient Cores up to 2.1GHz, 2x Performance Cores up to 4.3GHz, 8x Efficient Cores up to 3.6GHz
Memory Type1x DDR5 SO-DIMM
Memory Support8GB, 16GB, 32GB
Storage Type1x M.2 M Key 2242 NVME SSD Slot, 1x M.2 M Key 2280 NVME SSD Slot
Storage Support128GB-1TB

Display

Screen Size12.1"
Resolution1280 x 800 (WXGA)
Screen Ratio16:10
Brightness500 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), Resistive

Power

Input Voltage Range12-24V DC
Max Power Consumption60W
Standard Power AdapterOptional 100W USB-C PD PSU, Optional 90W 3-Pin Terminal Block PSU (19V/4.74A)

Operating Systems

WindowsWindows 10 IoT, Windows 11 IoT, Windows 11 Pro
LinuxLinux Ubuntu 24.04 or above (Contact your sales rep for more information)

Compatibility

Security HardwarefTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option), 1x M.2 2242 M-Key slot for NVMe SSD or AI Accelerator, 1x M.2 2280 M-Key slot for NVMe SSD
Expansion Module supportI/O Expansion Area comes by default with 2x USB 2.0 Ports, Options for 2nd COM and 8-Pin GPIO/DIO are Available

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 93% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel
ColorBlack
Control ButtonsPower Button
Mounting OptionsPanel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFiOptional WiFi 6E
BluetoothOptional Bluetooth 5.2

Weight / Dimensions

Weight2.8 kg (6.2 lbs)
Dimensions307 x 210 x 48.5 mm (12.1 x 8.3 x 1.9 in)

Certification

CertificationsCE, FCC

Warranty

WarrantyUp to 5 Years

For AI Data Processing – Complex Machine Vision: With the built-in AI expansion, Pinnacle can accommodate a dedicated NPU right on the board, offering significant increase in AI power over the one included in its chip. This allows for viewing and parsing graphics-intensive data in real-time when monitoring a production line or other facilities.

For Most Compact Presentation – Shallow Wall Mounting: Pinnacle is the most compact panel PC ever.  You can fit it into tight control panels and take up less of that valuable real estate.  Show your customers more of your content, and less black bezel.

For Wide-Scope Compatibility – Easy System Integration: You can integrate TP-7200-12 into your legacy SCADA and your next-generation Edge AI applications. Pinnacle has USB 3.2, USB-C, and 2.5 GB LAN for connectivity to the newest systems with high bandwidth requirements. Pinnacle also includes COM ports for serial communication with legacy devices, and GPIO for direct interaction with simple logic devices.

Dimensional Drawings & I/Os

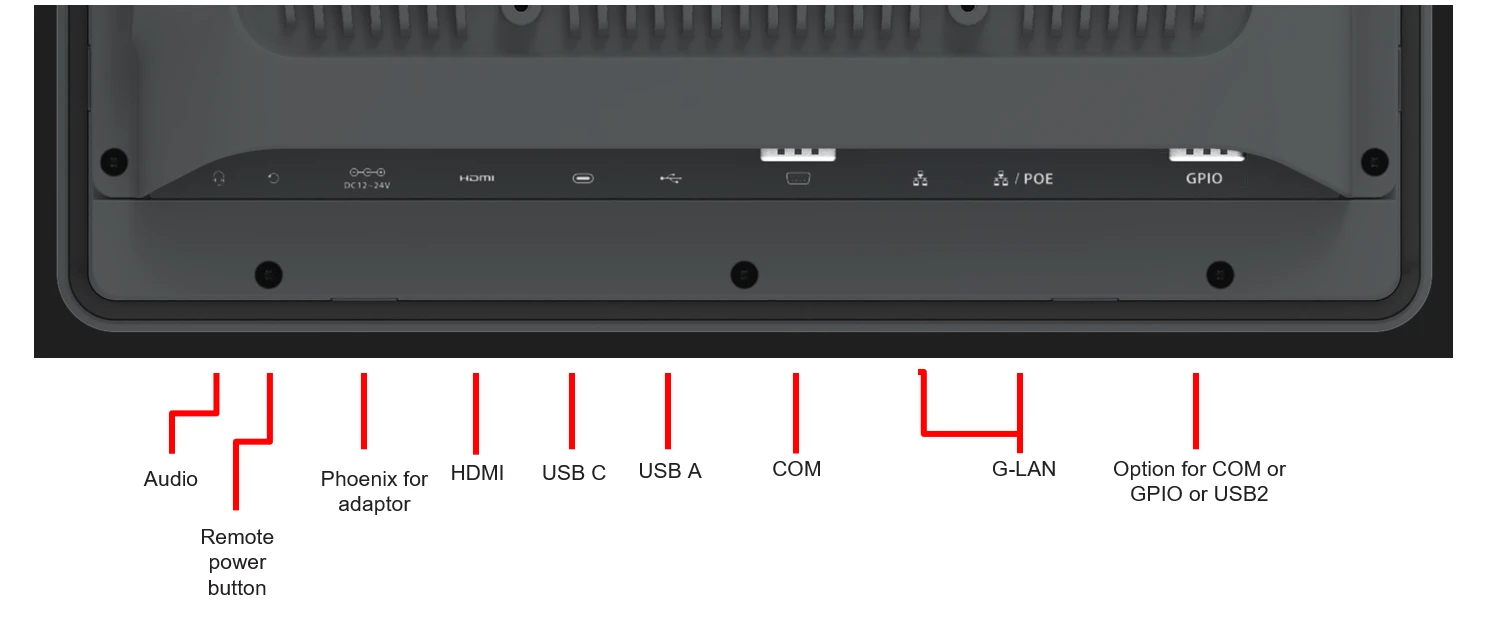

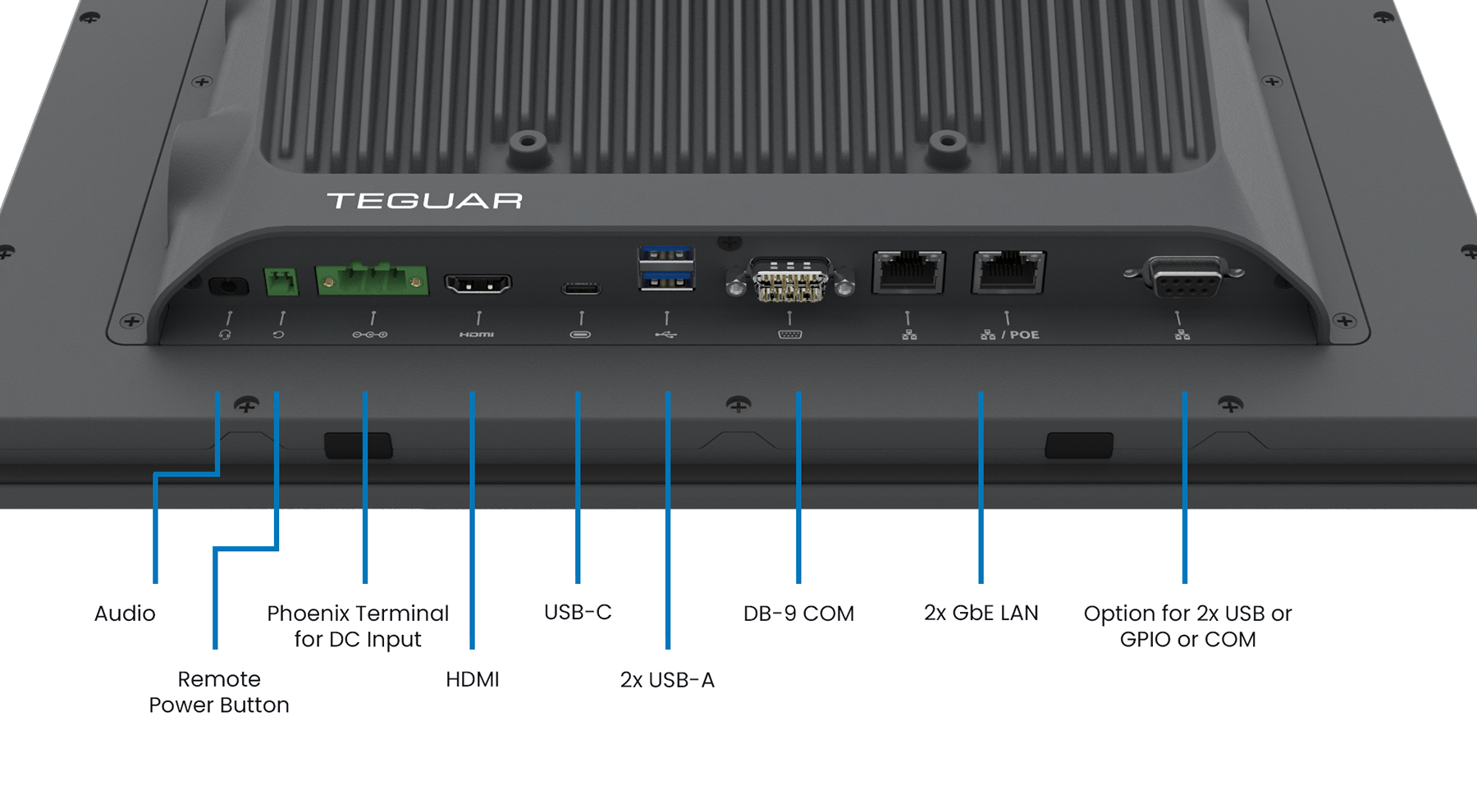

Inputs / Outputs

TP-7200 IO-Diagram

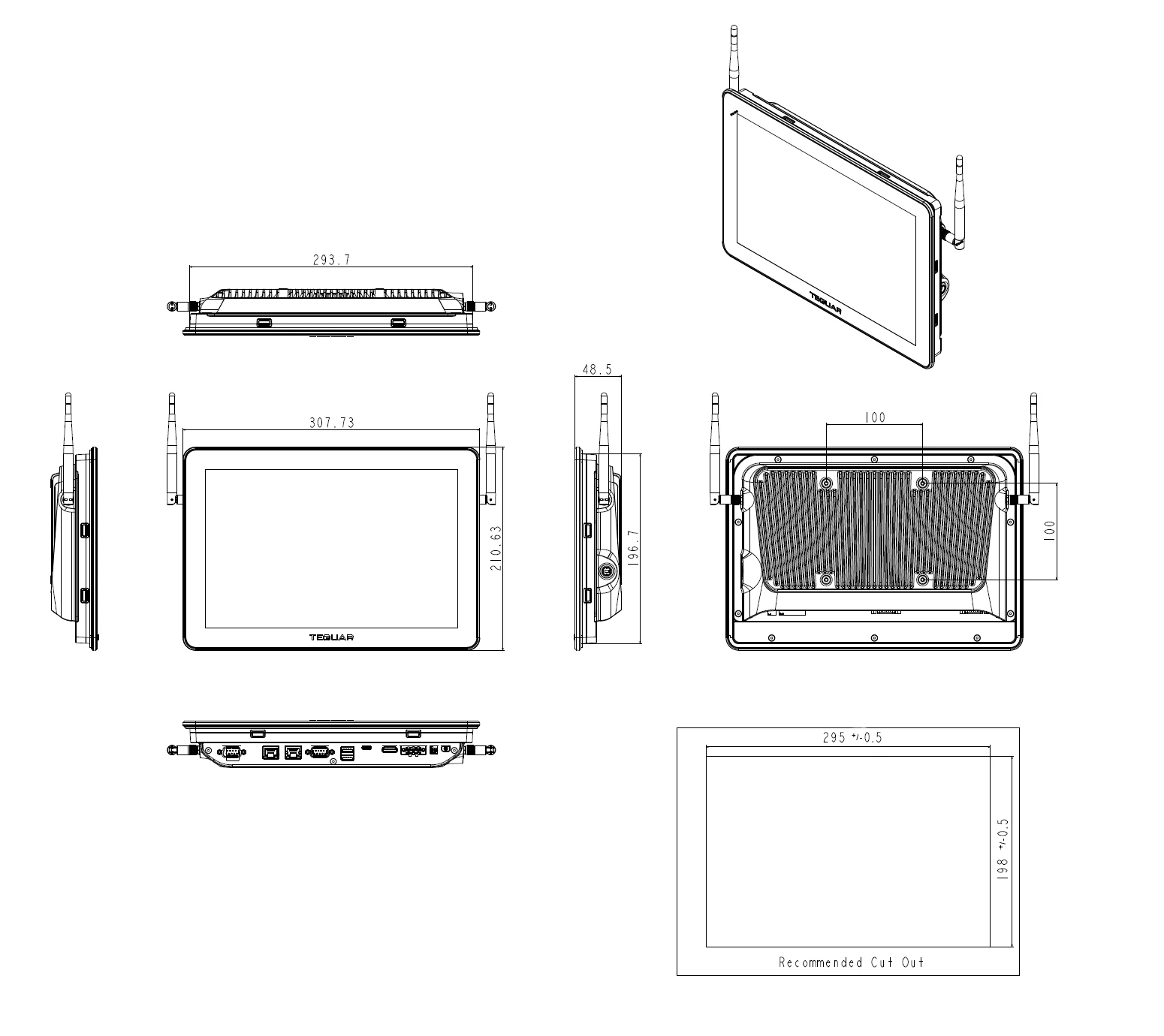

Technical Drawings

Pinnacle-Panel-PC-TP-7200-12-2D-Drawing
