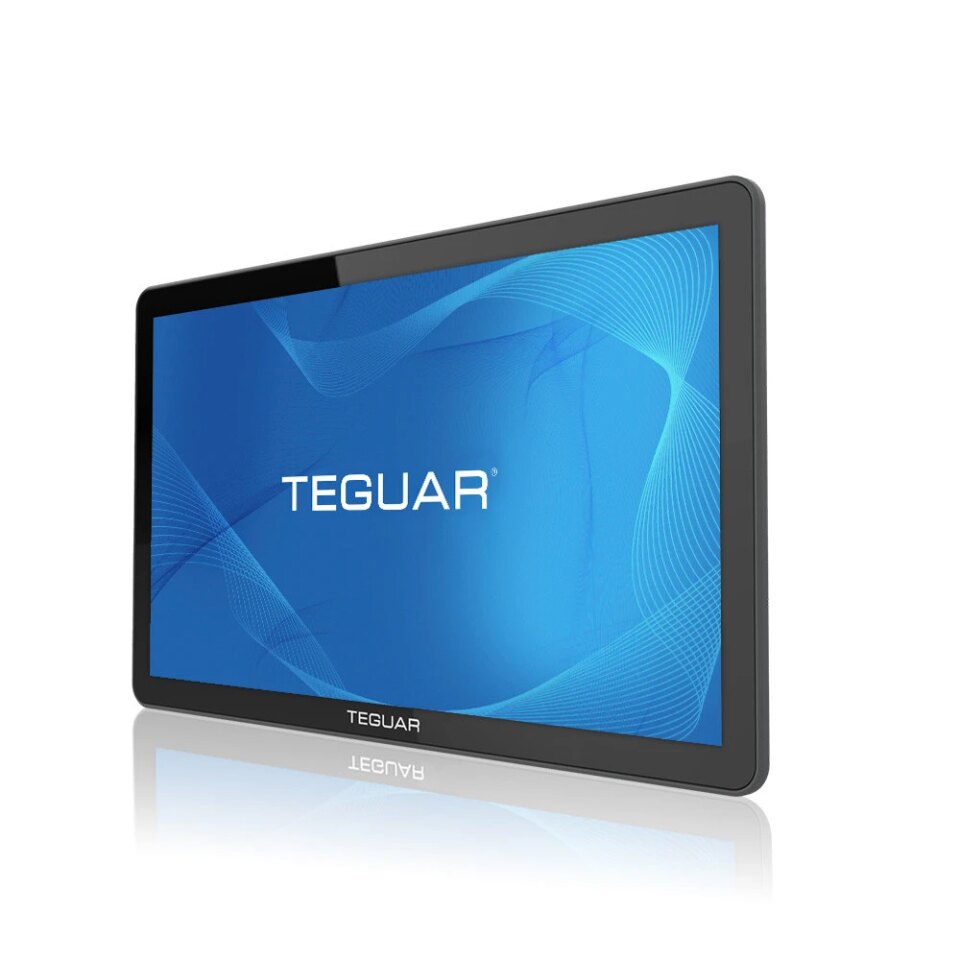

The TP-7200-16 is a 15.6-inch high-performance industrial panel PC designed for OEMs, system integrators, and industrial manufacturers that require exceptional computing power, a large Full HD display, and long-term reliability. As the flagship model in Teguar’s Pinnacle Series, it combines the Intel® Core™ Ultra 5 125U processor with a rugged fanless design, making it ideal for industrial automation, edge AI, machine vision, advanced HMI applications, and data-intensive manufacturing environments.
Engineered for demanding industrial applications, the TP-7200-16 features a solid cast-aluminum enclosure, passive fanless cooling, and an IP65-rated front bezel to withstand dust, moisture, and continuous operation in harsh environments. Its 15.6-inch Full HD direct bonded display delivers outstanding image clarity, reduced reflections, and responsive touch performance with up to 800 nits of brightness, allowing operators to confidently monitor equipment and production data in bright factory settings. The display features projected capacitive (PCAP) touch technology for an intuitive, responsive user experience.
Built for next-generation industrial computing, the TP-7200-16 supports DDR5 memory, dual M.2 expansion slots for flexible storage and system configuration, USB-C with DisplayPort, HDMI, dual Ethernet including 2.5Gb LAN, serial COM ports, GPIO expansion, and optional Power over Ethernet (PoE). One of the M.2 slots can also be configured with an optional AI accelerator, allowing customers to tailor the system for edge AI applications. Whether you’re modernizing legacy equipment or deploying intelligent automation systems, the TP-7200-16 delivers the performance, connectivity, and flexibility required for today’s most demanding industrial applications.
Why Choose the Pinnacle Series?
High-Performance Computing for Advanced Industrial Applications
Powered by the Intel® Core™ Ultra 5 125U processor and high-speed DDR5 memory, the TP-7200-16 is built for demanding workloads including edge AI, machine vision, industrial automation, robotics, and advanced HMI systems where processing performance directly impacts productivity.
Large Full HD Display for Improved Operator Visibility
The 15.6-inch Full HD display provides ample screen space for SCADA systems, dashboards, machine controls, and production monitoring. With up to 800 nits of brightness and direct bonded PCAP touch technology, operators benefit from excellent visibility, accurate touch response, and reduced glare in industrial environments.
Rugged Fanless Design Built for Continuous Operation
A passive fanless cooling system eliminates moving parts that commonly fail in industrial environments, reducing maintenance while supporting dependable 24/7 operation. Combined with a cast-aluminum housing and IP65-rated front bezel, the TP-7200-16 is built for long-term reliability in demanding applications.
Ready for Modern Industrial Networks
USB-C, HDMI, dual Ethernet including 2.5Gb LAN, serial COM ports, optional GPIO, dual M.2 expansion, and optional PoE make it easy to integrate the TP-7200-16 into both legacy control systems and modern edge computing architectures. For customers deploying AI at the edge, one M.2 slot can be configured with an optional AI accelerator, providing additional flexibility for future-ready industrial applications.
Frequently Asked Questions

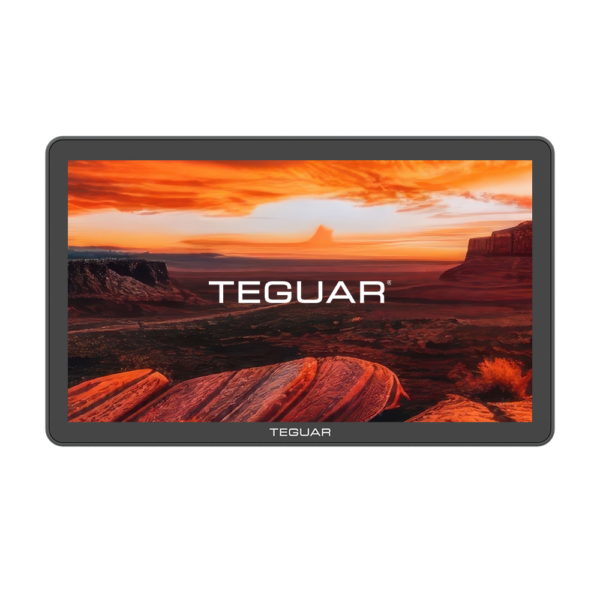

What makes the TP-7200-16 different from the TP-4800 Series?
The TP-7200-16 is built for customers who need significantly more processing power. It features the Intel® Core™ Ultra 5 125U processor, DDR5 memory, dual M.2 expansion, and a larger 15.6-inch Full HD display, making it well suited for advanced industrial automation, machine vision, and edge AI applications.
Can the TP-7200-16 support edge AI and machine vision applications?
Yes. The TP-7200-16 is powered by the Intel® Core™ Ultra 5 125U processor with integrated AI capabilities. One of its dual M.2 expansion slots can also be configured with an optional AI accelerator, providing additional computing performance for edge AI inference, machine vision, and intelligent manufacturing applications.
