Pinnacle TP-4800-12

12.1" Panel PC
Available – Buy Now or Contact Us for Quick Quote

Description

The 12.1” Panel PC from the TP-4800 Series is designed to be the pinnacle its kind, sure to exceed your expectations wherever it’s needed. Its fanless Celeron processor sits right at the perfect balance of strong performance, great value, and efficient power consumption.

Our slimmest industrial panel PC yet requires up to 20% less installation space compared to traditional models, making it ideal for environments where every inch matters. The elegant construction maintains its durable quality with a fanless cooling design and an IP66 rated front bezel, built to withstand year after year of industrial demands. Finally, a direct bonded display provides a precisely responsive touch and great visual clarity, with either PCAP or resistive touch options.

Teguar sets the bar high when it comes to screen visibility in the industrial setting. Your operators will notice the difference with this bright, high-resolution display, designed to deliver exceptional user experience even in challenging environments.

For efficiency, durability, and maximum space optimization, look no further than the TP-4800-12, designed from end to end to be the ultimate panel PC solution.

Key Highlights

  • Latest Fanless Intel® Elkhart Lake Processor
  • 12.1″ High Brightness Display with Direct Bonded Touch
  • PoE, USB-C, Digital IO, HDMI Ports
  • Stunning Sleek Form Factor
  • Solid Cast-Aluminum Housing
  • Windows 11 Pro and IOT

Starting at: $1,525.34

Customize & Buy

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6413
Processor Speed1.8 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support8GB, 16GB, 32GB
Storage Type1x M.2 2280 NVME SSD slot
Storage Support128GB-2TB

Display

Screen Size12.1"
Resolution1280 x 800 (WXGA)
Screen Ratio16:10
Brightness500 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), Resistive

External I/O Ports

USB1x USB 3.2 Type-C (DP 1.4A), 2x USB 3.2
Serial / Com2x COM
Serial Protocol DetailCOM1 & COM2 Support RS-232/422/485 in DB9 Connector, COM2 is optional and can be replaced by other IO if selected
Ethernet / LANOptional POE PD Class 5 802.3bt, 2x RJ45 LAN - 1xGbE and 1x2.5GbE
Video Outputs1x DisplayPort via USB-C Alt Mode, 1x HDMI
Other PortsIO space reserved for customization. Can be 2nd COM, additional 2 USB 2.0 ports, or 8 pin GPIO/DIO

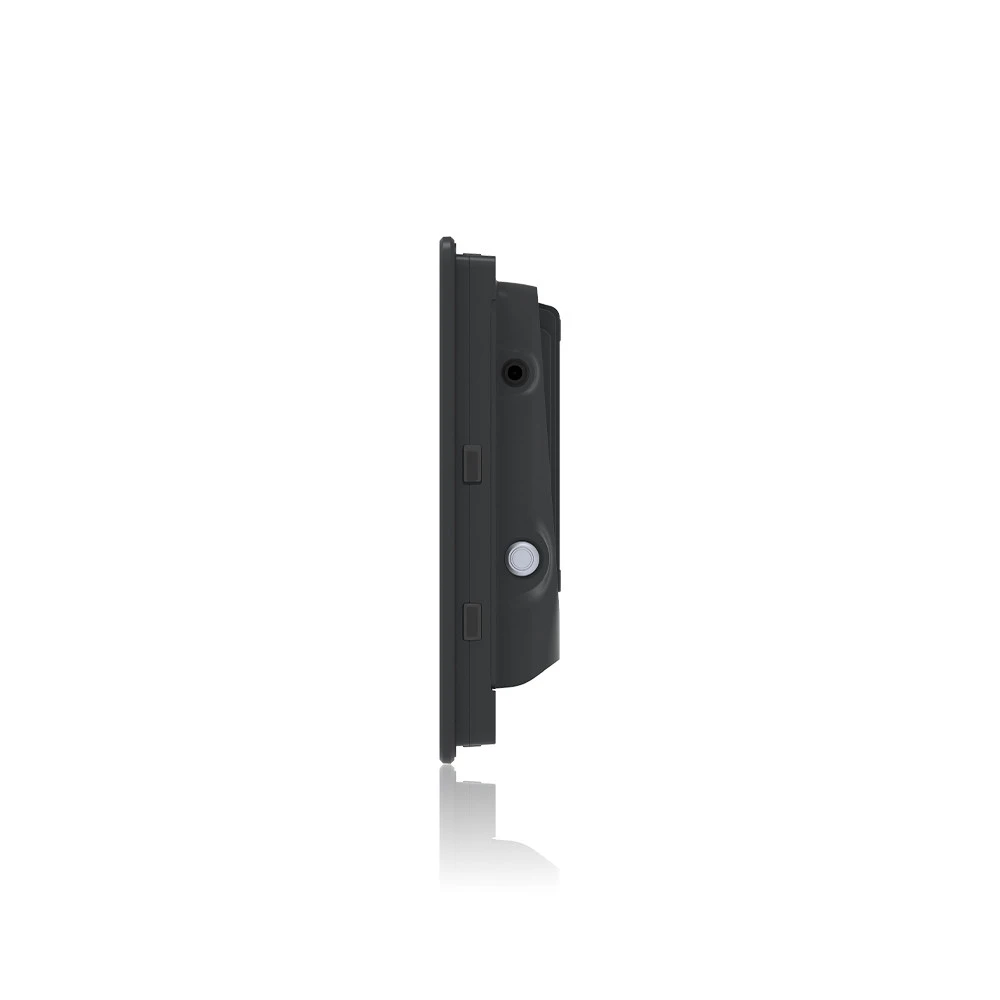

Audio Ports1x 3.5mm Audio Line-Out/Mic-In

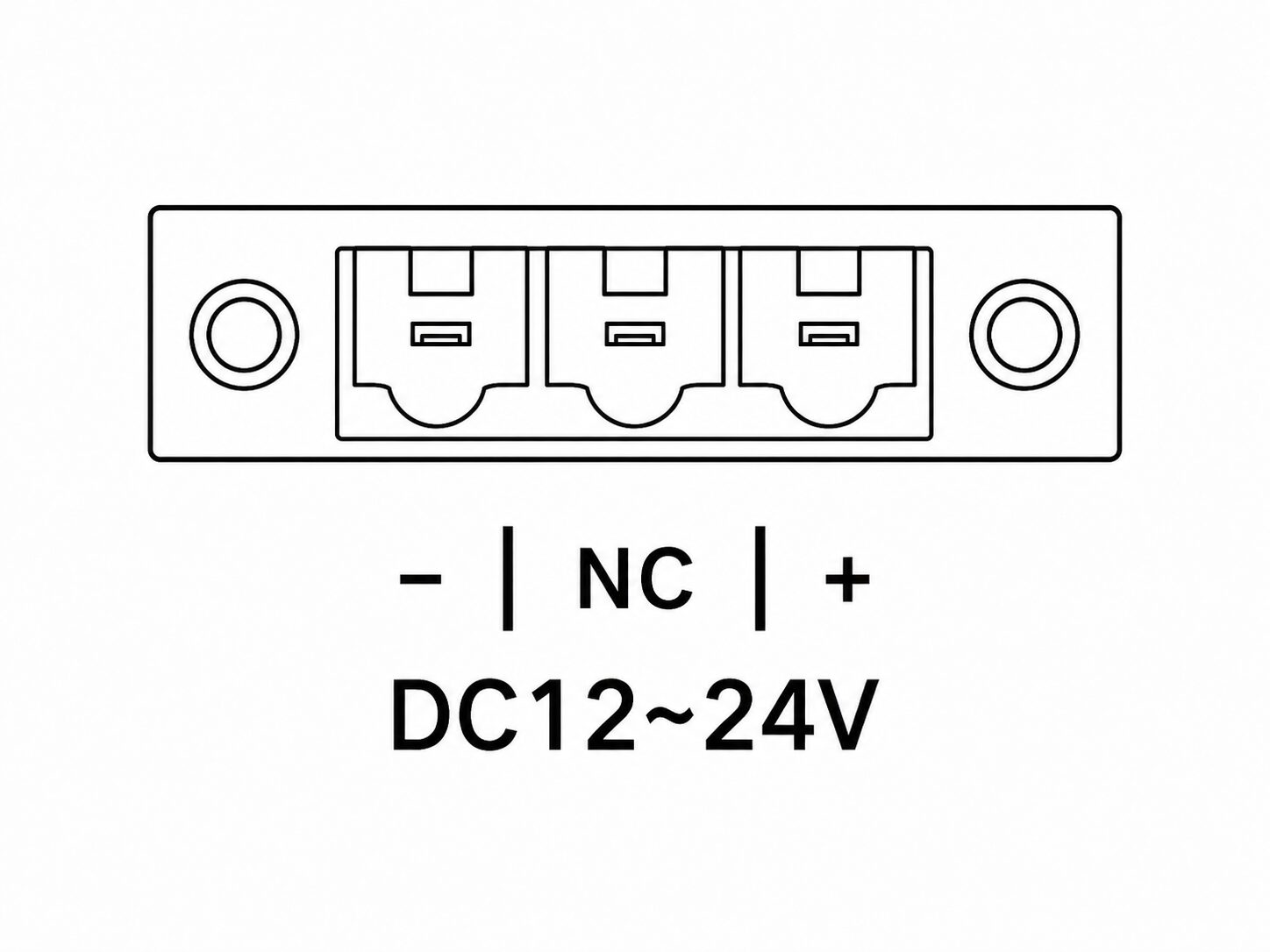

Power Input PortOptional POE, USB Type-C PD Input, 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range12-24V DC
Max Power Consumption38W
Standard Power AdapterIncludes 12V AC/DC Adapter, 5A, 60W

Operating Systems

WindowsWindows 10 IoT, Windows 11 IoT, Windows 11 Pro

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)

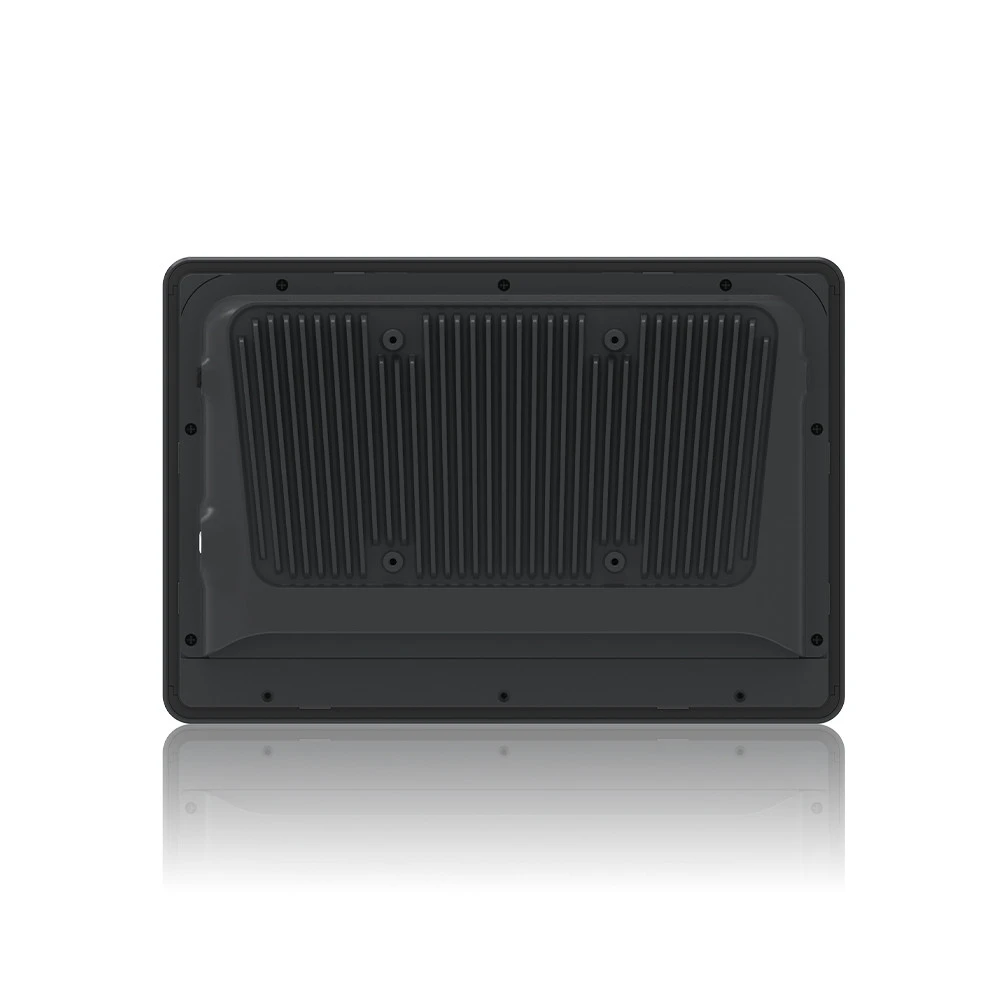

Cooling SolutionPassive – Fanless with Heatsink

Enclosure

MaterialAluminum
IP RatingIP66 Front Bezel
ColorBlack
Control ButtonsPower Button
Mounting OptionsPanel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFiOptional WiFi 6E through Intel AX210
BluetoothOptional Bluetooth 5.3

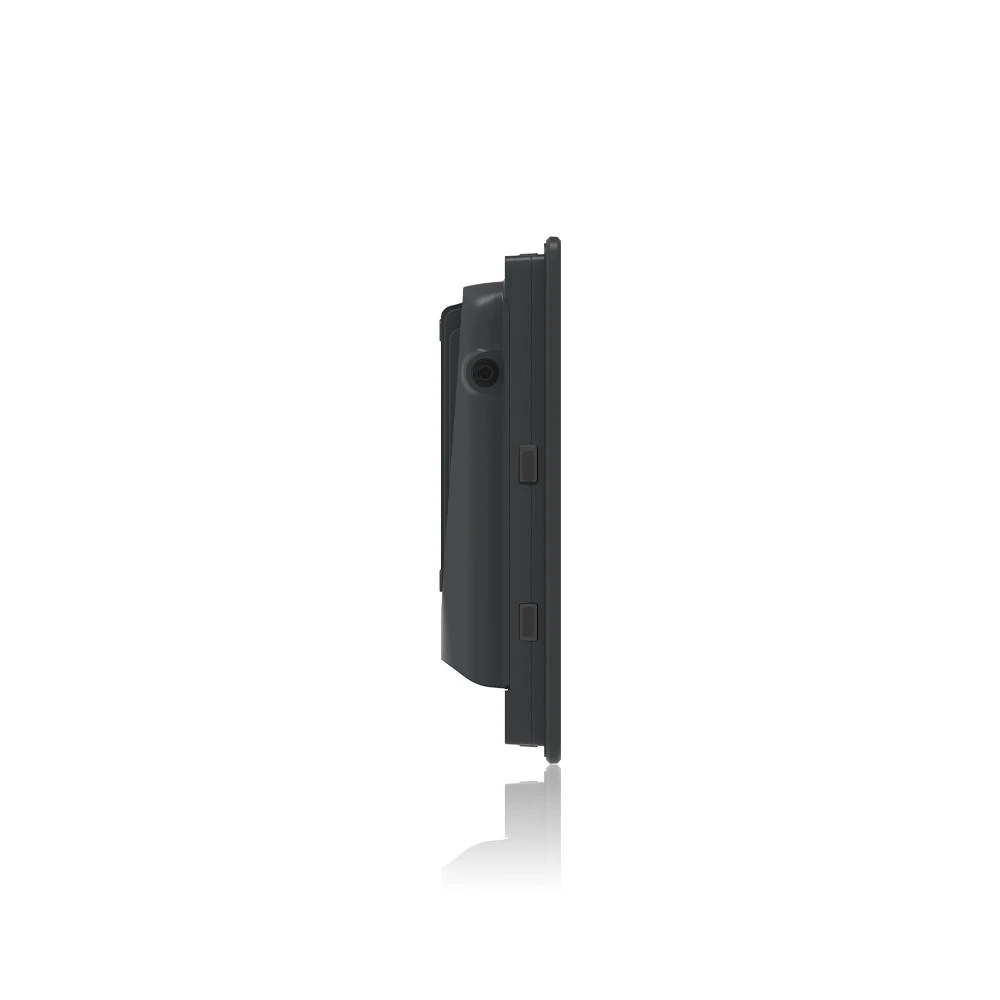

Weight / Dimensions

Weight2.7 kg (6.0 lbs)
Dimensions307 x 210 x 49 mm (12.1 x 8.3 x 1.9 in)

Warranty

WarrantyUp to 5 Years

For Power over Ethernet – Enabling Industrial Automation Control: Pinnacle has optional PoE to allow for single cable installation without the need to run separate AC or DC power.  Simply drop in the TP-4800-12 and get it running with network connectivity and power in a single cable in a few minutes.

For Most Compact Presentation – Shallow Wall Mounting: Pinnacle is the most compact panel PC ever.  You can fit it into tight control panels and take up less of that valuable real estate.  Show your customers more of your content, and less black bezel.

For Wide-Scope Compatibility – Easy System Integration: You can integrate TP-4800-12 into your legacy SCADA and your next-generation Edge AI applications. Pinnacle has USB 3.2, USB-C, and 2.5 GB LAN for connectivity to the newest systems with high bandwidth requirements. Pinnacle also includes COM ports for serial communication with legacy devices, and GPIO for direct interaction with simple logic devices.

Dimensional Drawings & I/Os

I/O Diagram Images

Pinnacle Panel PC TP-4800 IO Diagram

Tech Diagram Images

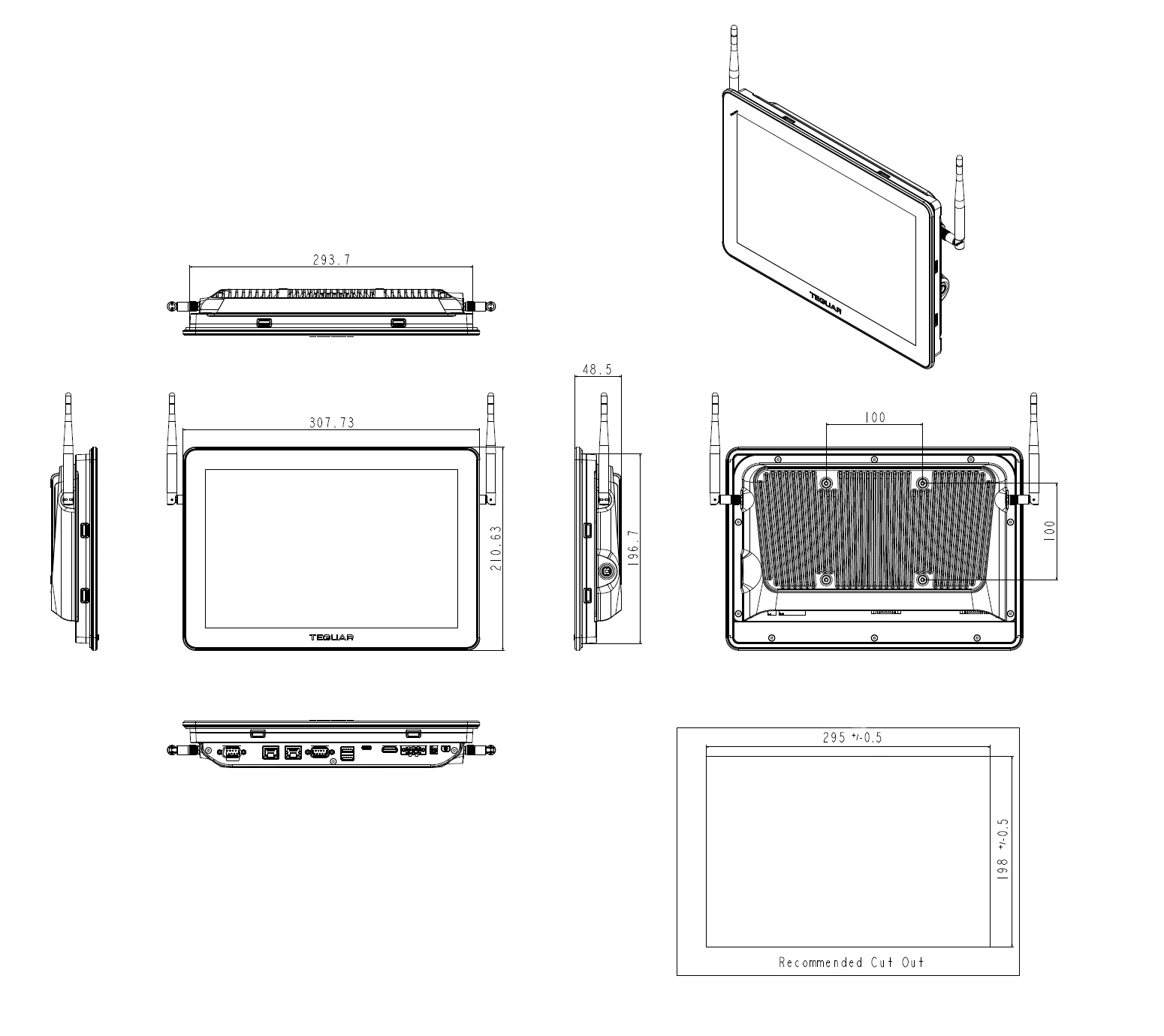

Pinnacle Panel PC TP-4800-12 2D Drawing
