Prism TMT-7465-10

10" Core Ultra Healthcare Tablet

Available – Contact Us for Quick Quote

Prism Healthcare Tablet with Keyboard Attachment

Description

The Prism Healthcare Tablet is a medical professional’s choice for hygienic office use, EMR management, and smart operation in any setting.

The TMT-7465-10 displays beautifully on a 1080p high-resolution PCAP touch screen. Also, the 10” screen boasts a high brightness of 800 nits, making it readable in sunlight or under bright operating room lights. The antimicrobial enclosure, equipped with a carry handle, houses a magnesium chassis, which provides greater strength at a lighter weight than aluminum. Further, the Healthcare Tablet’s accessible backside bay allows for hot-swapping the battery without interrupting use.

With ease of use, transport, and maintenance, Prism lets you see portable healthcare in a whole different light.

Key Highlights

Intel® Core™ Ultra 5/7 Processor up to 5.20 GHz
Full portability with a hot-swappable battery
Shock and drop resistant, fully water-resistant
Windows 11 Compatible
Easy access battery and SSD for convenient replacement and upgrade
Carry handle makes for improved portability on a lightweight form factor

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core Ultra Series 2 15th Generation Arrow Lake
Processor Model	Core Ultra 5 225U, Core Ultra 7 255U, U7 Option
Processor Speed	2x Efficient Cores up to 4.2 GHz, U7 Option, 2x Perfomance Cores up to 5.2 GHz, U7 Option, 2x preforamnce Cores up to 4.8 GHz, U5, 8x Efficent Cores up to 3.8 GHz, U5
Memory Type	Onboard LPDDR5
Memory Support	16GB, 32GB
Storage Type	1x M.2 2280 NVME SSD slot, 1x M.2 slot for SSD
Storage Support	M.2: 256GB-1TB

Display

Screen Size	10.1"
Resolution	1920 x 1200 (WUXGA)
Screen Ratio	16:10
Brightness	1000 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 3.2, 1x USB 3.2 Type-C
Ethernet / LAN	1x RJ45 GbE LAN
Audio Ports	1x Headphone Jack
Power Input Port	5.0mm DC-in Jack

Power

Standard Power Adapter

19Vdc, 3.78A, US Power Cord

Battery

Battery Type

Hot Swappable 11.4V/3800mAh Battery, Optional Hot Swappable 11.4V/5400mAh, Optional Hot Swappable 11.4V/8000mAh

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

fTPM 2.0

Multimedia

Camera	Front: 5MP, Rear: 13MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	-10°C - 60°C (14°F – 140°F (With WT devices))
Storage Temperature	-55°C - 70°C (-67°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	0% – 90% Non-condensing

Enclosure

Material	PC+ABS and Magnesium-Aluminum Alloy
Color	White
Led Indicator Light	Battery, Charging Indicator
Control Buttons	Brightness Down, Brightness Up, Power Button
Programmable Function Buttons	5x Programmable Function Keys
Shock Rating	MIL-STD-810H

Peripherals & Wireless Connectivity

WiFi	Wi-Fi 802.11be, 2.4/5/6 GHz Three band
Bluetooth	Bluetooth 5.4
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional NFC, 125Khz & 13.5MHz

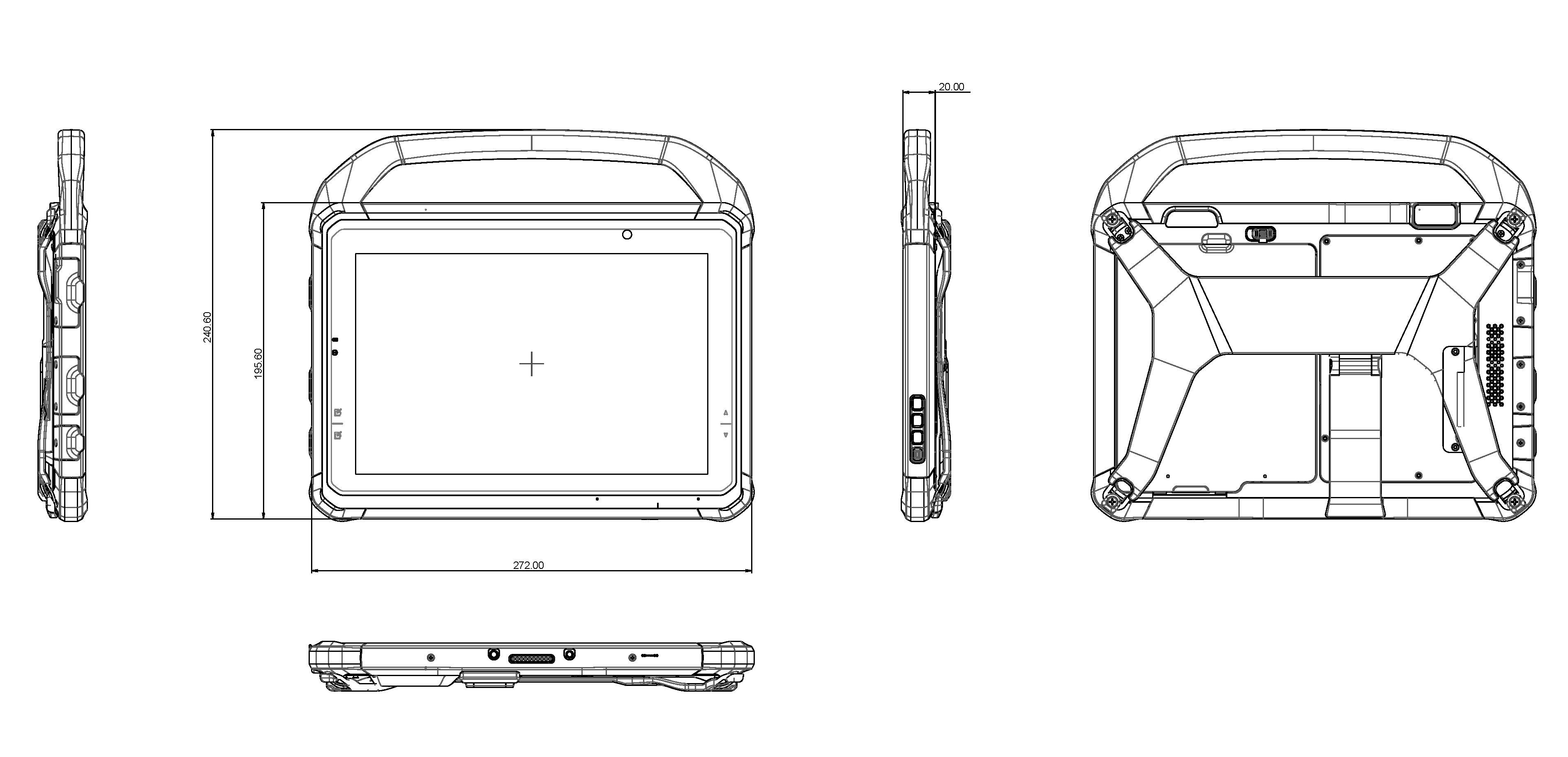

Weight / Dimensions

Weight	1.32 kg (2.9 lbs)
Dimensions	272 x 20 x 195.6 mm (10.7 x 0.8 x 7.7 in)

Warranty

Up to 5 Years

Medical Offices: With an antimicrobial, fully water-resistant enclosure, the TMT-7465-10 is built to be sanitized time and time again. This makes it ideal for receptionists and nurses to use and pass to patients to view information, sign forms, etc.

EMR Management: The 10” Healthcare Tablet provides a stable platform for software needed to create and maintain medical records. These records need to be readily accessible at the point of care, which include the patient’s bedside and the emergency room or operating room.

Point-of-care: Lightweight and easy to carry for healthcare providers on the move, the Prism tablet can connect to Wi-Fi and bring patient-centric care anywhere, from the hospital bed to a patient’s home. Windows 11 provides a user-friendly, seamless interaction in diverse settings.

See the data sheet Warranty Download Drivers
