Tech Specs
Primary Components
| Processor Family | Intel Atom Mobile Cherry Trail |
| Processor Model | T3 Z8350 |
| Processor Speed | 1.44 GHz |
| Memory Type | 1x DDR3 SO-DIMM |
| Memory Support | 2GB, 4GB, 8GB |
| Storage Support | 32GB (Standard), 64GB (Optional) |
Display
| Screen Size | 8" |
| Resolution | 1920 x 1200 (WUXGA) |
| Screen Ratio | 16:10 |
| Brightness | 400 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
| Glass Type | Gorilla Glass |
External I/O Ports
| USB | 1x Micro USB Port |
| Video Outputs | 1x Micro HDMI |
| Audio Ports | 1x 3.5mm Headphone Jack |
Battery
| Battery Type | Removable Battery |
| Battery Operating Time | 8hrs |
Operating Systems
| Windows | Windows 10 IoT |
| Android | Android 6.0.1 |
Multimedia
| Speakers | 1x 1W Speaker |
| Camera | Front: 2MP, Rear: 5MP |
| Microphone | 2x Built-in Microphones |
Thermal & Environmental
| Operating Temperature | -10°C - 50°C (14°F – 122°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 5% – 95% Non-condensing |
| Storage Humidity | 5% – 95% Non-condensing |
Enclosure
| Material | Double Injection |
| IP Rating | IP65 |
| Drop Rating | 4ft Drop Protection |
| Approved Cleaning Solutions | Acetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex, 3M HB Quat |
Peripherals & Wireless Connectivity
| WiFi | WLAN |
| Bluetooth | Bluetooth 4.0 |

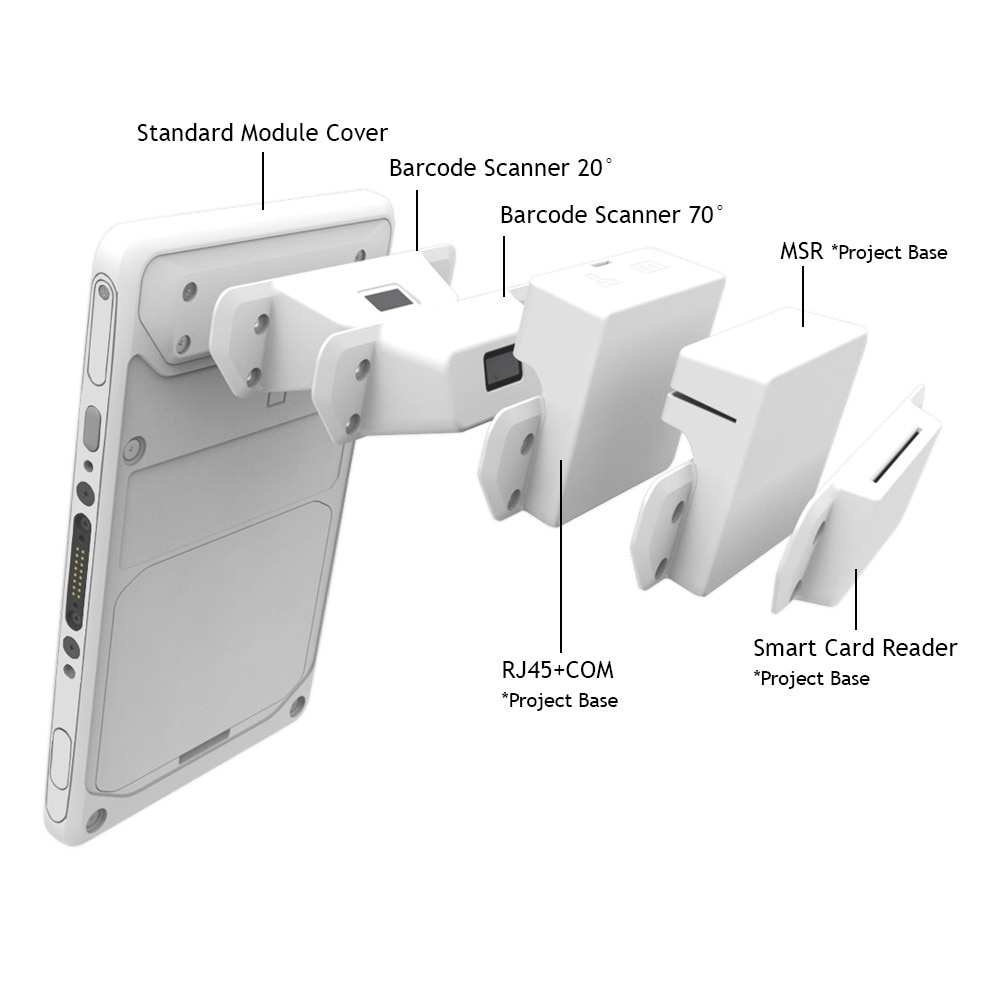

| Barcode Scanner | Optional 1D/2D Barcode Scanner |
| RFID | NFC ISO/IEC14443 A & B, Felica, MIFARE and NFCIP-1 & 2 |
| Sensors | Accelerometer, Light Sensor |
Weight / Dimensions
| Weight | 0.7 kg (1.5 lbs) |
| Dimensions | 240 x 142 x 14.5 mm (9.4 x 5.6 x 0.6 in) |
Certification
| Certifications | CE, FCC, FCC ID |
Warranty
| Warranty | Up to 5 Years |
