TME-5040-22

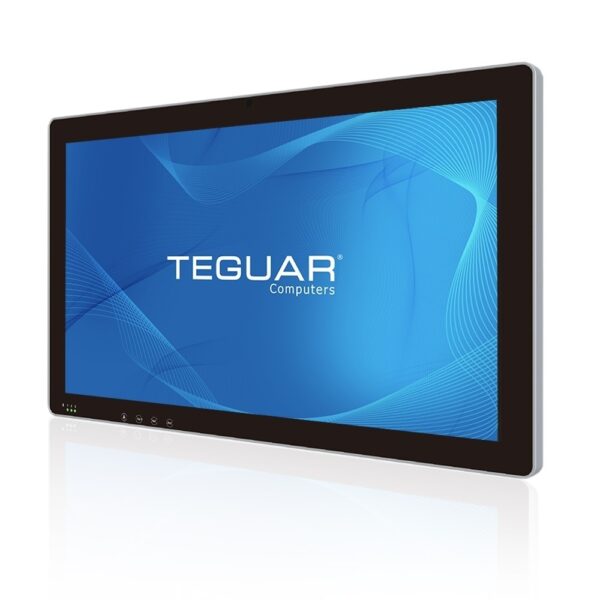

22" Medical Computer with Hot Swappable Batteries

Available – Contact Us for Quick Quote

22" Medical PC with Hot-Swap Batteries | TME-5040-22

22" Medical Computer Hot Swappable Batteries | TME-5040-22

Description

The TME-5040-22 is ideal for a hospital cart or medical workstation on wheels. This mobile medical computer has three hot-swappable batteries that provide up to 12 hours of power, so you can mount it on a non-powered medical cart for a lightweight, ergonomic solution. This medical PC has an Intel Skylake U processor and a wide variety of I/Os. The front panel is true flat to prevent the buildup of dust and microbes. The antibacterial enclosure helps prevent the spread of germs and the front panel is IP65 rated, so this computer can be frequently sprayed and wiped down with medical grade cleaners. The TME-5040-22 is 60601-1 4th Edition medically certified and capable of adding additional isolated I/O for critical medical interfaces.

Key Highlights

21.5″ Full Flat Touchscreen
Intel Skylake U Processor

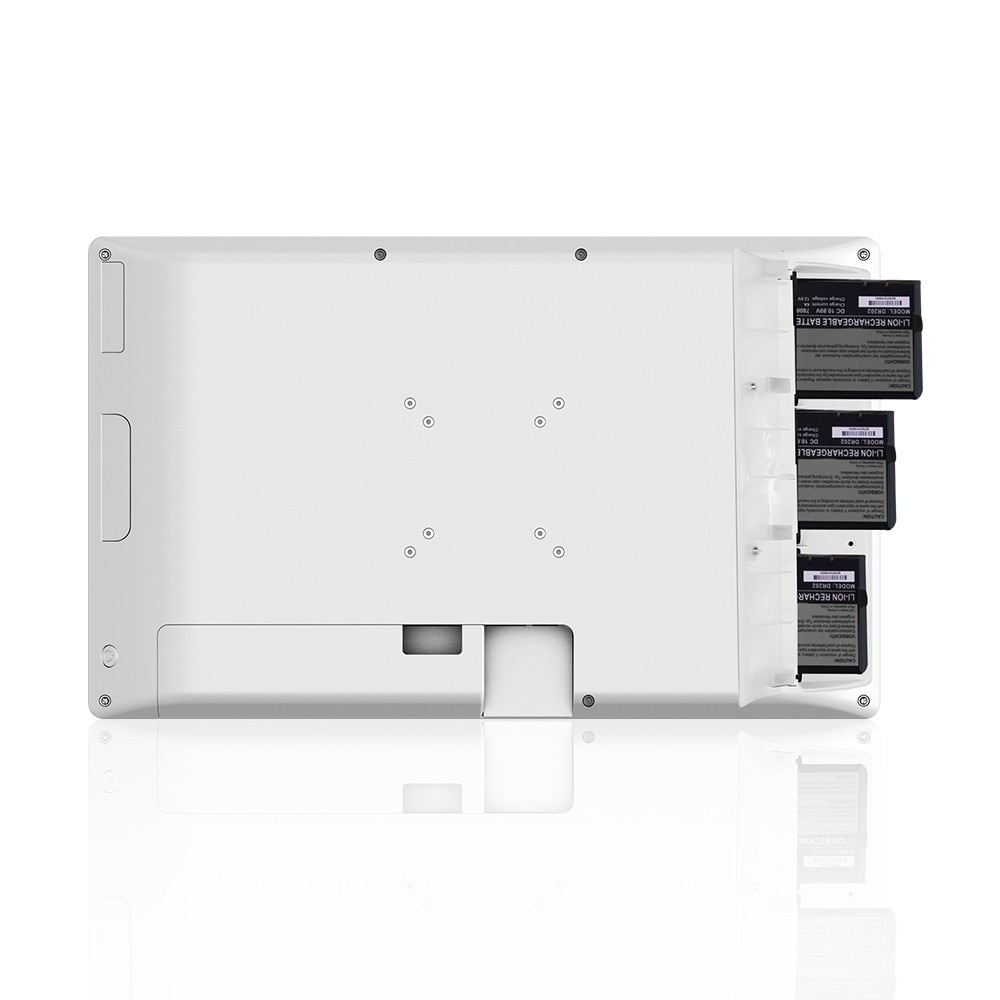

3 Hot Swappable Batteries for 24/7 Operation
Anti-Bacterial Enclosure and IP65 Protected Front Panel
24VDC USB to Power Peripherals
RFID & IC Card Reader

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Celeron or Core I 6th Generation Skylake
Processor Speed	Base 2.0 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible)
Storage Support	32GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Projected Capacitive

External I/O Ports

USB	4x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	2x RJ-48
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI
Other Ports	1x Powered USB 24V
Audio Ports	1x Audio Line-Out, 1x Mic-In

Power

Input Voltage Range

19V DC

Battery

Battery Type	Optional Hot Swappable Battery
Battery Operating Time	12hrs

Operating Systems

Windows

Windows 10 Pro

Expansion Slots

Internal M.2

1x M.2 Slot half-size Type E

Multimedia

Speakers	1x 3W Speaker
Camera	Optional 2MP Webcam

Thermal & Environmental

Operating Temperature	0°C - 30°C (32°F – 86°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Plastic
IP Rating	IP65 Front Bezel
Color	White
Led Indicator Light	Battery
Control Buttons	Power Button
Programmable Function Buttons	3x Programmable Function Keys
Mounting Options	VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	802.11 a/b/g/n WLA N card
Bluetooth	Bluetooth 4.0
RFID	1x RFID & IC Card Reader
Peripheral Other	Reading light

Weight / Dimensions

Weight	7.3 kg (16.1 lbs)
Dimensions	533 x 59 x 325 mm (21.0 x 2.3 x 12.8 in)

Certification

Certifications

CE, FCC Class A, LVD

Warranty

1 Year

Telemedicine Consultations: The TME-5040-22 enables healthcare professionals to conduct remote consultations with patients through video conferencing, allowing for virtual visits and reducing the need for in-person appointments.

Point-of-Care Documentation: With its mobile design and long battery life, the TME-5040-22 is ideal for documenting patient encounters and entering data directly at the point of care, eliminating the need for manual transcription and reducing errors.

Medication Administration: Nurses and caregivers can use the TME-5040-22 to verify and document medication administration, ensuring accurate dosage and improving medication safety protocols.

See the data sheet Warranty Download Drivers
