Tech Specs
Primary Components
| Processor Family | Intel Core-I Series 9th Generation Coffee Lake |
| Processor Model | Core i5-9500TE, Core i7-9700TE |
| Processor Speed | 1.8 GHz, 2.2 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 32GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 SATA3 2280 Slot |

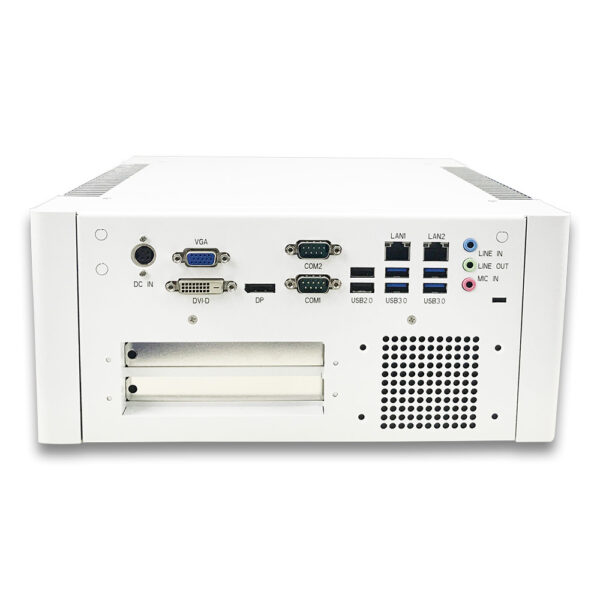

External I/O Ports
| USB | 2x USB 2.0, 4x USB 3.0 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | 2 x RS232/RS422/RS485 (RI/5V/12V) |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 1x DisplayPort 1.2, 1x DVI-D, 1x VGA |
| Audio Ports | 1x 3.5mm Audio Line-In, 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack |
| Power Input Port | 4-Pin DC-In Jack |
Power
| Input Voltage Range | 12-24V DC |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 |
Compatibility
| Security Hardware | Optional TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 for NVME SSD Support (Not at same time with Removable 2.5" HDD) |
Thermal & Environmental
| Operating Temperature | 0°C - 35°C (32°F – 95°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Humidity Range | 10% – 90% Non-condensing |
| Storage Humidity | 10% – 90% Non-condensing |
Enclosure
| Material | Aluminum |
| Color | White |
| Led Indicator Light | HDD Access, Power |
| Control Buttons | Power Switch |
Peripherals & Wireless Connectivity
| WiFi | 802.11 ac/a/b/g/n WLAN + BT module |
Weight / Dimensions
| Dimensions | 301 x 295.2 x 130 mm (11.9 x 11.6 x 5.1 in) |
Warranty
| Warranty | Up to 5 Years |
