TMB-5010

Medical Box Computer
Available – Contact Us for Quick Quote

Description

The TMB-5010 ensures the highest level of patient safety while delivering high value to your medical team. The Intel Skylake Core I CPU is fast and reliable and can withstand high amounts of environmental electromagnetic waves without interfering with medical equipment. This PC has a tough aluminum metal enclosure and its fanless design prevents the spread of dust and germs. Multiple COM ports for control applications, USB ports and WLAN give it flexibility to integrate with a wide variety of applications such as Surgical, Radiology and PACS (Picture Archiving Communication Systems). The TMB-5010 is designed to meet the nonstop demands of your medical team add value to patient care.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Medical Box PCs.

Key Highlights

  • High Performance 6th Gen Intel Core i3/i5/i7 CPU
  • White or Black Aluminum Bezel
  • HDD Anti-vibration Mechanism
  • 60601-1 4th Edition Certified
  • Fanless Heatsink Cooling System
  • CE, FCC, VCCI Class B
  • Intel Integrated HD Graphics 530

Primary Components

Processor FamilyIntel Core I series 6th Generation Skylake
Processor ModelCore i5-6500TE
Processor Speed2.3 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

External I/O Ports

USB4x USB 3.0
Serial / Com6x COM
Serial Protocol Detail5x RS-232, 1x RS-232/422/485
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x DisplayPort, 1x DVI-D
Other PortsOptional 4KV Isolation
Audio Ports1x Audio Line-In, 1x Audio Line-Out

Power

Max Power Consumption45.5W
Standard Power AdapterAC input 100~240V / 47~63Hz

Operating Systems

WindowsWindows 10 IoT, Windows 7 Pro

Compatibility

Security HardwareOptional TPM 2.0

Expansion Slots

Video Card SupportIntel HD Graphics 530

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum
ColorBlack, White
Control ButtonsPower Reset, Power Switch

Weight / Dimensions

Weight3 kg (6.6 lbs)
Dimensions306.6 x 188 x 63.3 mm (12.1 x 7.4 x 2.5 in)

Certification

CertificationsCE, FCC Class B, IEC 62133, 60601-1 4th Edition

Warranty

WarrantyUp to 5 Years

Surgical Applications: The TMB-5010 Series is well-suited for surgical environments, providing reliable computing power for surgical planning, documentation, and real-time data access during procedures.

Radiology: Radiology departments can benefit from the TMB-5010 Series by using it for image processing, diagnostic interpretation, and archiving of medical images in PACS systems.

PACS (Picture Archiving Communication Systems): The TMB-5010 Series supports PACS applications, allowing healthcare providers to securely store, retrieve, and share medical images and reports for efficient collaboration and decision-making.

Patient Monitoring and Data Management: The TMB-5010 Series can be utilized for patient monitoring, allowing healthcare professionals to access real-time patient data, track vital signs, and manage patient information effectively.

Dimensional Drawings & I/Os

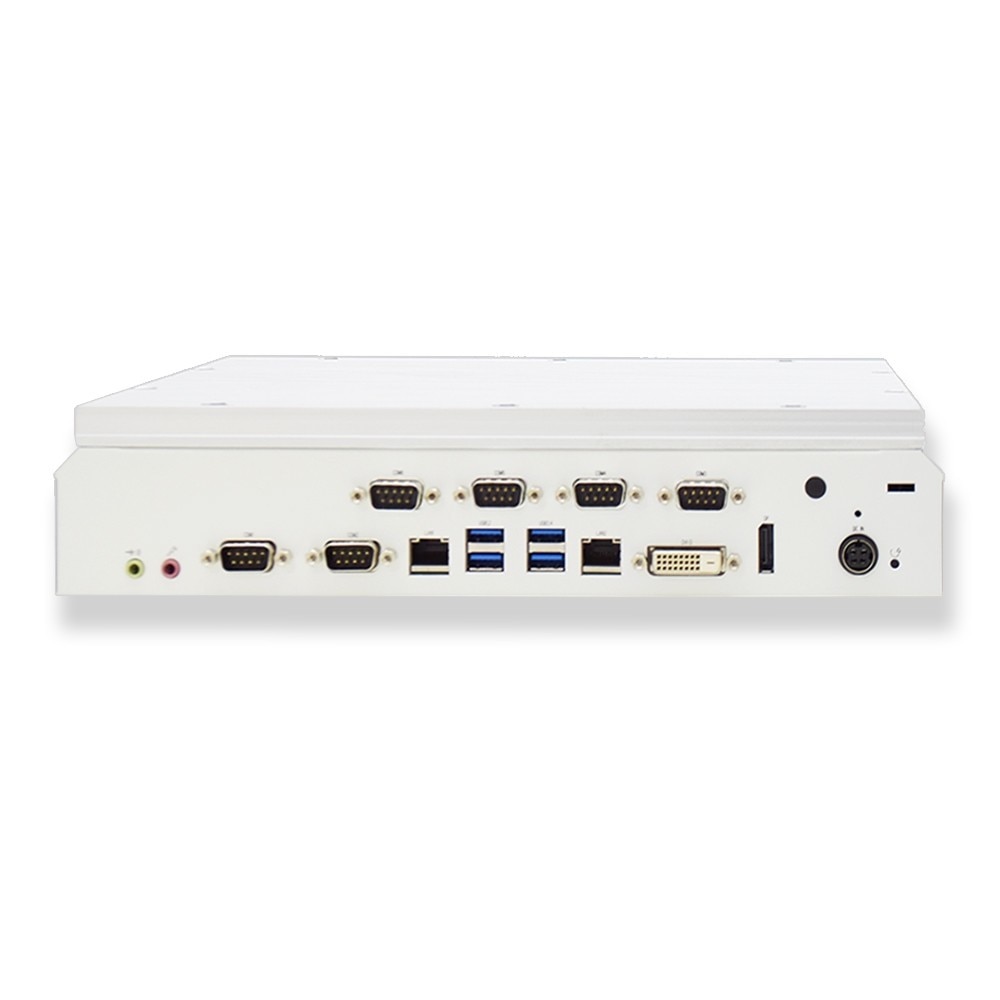

I/O Diagram Images

TMB-5010 IOs

Tech Diagram Images

TMB-5010 TechDraw
