TM-7240-22i

22" Industrial Touch Screen Computer | Horizon

Available – Contact Us for Quick Quote

TM-7240-22 21.5" Medical Touch Screen Computer Front

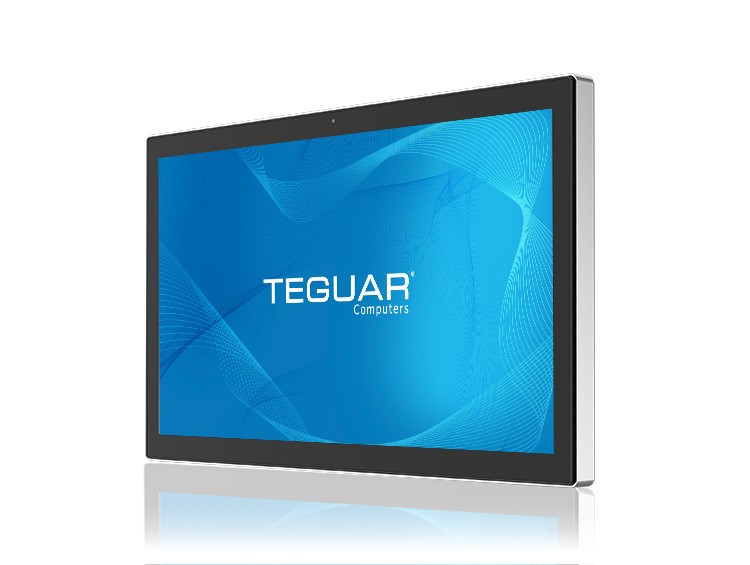

TM-7240-22i 21.5" Industrial Touch Screen Computer Front Angle

TM-7240-22i 21.5" Industrial Touch Screen Computer Side

TM-7240-22i 21.5" Industrial Touch Screen Computer Back Angle

TM-7240-22i 21.5" Industrial Touch Screen Computer Back

Description

The Horizon 21.5” Industrial Touch Screen Computer is powered by Intel® Core Ultra 5 Processor 125U, which brings 12 cores for strong multitasking and a built-in Neural Processing Unit. This NPU is your AI Accelerator for any machine vision and AI projects. Super-fast DDR5 RAM provides Horizon — and your team — with maximum efficiency.

But the Horizon Series doesn’t just eclipse the competition when it comes to performance. These elegant units are also slim in depth and have an innovative compact build, making them 2kg (4.4lbs) lighter than similar units.

Key Highlights

14th Generation Meteor Lake with built-in NPU
Windows 11
Ultra-fast DDR5
Available configurations for dual LAN and PoE
Rugged aluminum fanless build
Expansions include 5MP camera and 2D scanner
Durable Flat Wi-Fi Antenna Kit

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core Ultra Series 14th Generation Meteor Lake
Processor Model	Core Ultra 5 - 125U
Processor Speed	2x Low-Power Efficient Cores up to 2.1GHz, 2x Performance Cores up to 4.3GHz, 8x Efficient Cores up to 3.6GHz
Memory Type	1x DDR5 SO-DIMM
Memory Support	8GB, 16GB, 32GB
Storage Type	1x M.2 2280 SATA3/NVMe Slot
Storage Support	128GB-1TB

Display

Screen Size	18.5", 21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits, 450 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 3.0 Type-C (Power/Video/Data), 2x USB 2.0, 4x USB 3.0
Serial / Com	3x RJ48 COM
Ethernet / LAN	1x RJ45 GbE LAN
Video Outputs	1x DisplayPort via USB-C Alt Mode
Power Input Port	4-Pin DC-In Jack

Power

Input Voltage Range	12-48V DC
Standard Power Adapter	External 19V/6.32A 120W DC Power Adapter

Operating Systems

Windows

Windows 10 IoT, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 for NVME/SATA3 SSD Support
Expansion Module support	71W PoE Module/2nd LAN Module/Powered USB Module (2x 12V, 1x 24V)/Isolated LAN+DB9 Serial

Multimedia

Speakers	1x Speaker
Camera	Optional 5MP Webcam
Microphone	With Optional 5MP Webcam

Thermal & Environmental

Operating Temperature	0°C - 40°C (32°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	20% – 85% Non-condensing, 25% – 85% Non-condensing

Enclosure

Material	Aluminum, Plastic
IP Rating	IP65 Front Bezel
Color	Black, White
Mounting Options	VESA Mount

Peripherals & Wireless Connectivity

WiFi	WiFI 6E (Optional)
Bluetooth	Optional Bluetooth 5.2
Peripheral Other	Optional MSR

Weight / Dimensions

Weight	6 kg (13.2 lbs)
Dimensions	521 x 325 x 47 mm (20.5 x 12.8 x 1.9 in)

Certification

Certifications

CE, EN60601-1, FCC

Warranty

Up to 5 Years

For Fast Computing – Enabling Production Workflow: The Neural Processing Unit (NPU) boosting Horizon’s 12-core processor increases computing speed and efficiency even in complex 3D modeling or quality assessment software. Aided by DDR5 RAM, the TM-7240 is suited for lightning-fast easy use.
For a Professional Look – Perfect for End Users: Horizon’s slim depth and sleek look will fit right into a clean and crisp kiosk assembly. With a USB-C for PD out, the TM-7240 can also power attachments like scanners or additional display right from the unit.
For Operator QoL – Industrial Workstation Ready: With VESA or panel mount ability, a durable cast aluminum enclosure with a sturdy Wi-Fi antenna kit, and 5MP camera for security identification, the TM-7240 makes for a streamlined yet rugged computer for industrial workstations and operator terminals.

See the data sheet Warranty Download Drivers
