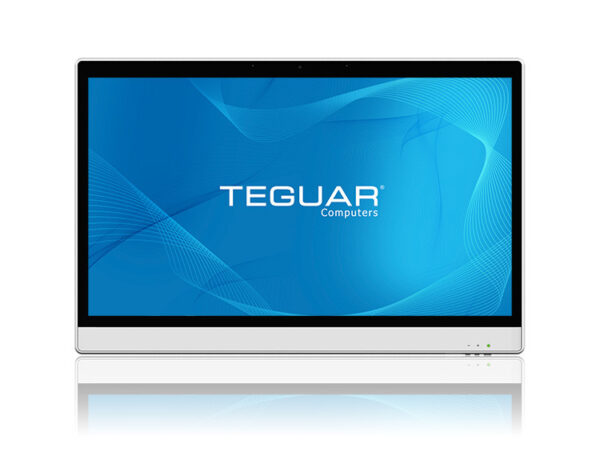

TM-7165-24

24" Medical All in One
Available – Contact Us for Quick Quote

Description

The TM-7165-24, as part of the Medical All in One Series, stands as an essential choice for modern healthcare operations. The Intel Core i5/i7 processor delivers fast performance that is pivotal for managing intricate medical tasks. Tailored specifically for healthcare, it features an IP65 rated front bezel and an IPX2 rated back in an antimicrobial enclosure, ensuring both patient safety and infection control. The incorporation of a POAG grounding pin enhances workplace safety further by providing protection against electrical accidents. For exceptional image clarity and diagnostic support, there’s the optional NVIDIA graphics card, which also helps with its adaptability for AI applications.

Key Highlights

  • 23.8” High Resolution Touchscreen with 4K Display Resolution Option
  • Intel Core i5/i7 Processor Passmark Rating 24630
  • Windows 11 Capabilities
  • Optional NVIDIA Graphics Card
  • Antimicrobial Enclosure with IP65 rated front bezel and IPX2 rated rear

Primary Components

Processor FamilyIntel Core I series 13th Generation Raptor Lake
Processor ModelCore i5-13500T Optional, Core i7-13700T Optional
Processor SpeedUp to 4.6 GHz i5, Up to 4.9 GHz i7
Memory Type2x DDR4 SO-DIMM
Memory SupportUp to 64GB (i5/i7)
Storage Type1x M.2 2280 NVME SSD slot
Storage SupportM.2: 256GB-1TB

Display

Screen Size23.8"
ResolutionOptional 4K, 1920 x 1080 (Full HD)
Screen Ratio16:9

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB2x USB 2.0, 2x USB 3.1 Type C, 4x USB 3.0
Serial / Com3x COM
Ethernet / LAN1x RJ45 10/100 LAN, 1x RJ45 GbE LAN
Video Outputs2x DisplayPort
Other PortsGrounding Pin (POAG)
Audio Ports1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port4-Pin DC-In Jack

Power

Input Voltage Range19V DC
Max Power Consumption209W A2000+FHD, 285W A4000+4K
Standard Power Adapter19Vdc 280W, 2x required for A4000 GPU

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0

Multimedia

Speakers1x Speaker
CameraOptional 5MP Webcam
MicrophoneBuilt-in Microphone

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionActive – with Fan
Humidity Range0% – 90% Non-condensing

Enclosure

MaterialAluminum, Anti-Microbial
IP RatingIP65 Front Bezel, IPX2 enclosure
ColorWhite
Control ButtonsDown, Exit, Menu, Power Button, Up
Mounting OptionsVESA 100 Mount

Peripherals & Wireless Connectivity

WiFi802.11 AX. 2.4/5Ghz Dual Band

Weight / Dimensions

Weight8 kg (17.6 lbs)
Dimensions370.5 x 45.2 x 567 mm (14.6 x 1.8 x 22.3 in)

Warranty

WarrantyUp to 5 Years

Medical Imaging Solutions: The TM-7165 series, exemplified by the TM-7165-24, as part of the Medical All in One Series, is a vital choice for modern healthcare operations, especially in the realm of medical imaging. The Intel Core i5/i7 processor delivers fast performance crucial for managing intricate medical imaging tasks. With optional NVIDIA graphics card support for exceptional image clarity, this All-in-One system enhances diagnostic capabilities across various medical imaging applications, contributing to improved patient care.

Point-of-Care Applications: Tailored specifically for healthcare settings, the TM-7165 series, represented by the TM-7165-24, serves as an essential tool for point-of-care applications. The Intel Core i5/i7 processor ensures fast and reliable performance, making it ideal for managing tasks in point-of-care environments. The antimicrobial enclosure enhances patient safety and infection control, while the incorporation of a POAG grounding pin provides additional workplace safety against electrical accidents.

Dimensional Drawings & I/Os

I/O Diagram Images

TM-7165 Labeled IOs

Tech Diagram Images

TM-7165 Technical Drawing
