TD-40-22

Name: TD-40-22
SKU: 7712-40
Availability: InStock

22" Industrial Display Screen

Available – Buy Now or Contact Us for Quick Quote

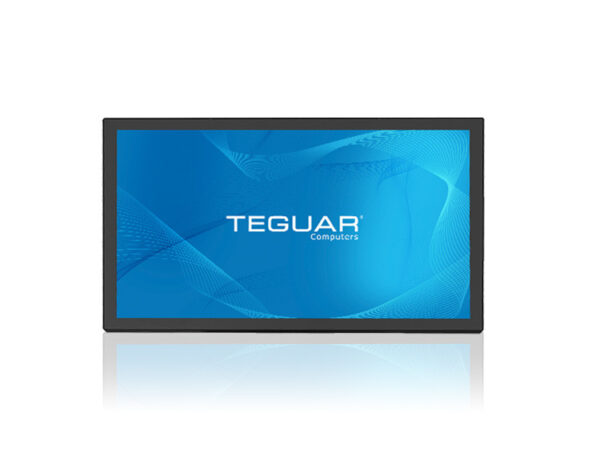

22" Industrial Display Screen TD-40-22 Front with Stand

22" Industrial Display Screen TD-40-22 Front Angle

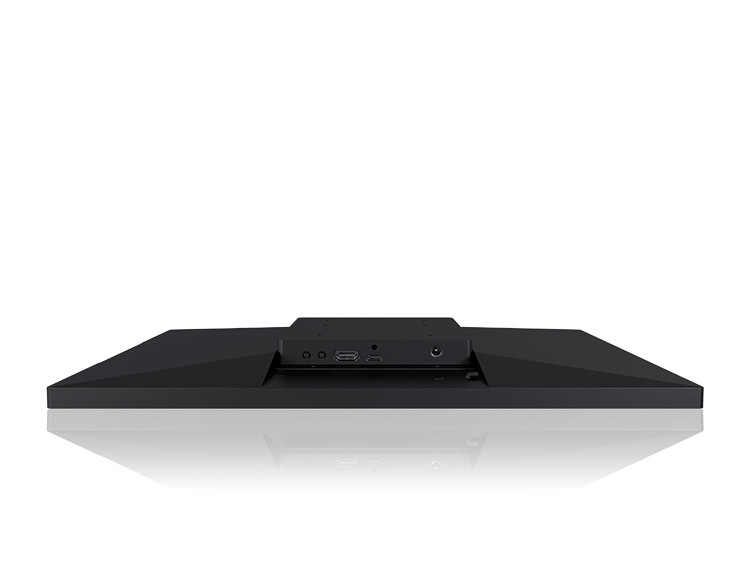

22" Industrial Display Screen TD-40-22 IOs

Description

The 22” Industrial Display Screen is a functional display that is ideal for POS systems. Its two-piece modular design ensures easy installation and maintenance, allowing components to be effortlessly replaced or upgraded. VESA mount ability provides flexible placement options to suit diverse environments. The TD-40-22 comes equipped with USB-C which can be used to get video, power and touch from the connected device. There is also the option of HDMI if USB-C is not compatible with your system. Despite its advanced features, the TD-40-22 remains a low-cost display option, making high-quality visuals accessible without breaking the bank. From interactive displays to kiosk setups, it sets a new standard in display technology.

*Stand not included.

Key Highlights

21.5″ Touchscreen Display
USB and HDMI Connectivity Options
VESA Mountable
2-Piece Modular Design
Stand Accessory Available

Get a Demo Get a Quick Quote

Starting at: $523.64

Customize & Buy

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 2.0 Type-C (Power/Video/Touch)

Power

Input Voltage Range	12V DC
Standard Power Adapter	12V/3.0A US AC Power Supply 36W

Thermal & Environmental

Operating Temperature	0°C - 35°C (32°F – 95°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Humidity Range	20% – 85% Non-condensing

Enclosure

Material	Plastic
Color	Black
Control Buttons	Auto Adjust, Power Button
Mounting Options	Desktop Stand, VESA 75 Mount

Weight / Dimensions

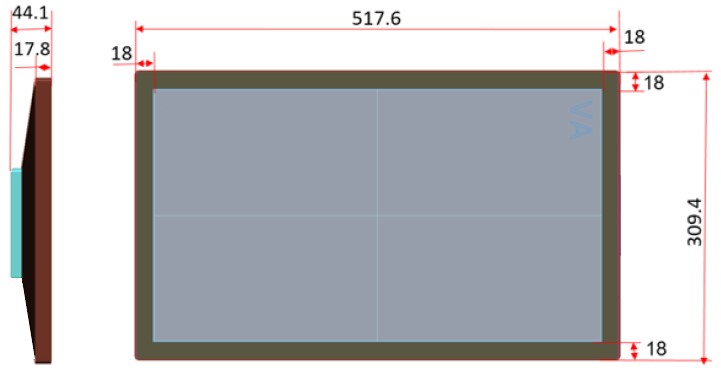

Dimensions

516 x 308 x 40 mm (20.3 x 12.1 x 1.6 in)

POS Computer: The TD-40 series is perfect for POS systems, offering seamless USB-C connectivity, VESA mount ability for versatile installation, and a low-cost option ideal for budget-conscious businesses.

Interactive Displays: With USB-C connectivity and VESA mount ability, the TD-40 series is ideal for interactive displays, providing intuitive interaction and easy installation in diverse environments.

Kiosk Computer: The TD-40 series excels in kiosk applications, featuring USB-C connectivity for seamless integration, VESA mount ability for flexible installation, and a low-cost option suitable for various kiosk setups.

See the data sheet Warranty Download Drivers
