TD-40-12

Name: TD-40-12
SKU: 7710-40
Availability: InStock

12" Industrial Display Screen

Available – Buy Now or Contact Us for Quick Quote

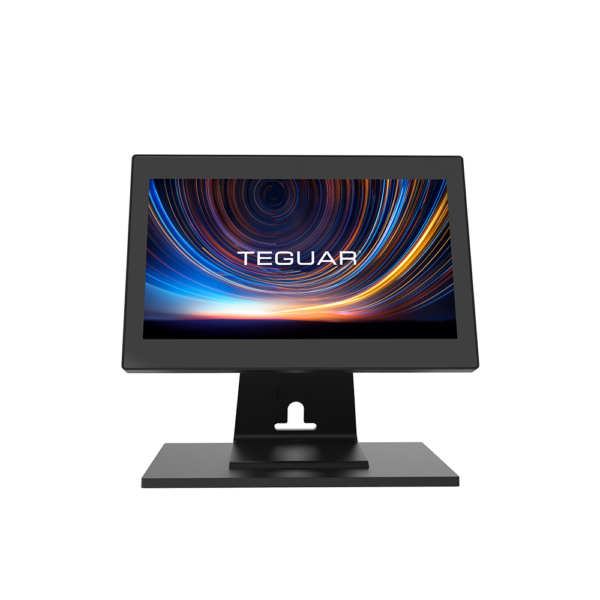

12" Industrial Display Screen TD-40-12 Front with Stand

12" Industrial Display Screen TD-40-12 Back

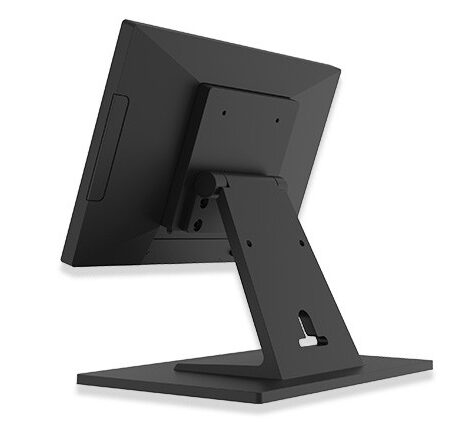

12" Industrial Display Screen TD-40-12 Side

12" Industrial Display Screen TD-40-12 IOs

Description

The 12″ Industrial Display Screen combines compact size with intuitive touch capabilities. With USB-C compatibility, it transmits video, power, and touch signals from the connected device, ensuring seamless integration and reducing cable clutter. HDMI serves as a reliable backup option, in case USB-C is not a viable option for your system. This display is VESA mountable, which offers flexible placement options, adapting to various environments effortlessly. Despite its advanced features, the TD-40-12 remains a low-cost display option, democratizing access to high-quality visuals without compromising performance, making it an ideal choice for budget-conscious consumers seeking premium functionality.

*Stand not included.

Key Highlights

12″ Touchscreen Display
USB and HDMI Connectivity Options
VESA Mountable
2-Piece Modular Design
Stand Accessory Available

Get a Demo Get a Quick Quote

Starting at: $267.12

Customize & Buy

Display

Screen Size	11.6"
Resolution	1366 x 768
Screen Ratio	16:9
Brightness	220 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 2.0 Type-C (Power/Video/Touch)

Power

Input Voltage Range	12V DC
Standard Power Adapter	12V/3.0A US AC Power Supply 36W

Multimedia

Camera

Optional 2MP or 5MP Webcam

Thermal & Environmental

Operating Temperature	0°C - 35°C (32°F – 95°F)
Storage Temperature	-20°C - 65°C (-4°F – 149°F)
Humidity Range	20% – 85% Non-condensing

Enclosure

Material	Plastic
Color	Black
Control Buttons	Auto Adjust, Power Button
Mounting Options	Desktop Stand, VESA 75 Mount

Weight / Dimensions

Dimensions

289 x 193 x 29 mm (11.4 x 7.6 x 1.1 in)

Certification

Certifications

CE, FCC

POS Computer: The TD-40 series is perfect for POS systems, offering seamless USB-C connectivity, VESA mount ability for versatile installation, and a low-cost option ideal for budget-conscious businesses.

Interactive Displays: With USB-C connectivity and VESA mount ability, the TD-40 series is ideal for interactive displays, providing intuitive interaction and easy installation in diverse environments.

Kiosk Computer: The TD-40 series excels in kiosk applications, featuring USB-C connectivity for seamless integration, VESA mount ability for flexible installation, and a low-cost option suitable for various kiosk setups.
