Tech Specs
Primary Components
| Processor Family | Intel Core Ultra Series 14th Generation Meteor Lake |
| Processor Model | Core Ultra 5 125U, Core Ultra 7 155U |
| Memory Type | 1x DDR5 SO-DIMM |
| Memory Support | Up to 48GB |

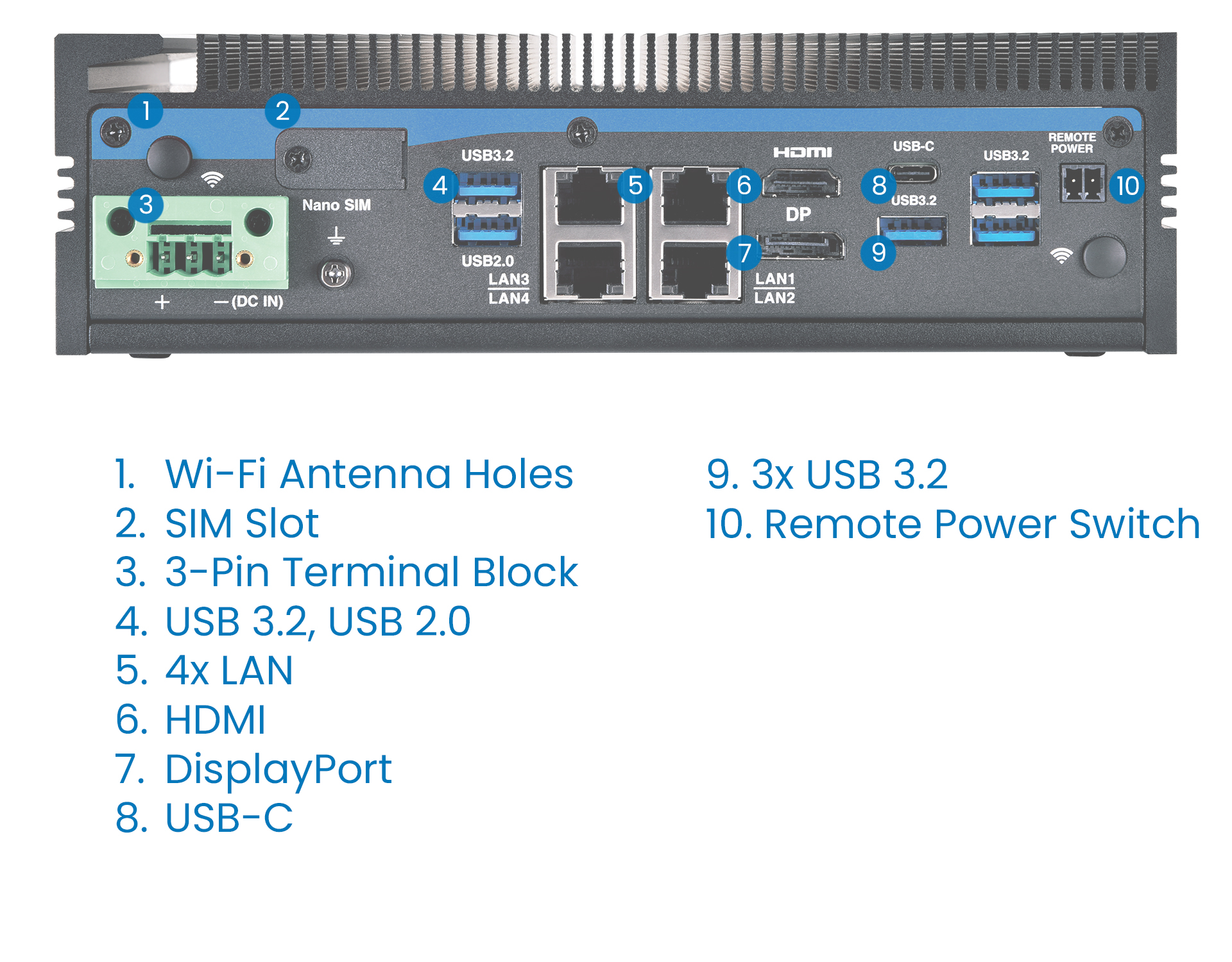

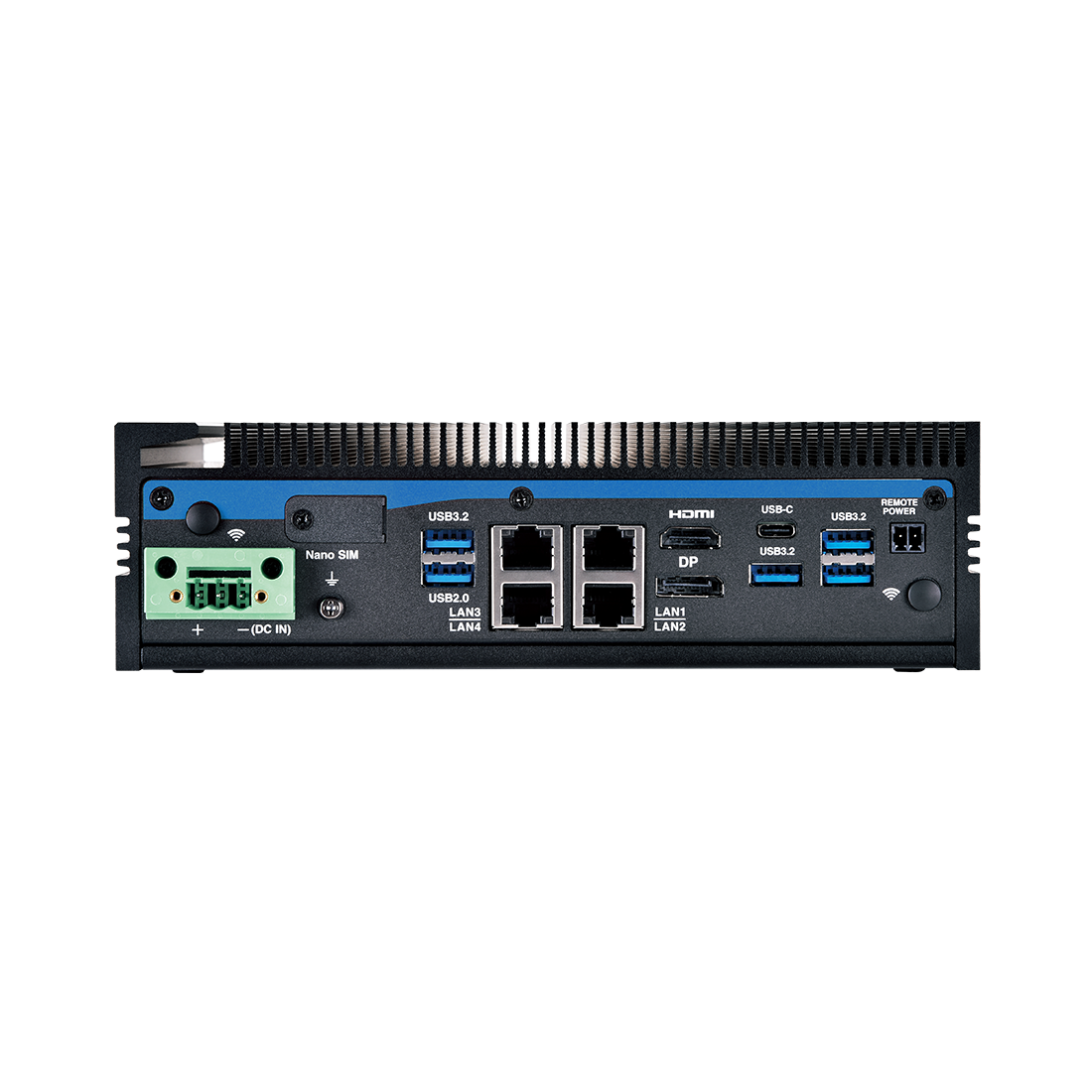

External I/O Ports
| USB | 1x USB 3.2 Type-C (DP 1.4A), 3x USB 2.0, 4x USB 3.2 Gen 2 |

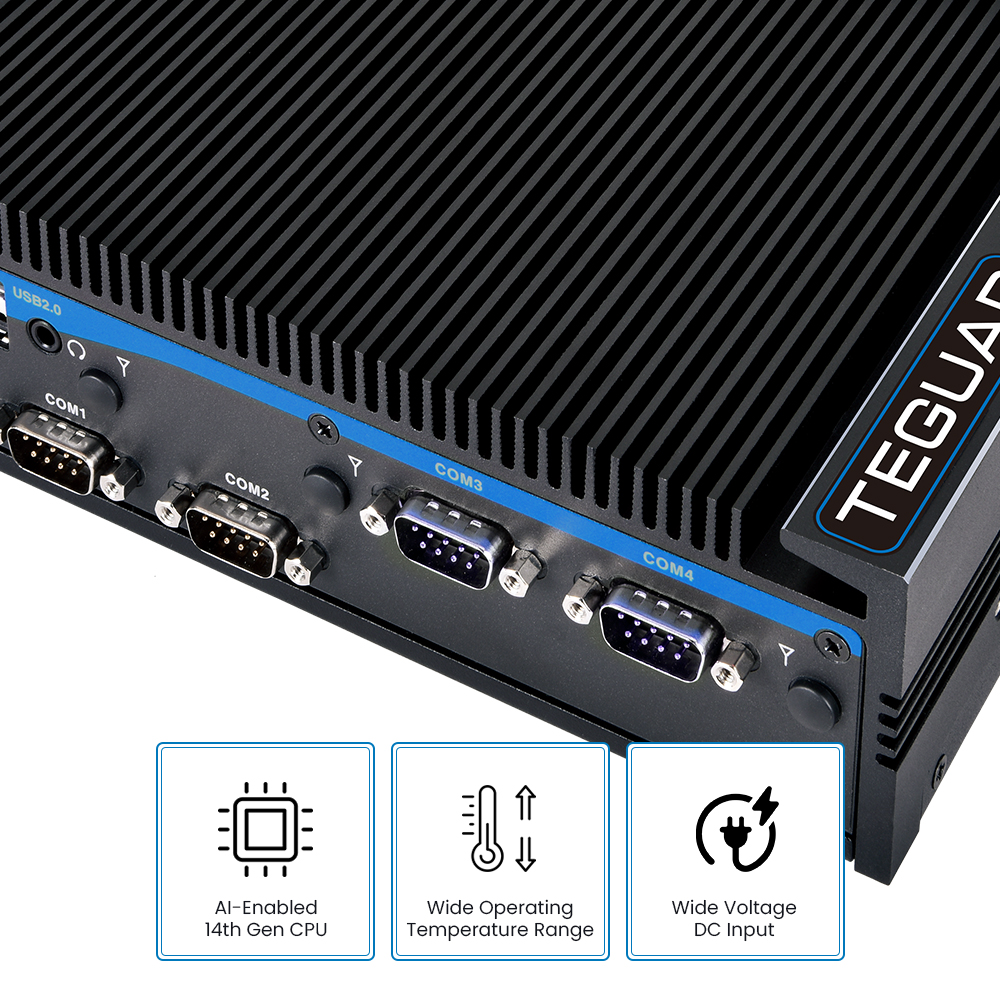

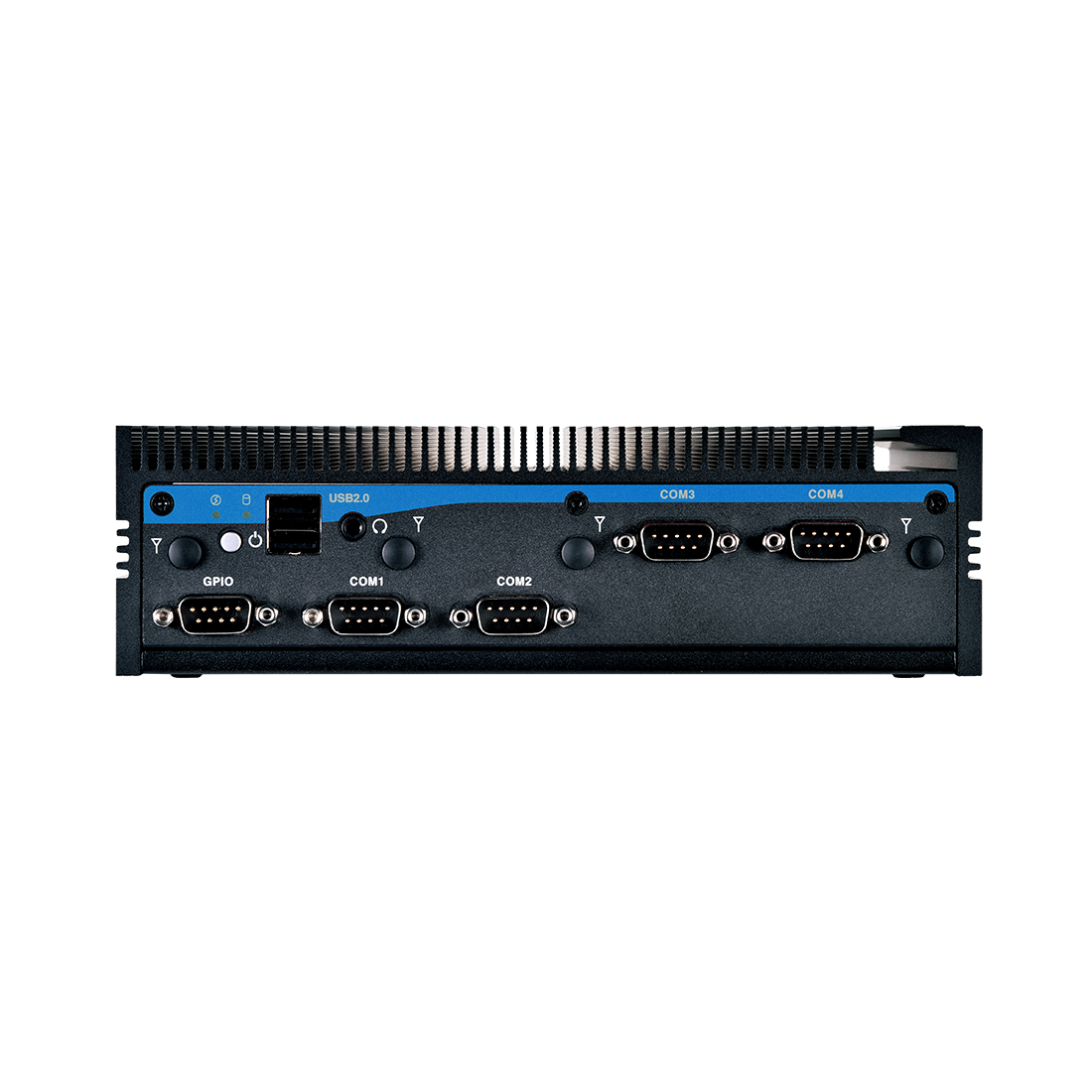

| Serial / Com | 4x COM |
| Serial Protocol Detail | 1x RS232/422/485, 3x RS232 |
| Ethernet / LAN | Optional 2x RJ45 Gbe LAN Expansion, 4x RJ45 2.5Gbe LAN (Optional PoE Module Available) |
| Video Outputs | 1x DisplayPort 1.2, 1x DisplayPort via USB-C Alt Mode, 1x HDMI 1.4 |
| Other Ports | 1x 2-Pin DC Power Switch Connector, 1x 8-bit GPIO (in DB9 Connector) |
| Audio Ports | 1x Audio Line-Out |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 8-26V DC |
| Standard Power Adapter | 72W (24V/3A) External Power Supply, 120W (24V/5A) External Power Supply (Only Required if PoE Module is Installed) |
Operating Systems
| Windows | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
| Linux | Linux Ubuntu 24.04 or above (Contact your sales rep for more information) |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M-Key 2280 (PCIe4.0 X4, SATAIII), 1x M.2 B-Key 2242/3042/3052 (USB2.0/PCIeX1/SATAIII) |
| Expansion Module support | Internal PoE+ Expansion (for RJ45 ports already onboard), 2x RJ45 Gbe LAN Expansion |
Thermal & Environmental
| Operating Temperature | -40°C - 60°C (-40°F to 140°F with Wide Temperature RAM/Storage) |
| Storage Temperature | -40°C - 85°C (-40°F – 185°F) |
| Cooling Solution | Passive – Fanless with Heatsink |
| Storage Humidity | 10%~95%, non-condensing |
Enclosure
| Material | Aluminum |
| Color | Black & Blue |
| Led Indicator Light | Power, Storage |
| Control Buttons | Power Button |
| Mounting Options | Wall Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional WiFi 6E |
| Bluetooth | Optional Bluetooth 5.3 |
| Sim Card | 1x Nano SIM Card Slot |
Weight / Dimensions
| Weight | 2.1 kg (4.6 lbs) |

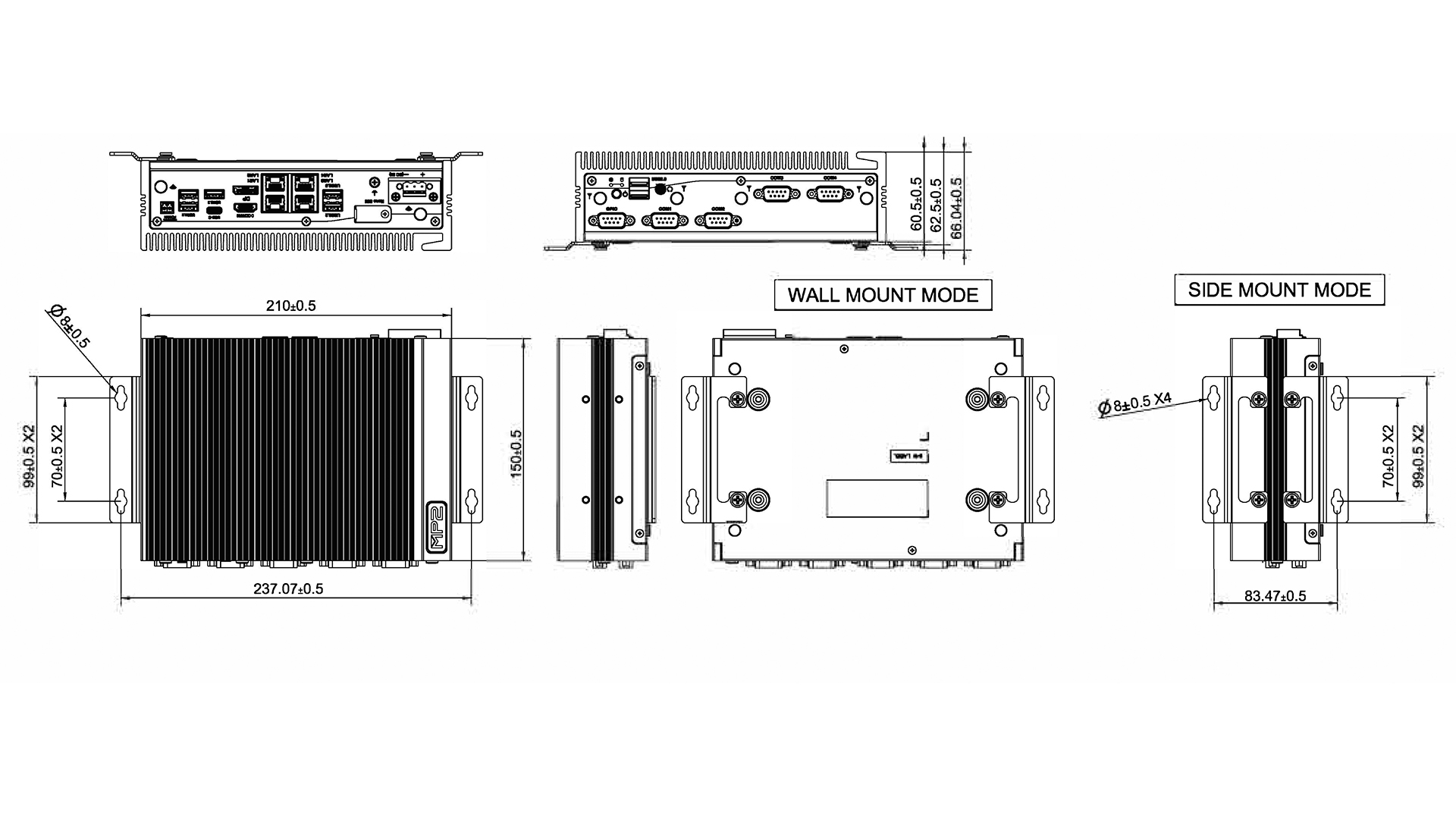

| Dimensions | 210 x 150 x 63 mm (8.3 x 5.9 x 2.5 in) |
Certification
| Certifications | CE, FCC |
Warranty
| Warranty | Up to 5 Years |
