TB-5745-MVS

Industrial Machine Learning Computer

Available – Contact Us for Quick Quote

Description

Delivering a powerful performance and an abundance of I/Os, the TB-5745-MVS is a compact and rugged computer. Built with a fanless design and housed in a sturdy aluminum and steel enclosure, it offers flexibility for mounting options, including DIN rain or wall mounting. The TB-5745-MVS is highly configurable with 2x or 4x PCIe slots, enabling support for a wide range of expansion slots, making it ideal for industry-specific applications such as machine vision, edge computer, and quality control. With the power of an Intel 9th generation Core i3/i5/i7 CPU, and the added advantages of Windows 11 capabilities, this compact-sized computer delivers an impressive performance.

Key Highlights

Intel 9th Generation Core i3/i5/i7 CPU
Up to 4x Expansion Slots
Support for Nvidia GPUs up to 75W TDP
Wide Operating Temperature of -20°C to 60°C
Easily Accessible SATA3 Storage Bays

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core-I Series 9th Generation Coffee Lake
Processor Model	35W CPUs (Fanless) i3-9100TE; i5-9500TE (Standard); i7-9700TE
Processor Speed	Up to 3.8 GHz Turbo
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x M.2 2280 NVME SSD slot, 2x 2.5" SATA Drive Bay for SSD/HDD (easily accessible)
Storage Support	Accessible Bays Support RAID 0/1, 64GB-2TB

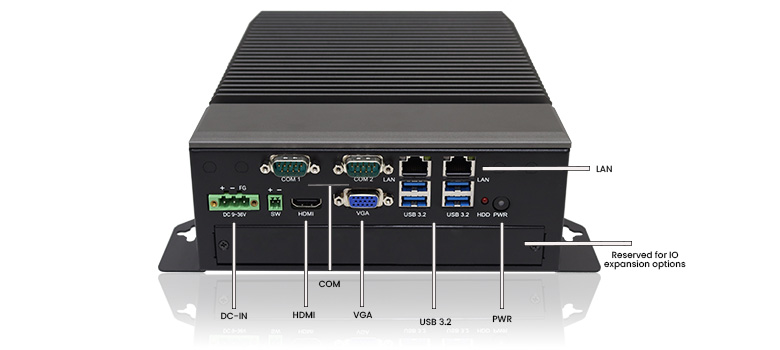

External I/O Ports

USB	4x USB 3.2
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232/422/485, 1x RS-232
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI, 1x VGA
Other Ports	Optional 2 additional LAN, 2 additional USB 3.2, 8-bit GPIO
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range

9-32V DC

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux, Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2	1x M.2 for NVME SSD Support
Video Card Support	75W TDP or less and 180mm in length or shorter. Compatible cards include Nvidia T1000, GTX 1650, RTX A2000, and AMD W6400

Thermal & Environmental

Operating Temperature	-20°C - 60°C - -20°C - 50°C (-4°F – 140°F (i3/i5 CPU), -4°F – 122°F (i7 CPU))
Storage Temperature	-40°C - 85°C (-40°F – 185°F)
Cooling Solution	Passive – Fanless with Heatsink
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum, Steel
Color	Black
Control Buttons	Power Button
Mounting Options	DIN Rail Mount, Table Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional WIFI b/g/n/ac
Bluetooth	Optional Bluetooth 4.0

Weight / Dimensions

Weight	3.4 kg (7.5 lbs)
Dimensions	220 x 190 x 77 mm (8.7 x 7.5 x 3.0 in)

Certification

Certifications

ANSI C63.4, CE, EN 55032/55035 and CISPR 32/35, FCC Class A, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), IEC 61000-4 (ESD)

Warranty

Up to 5 Years

Expansion Options

The TB-5745 series offers flexible configurations to meet your specific needs. Choose the version that suits you best:

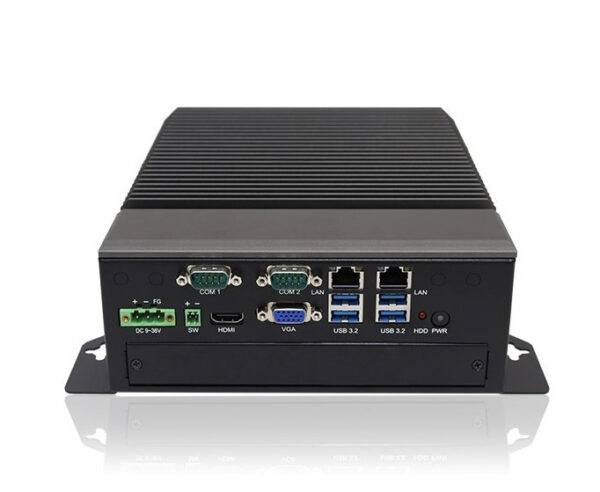

IO-only version: Compact at only 3 inches tall, perfect for customers who require IO functionality without expansion slots.

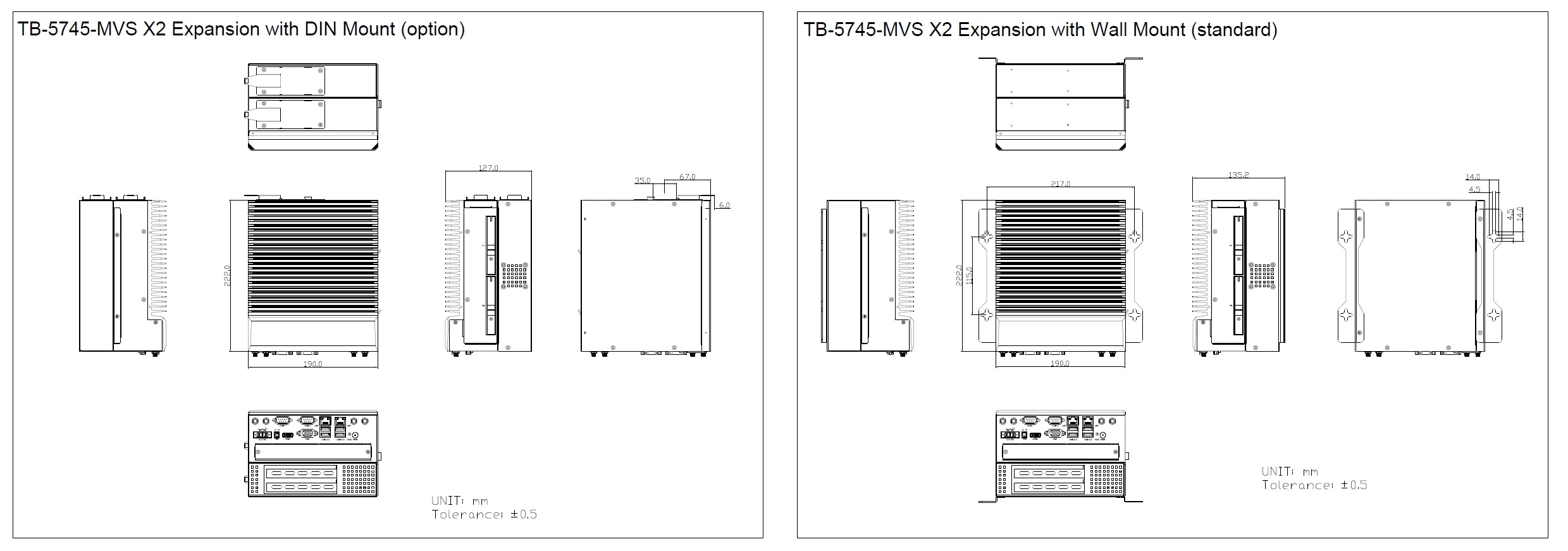

2-slot version: Supports either one dual-slot PCIex16 card or two PCIex4 cards. Ideal for those with moderate expansion needs.
4-slot version: Designed for customers with extensive add-in card requirements. Can accommodate one dual-slot x16 card and two x4 cards, or other configurations upon request.

Expansion capabilities

The TB-5745-MVS supports add-in cards up to 7 inches (180mm) long and 5 inches (130mm) wide. The expansion area is vented and offers optional fan mounts for additional cooling. The PCIe-x16 slot can handle up to 75W power draw, enabling the use of Nvidia GPUs like the GTX 1650 or the RTX A2000 in this rugged, small form factor enclosure.

See the data sheet Warranty Download Drivers
