Tech Specs
Primary Components
| Processor Family | Intel Celeron or Core I series 12th Generation Alder Lake N |
| Processor Model | Core i3-N305, Intel Processor N97 |
| Processor Speed | Up to 3.6 GHz, Up to 3.8 GHz |
| Memory Type | 1x DDR4 SO-DIMM |
| Memory Support | 8GB, 16GB |
| Storage Support | 128GB-1TB |
Display
| Screen Size | 27" |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:09 |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
External I/O Ports
| USB | 1x USB 3.2 Type-C (DP 1.4A), 2x USB 3.0, 4x USB 2.0 |
| Serial / Com | 3x RJ48 COM |
| Serial Protocol Detail | RS232 |
| Video Outputs | 1x DisplayPort via USB-C Alt Mode |
| Other Ports | 1x RJ11 |
| Power Input Port | 4-Pole DIN (latching) |
Power
| Input Voltage Range | 12-48V DC |
| Standard Power Adapter | 19Vdc, 3.42A, 65W US AC |
Operating Systems
| Windows | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
| Linux | Linux |
Expansion Slots
| Internal M.2 | 1x M.2 2280 M-Key for NVMe or SATA SSD |
| Expansion Module support | 1x Expansion Board Slot with Options for Powered USB (2x 12V, 1x 24V) and Isolated LAN (1x RJ45, 1x DB9 COM) |
Multimedia
| Speakers | 1x 3W Speaker |
| Camera | Optional 5MP Webcam |
Thermal & Environmental
| Operating Temperature | 0°C - 40°C (32°F – 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 20% – 85% Non-condensing |
Enclosure
| Material | Plastic |
| IP Rating | IP54 Front Bezel |
| Color | Black |
| Led Indicator Light | Power |
| Control Buttons | Power Button |
| Mounting Options | VESA 100 Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional WiFi 6E |
| Bluetooth | Optional Bluetooth 5.2 |
Weight / Dimensions

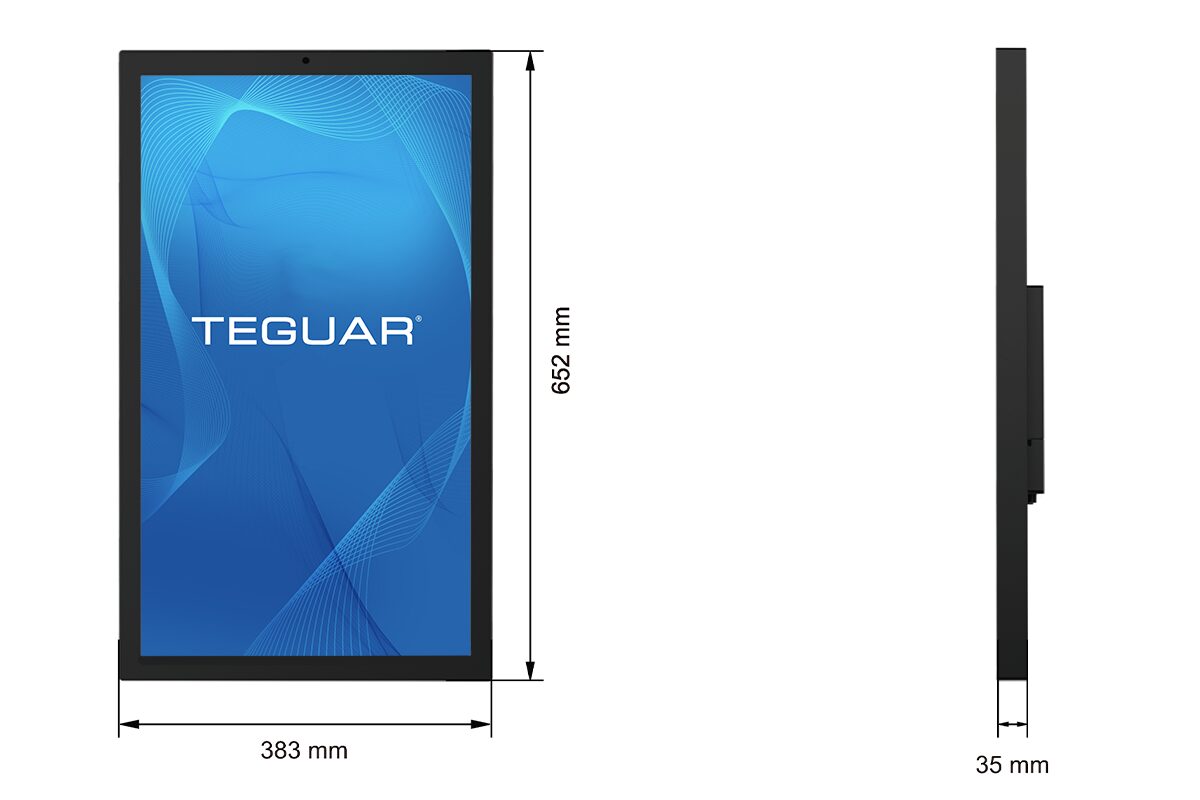

| Dimensions | 652 x 383 x 35 mm (25.7 x 15.1 x 1.4 in) |
Certification
| Certifications | CE, FCC |
Warranty
| Warranty | Up to 5 Years |
