Tech Specs
Primary Components
| Processor Family | Intel Core I series 11th Generation Tiger Lake |
| Processor Model | Core i3-1115G4E |
| Memory Type | 1x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB |
| Storage Type | 1x M.2 slot for SSD |
| Storage Support | M.2: 128GB-1TB |
Display
| Screen Size | 21.5 |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 300 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
External I/O Ports
| USB | 1x USB 2.0 type C (data only), 1x USB 3.0 Type-C (Power/Video/Data), 2x USB 2.0, 2x USB 3.0 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | x2 RS-232 DB-9 |
| Ethernet / LAN | 1x RJ45 GbE LAN |
| Other Ports | Custom connector for External Monitor; 1x RJ11 cash drawer |
| Power Input Port | 4-Pole DIN (latching) |
Power
| Input Voltage Range | 19V DC |
| Standard Power Adapter | 120W AC/DC Adapter |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 |
| Linux | Linux (Contact your sales rep for more information) |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |

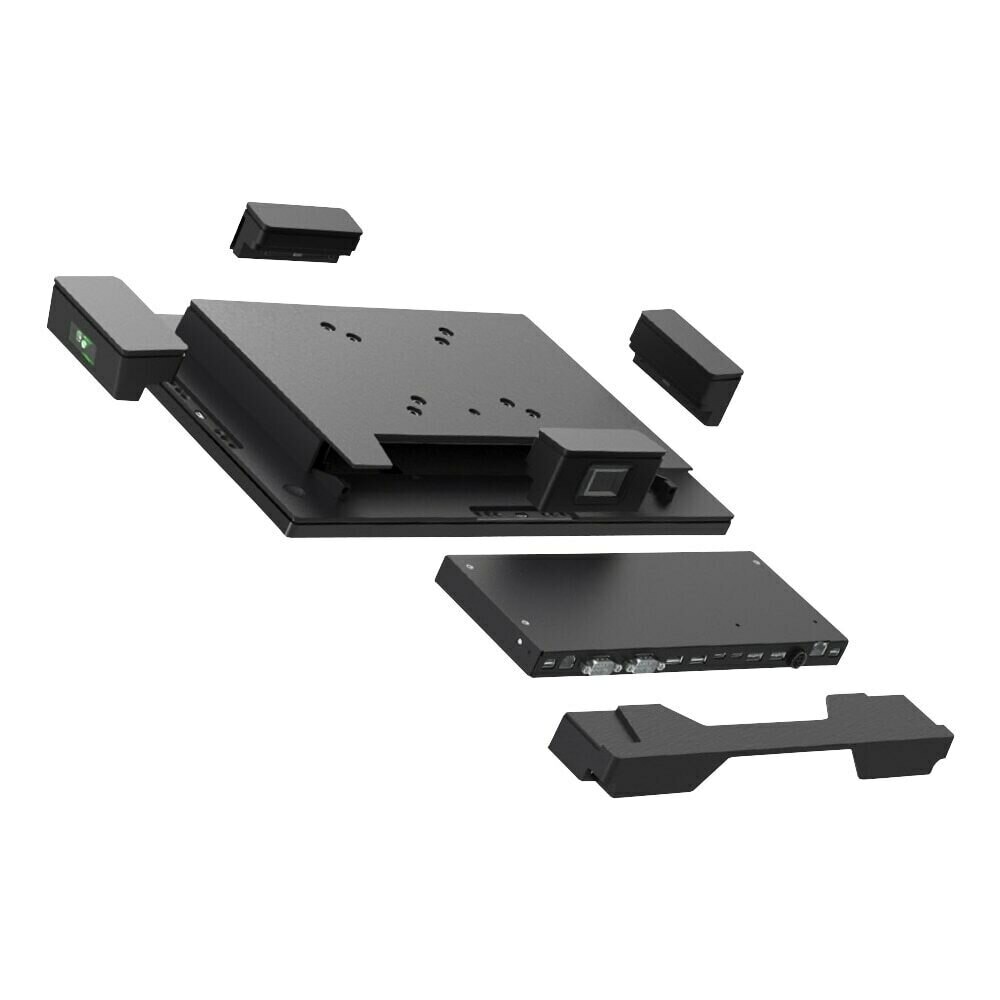

| Expansion Module support | 4 USB based expansion areas on Bezel |
Multimedia
| Speakers | 1x 3W Speaker |
| Camera | Optional Webcam |
Thermal & Environmental
| Operating Temperature | 0°C - 35°C (32°F – 95°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 20% – 85% Non-condensing |
Enclosure
| Material | Plastic |
| IP Rating | IP54 Front Bezel |
| Color | Black |
| Led Indicator Light | Power |
| Control Buttons | Power Button |

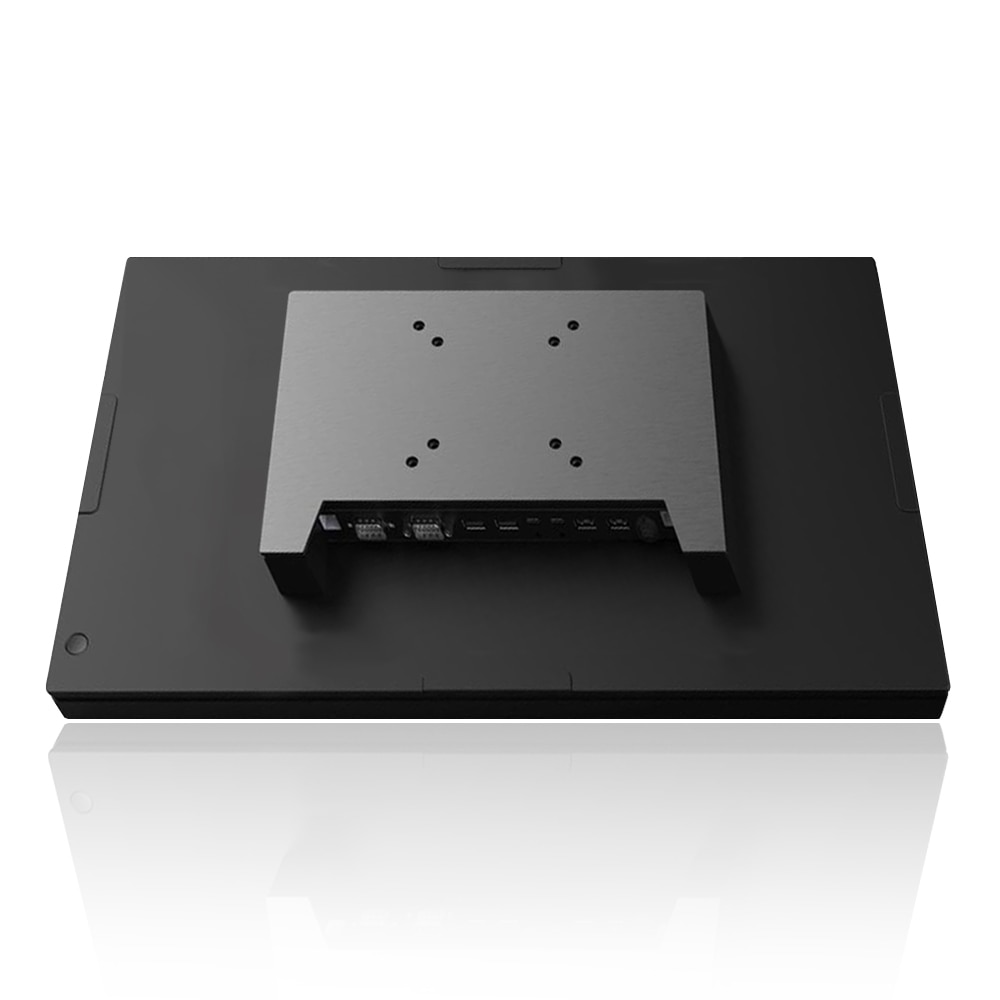

| Mounting Options | VESA 100 Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional 802.11 a/b/g/n/ac |
| Bluetooth | Optional Bluetooth 5.1 |
| Barcode Scanner | Optional 1D/2D Barcode Scanner |
| RFID | Optional RFID |

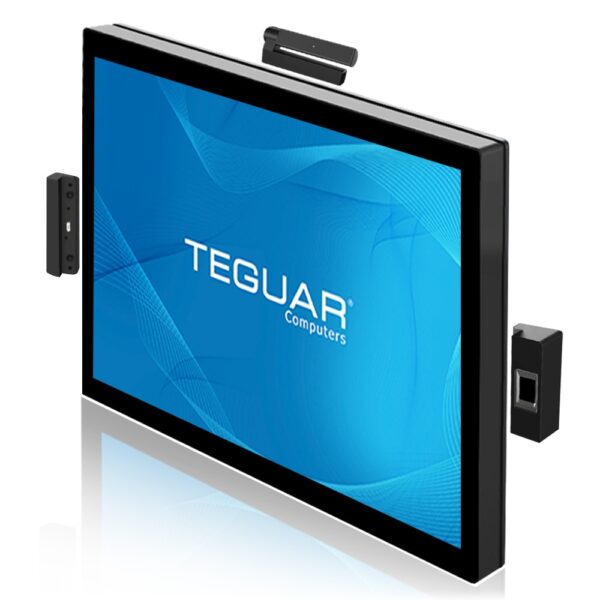

| Peripheral Other | 3-Track MSR; Fingerprint Reader; Supported Verifone® VX820, P400, Ingenico iPP 325; POS Stand; Printer Stand; Floor Stand; Printer, Epson® TM-m30 / TM-T88IV, Star mc-Print3/ TSP-100/TSP-654 |
Weight / Dimensions
| Weight | 5.4 kg (11.9 lbs) |
| Dimensions | 519 x 311 x 49 mm (20.4 x 12.2 x 1.9 in) |
Certification
| Certifications | CE, FCC Class A, LVD |
Warranty
| Warranty | Up to 5 Years |
