TA-5940-16

16” All-in-One Touch Kiosk
Available – Contact Us for Quick Quote

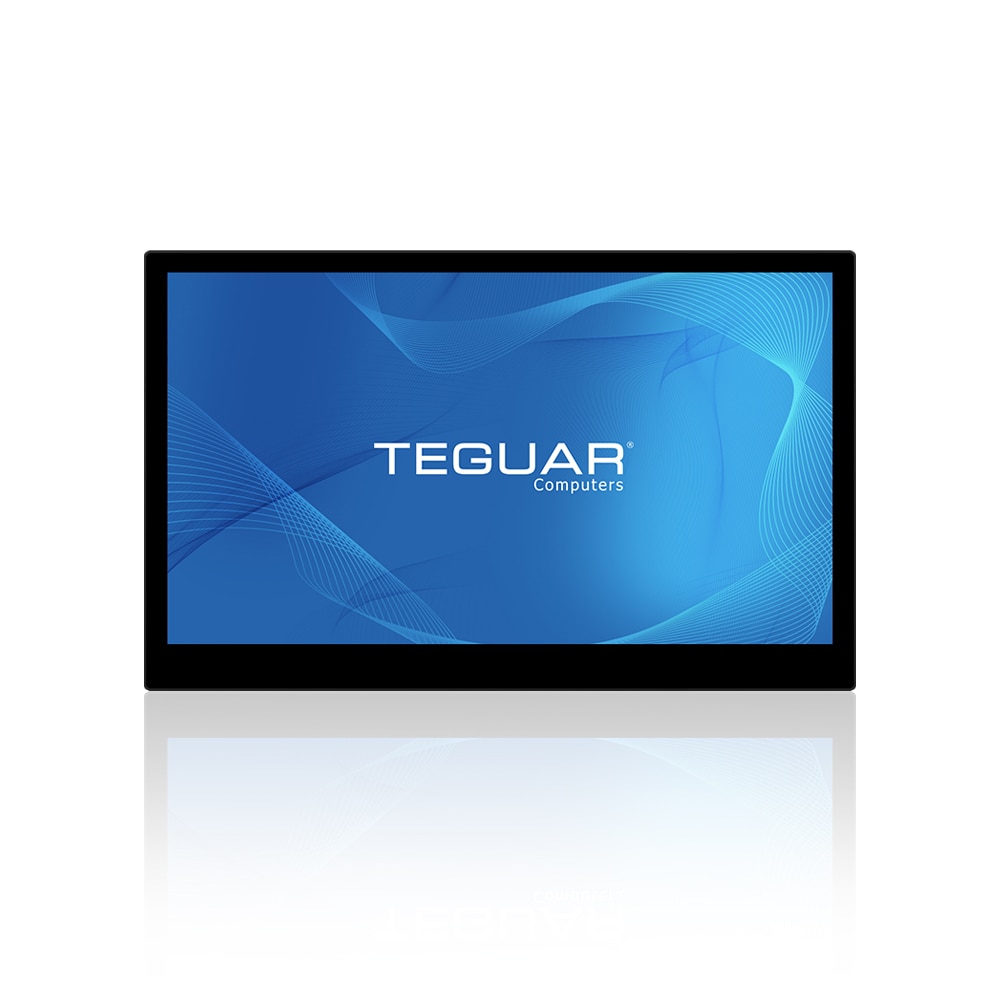

Modular Computer | TA-5940-16
Modular Computer | TA-5940-16

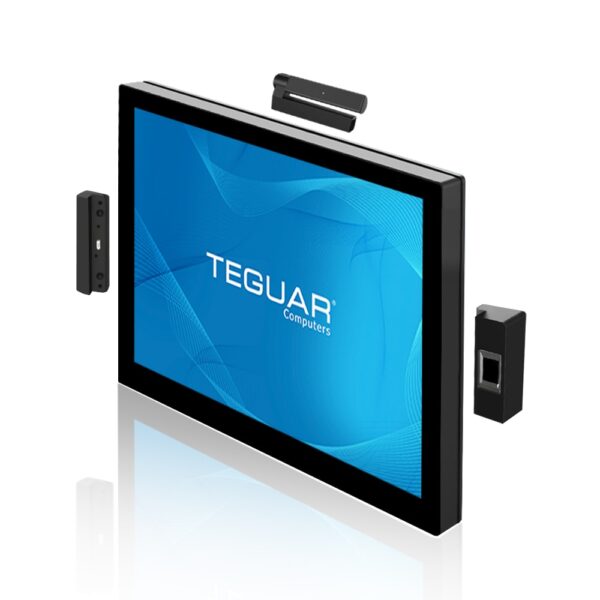

16" All-in-One Computer | TA-5940-16

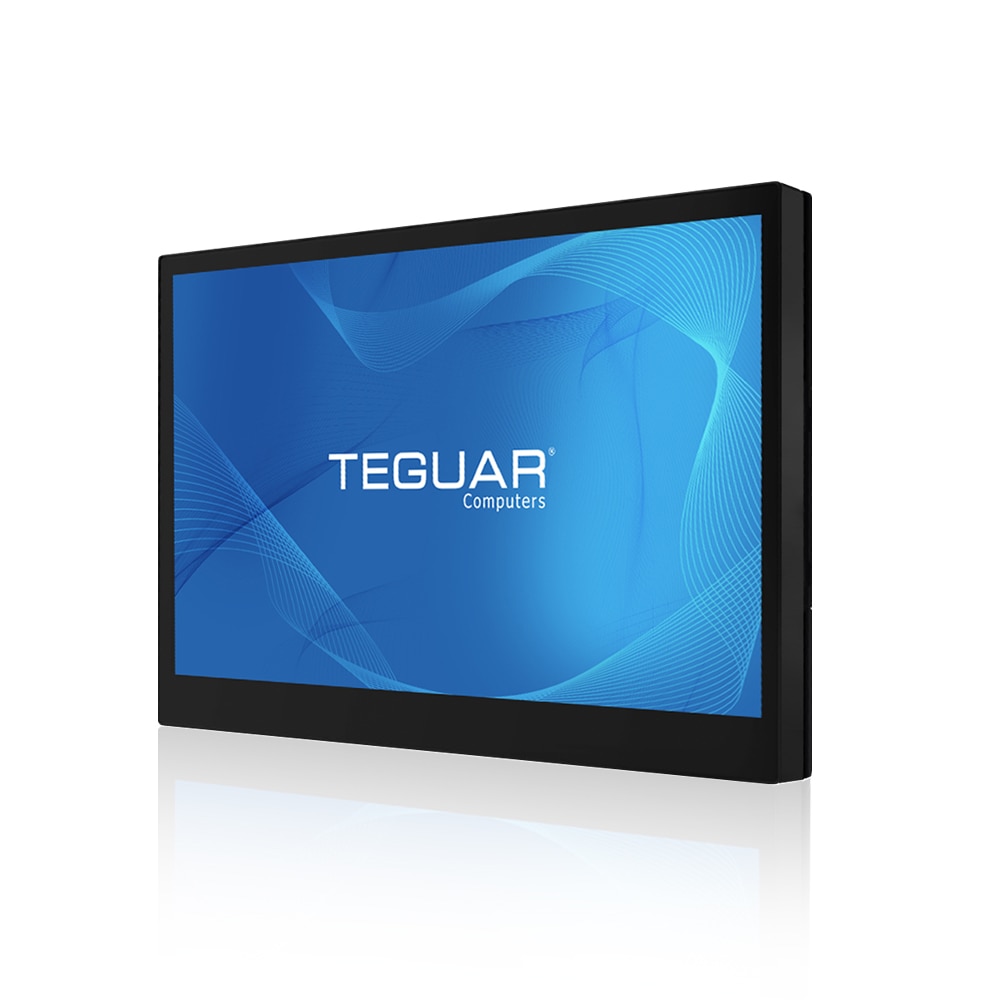

TA-5940-16 AIO Computer

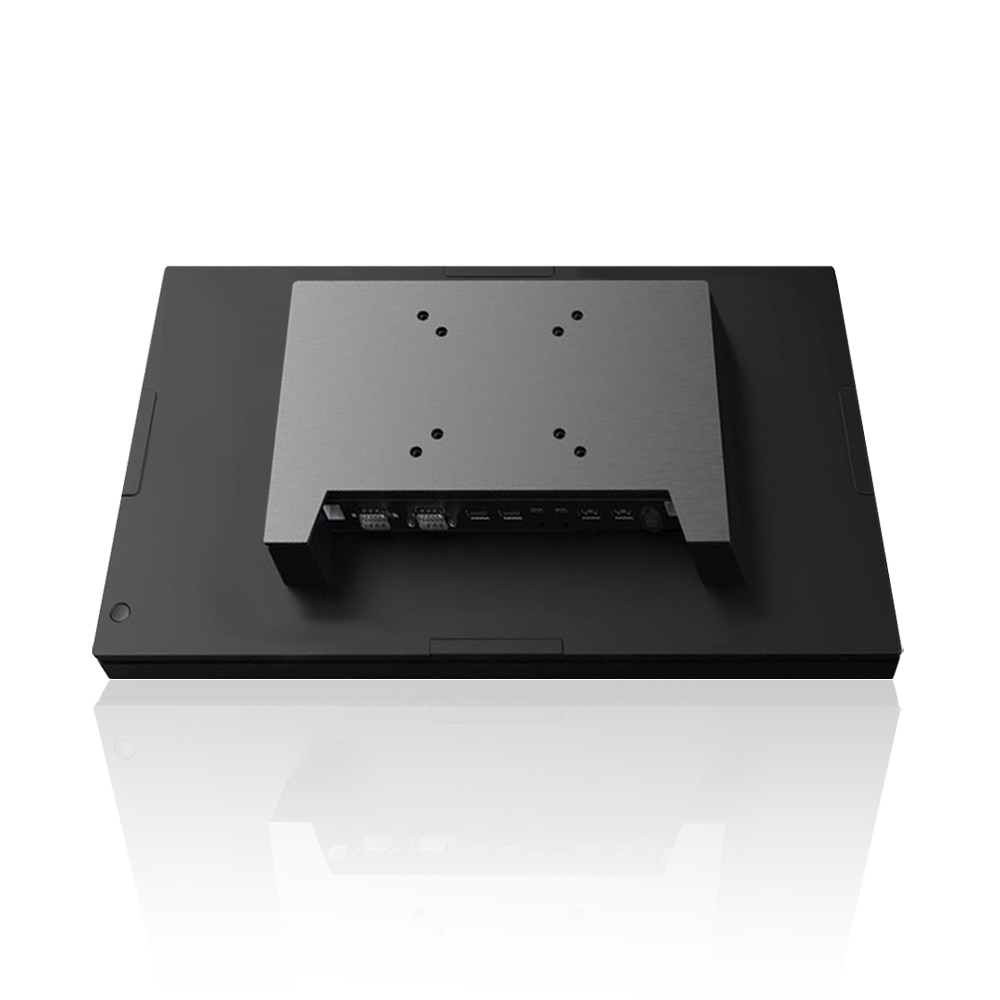

Modular Computer TA-5940-16

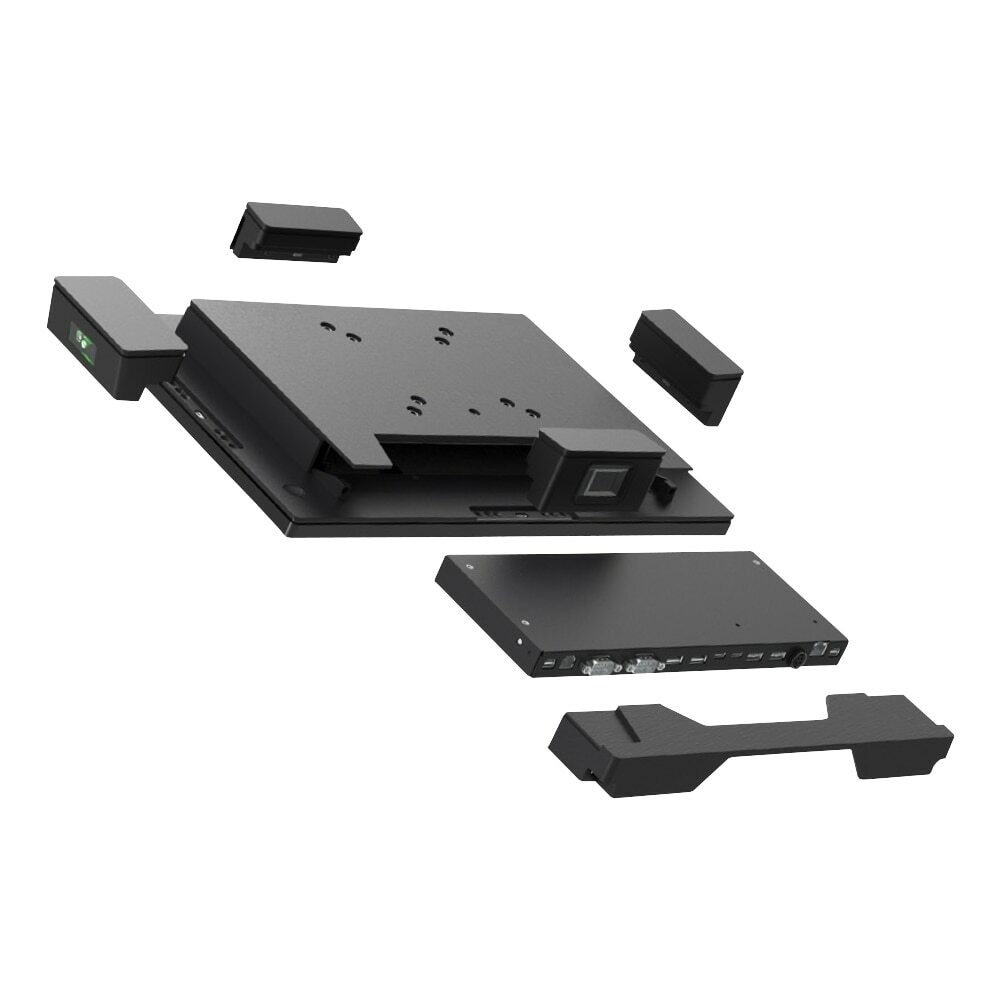

TA-5940 Computer expanded

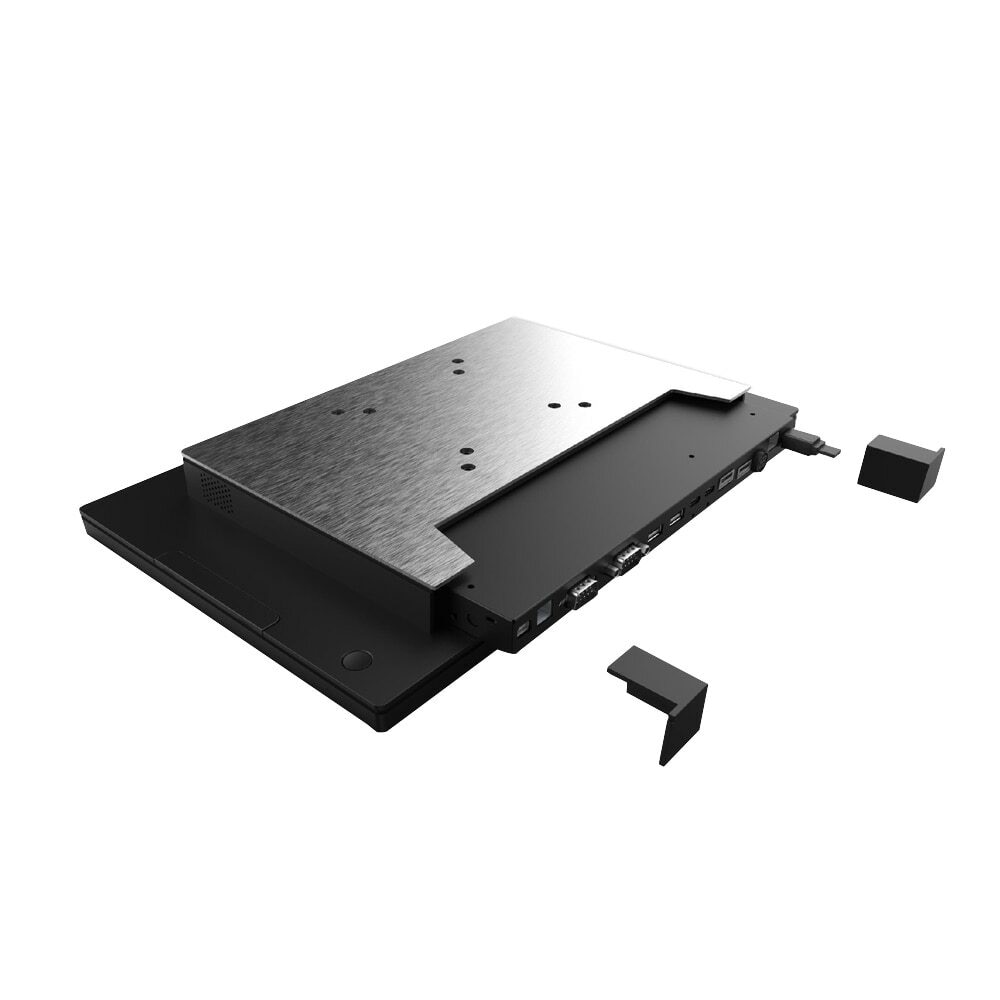

Removable Box PC

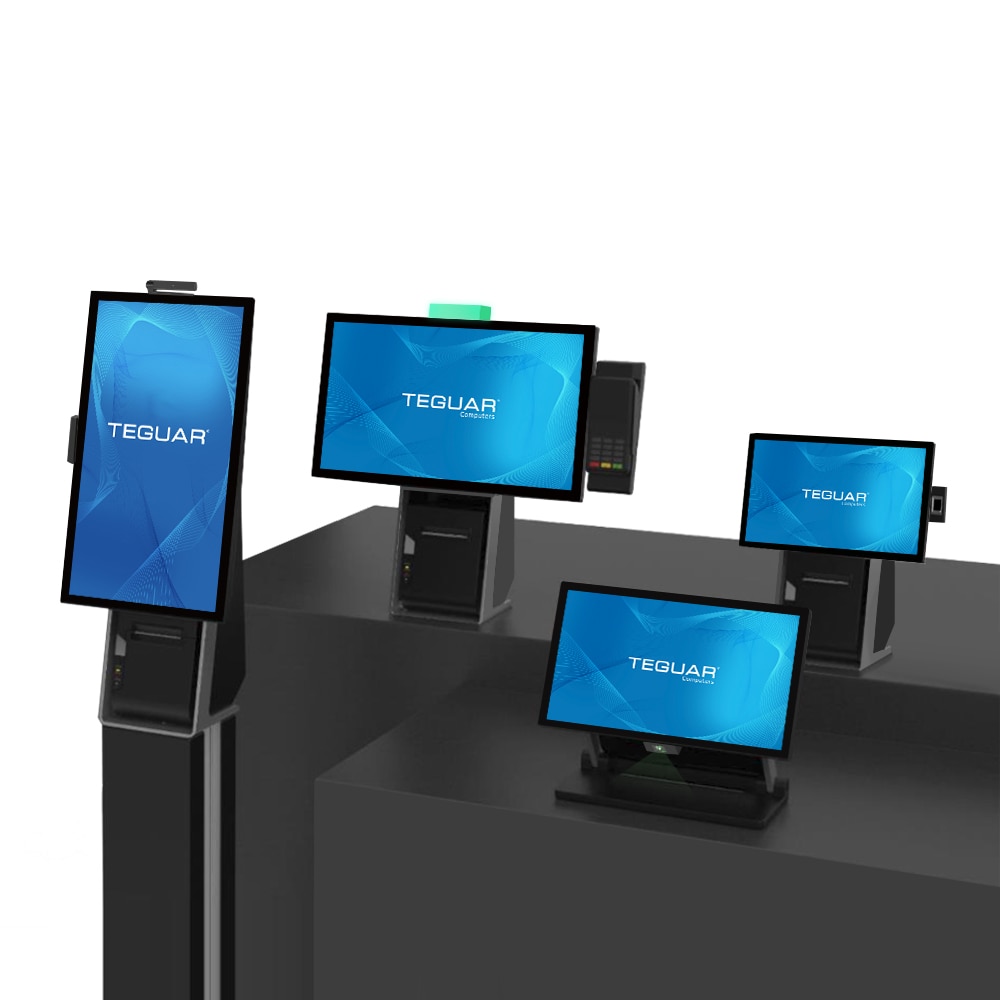

Full Line Up Teguar TA-5940 Series

Description

The TA-5940-16 runs on an Intel 11th Gen Tigerlake CPU and can run Windows or Linux Operating Systems. This computer is ideal for customer facing applications, such as POS systems and self-serve kiosks, and light-industrial applications, such as on your shop floor, time stamp, or check-in. It has a unique modular design with a 15.6” full HD touchscreen and a removable box PC that fits onto the back of the unit for easy service or upgrades. This PC has VESA mounting and can be mounted to a wide variety of stands, arms and carts, and can be ordered with a POS stand, printer stand, or floor stand. Up to four optional peripherals can be added to all four sides of this computer at one time, including a 3-Track MSR Fingerprint Reader, RFID Reader, 2D Barcode Scanner, 5MP Camera with microphone, and Verifone® VX820 or Ingenico payment terminals.

>> Read an independent review of the TA-5940-16 on RuggedPCReview.com

Key Highlights

  • 15.6” HD Display with PCAP Touchscreen
  • Intel 11th Gen Tigerlake CPU
  • Modular and Expandable Design
  • Slim, Durable Housing
  • Various Mounting Options

Screen Size

12" 16" 18" 22"
Get a DemoGet a Quick Quote
Why Buy from Teguar

Tech Specs

See the data sheet Download Drivers

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelCore i3-1115G4E
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB
Storage Type1x M.2 slot for SSD
Storage SupportM.2: 128GB-1TB

Display

Screen Size15.6"
Screen Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness300 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB1x USB 2.0 type C (data only), 1x USB 3.0 Type-C (Power/Video/Data), 2x USB 2.0, 2x USB 3.0
Serial / Com2x COM
Serial Protocol Detailx2 RS-232 DB-9
Ethernet / LAN1x RJ45 GbE LAN
Other Ports1x RJ11; Custom connector for External Monitor
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19V DC
Standard Power Adapter120W AC/DC Adapter

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro
LinuxLinux (Contact your sales rep for more information)

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)
Expansion Module support4 USB based expansion areas on Bezel

Multimedia

Speakers1x 3W Speaker
CameraOptional Webcam

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range20% – 85% Non-condensing

Enclosure

MaterialPlastic
IP RatingIP54 Front Bezel
ColorBlack
Led Indicator LightPower
Control ButtonsPower Button
Mounting OptionsVESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional 802.11 a/b/g/n/ac
BluetoothOptional Bluetooth 5.1
Barcode ScannerOptional 1D/2D Barcode Scanner
RFIDOptional RFID
Peripheral Other3-Track MSR; Fingerprint Reader; Supported Verifone® VX820, P400, Ingenico iPP 325; POS Stand; Printer Stand supports Epson® TM-m30 / TM-T88IV, Star mc-Print3/ TSP-100/TSP-654

Weight / Dimensions

Weight3.0 kg (6.6 lbs)
Dimensions370 x 235 x 42 mm (14.6 x 9.3 x 1.7 in)

Certification

CertificationsCE, FCC Class A, LVD

Warranty

WarrantyUp to 5 Years

Hospitality Self-Service Check-in Kiosks:The TA-5940 All-in-One Computers with integrated RFID Readers and 5MP Cameras are ideal for hotels and airports, providing easy self-check-in and verification.

Retail POS Kiosks: The sleek Kiosk Computer Series, equipped with 2D Barcode Scanners and Verifone® VX820 payment terminals, streamlines transactions in retail stores.

Interactive Information Kiosks: With full HD displays and touchscreens, these all-in-one computers offer easy access to maps and event schedules in public spaces, museums, and educational institutions.

Secure Access Control Kiosks: The TA-5940 All-in-One Computers, featuring Fingerprint Readers and RFID Readers, enhance security in corporate offices, government buildings, and healthcare facilities.

See the data sheetWarrantyDownload Drivers

Dimensional Drawings & I/Os

See the data sheet

I/O Diagram Images

TA-4840-16 Labled IOs

Tech Diagram Images

Teguar 16 inch AIO computer technical drawing
