Tech Specs
Primary Components
| Processor Family | Intel Core I series 8th Generation Whiskey Lake-U |
| Processor Model | Core i3 8145UE, Core i5-8365UE |
| Processor Speed | Up to 4.1 GHz, 1.6 GHz |
| Memory Type | 1x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB |
| Storage Type | 1x M.2 M Key, PCIe or SATA, 2242 default or 2280 |
| Storage Support | 128GB-1TB |
Display
| Screen Size | 15" |
| Resolution | 1024 x 768 (XGA) |
| Screen Ratio | 4:3 |
| Brightness | Optional 1000 nit High Brightness, 300 nits |
Touch Screen
| Touch Screen | Projected Capacitive, Resistive |
External I/O Ports
| USB | 4x USB 3.0 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2) |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 1x DisplayPort |
| Audio Ports | 1x Audio Line-Out |
| Power Input Port | DC-in Jack (Phoenix Type) |
Power
| Input Voltage Range | 9-36V DC |
| Max Power Consumption | 59W |
| Standard Power Adapter | Optional 12V 5A AC/DC Adapter |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 |
Expansion Slots
| Internal M.2 | 1x M.2 for NVME SSD Support |
Thermal & Environmental
| Operating Temperature | 0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F) |
| Storage Temperature | -30°C - 70°C (-22°F – 158°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 10% – 95% Non-condensing |
| Storage Humidity | 10% – 90% Non-condensing |
Enclosure
| Material | Aluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel |
| IP Rating | IP66 Front Bezel, IP69K Front Bezel |
| Color | Silver, Stainless Steel |
| Mounting Options | Panel Mount, VESA 100 Mount |
| Approved Cleaning Solutions | Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol |
Peripherals & Wireless Connectivity
| WiFi | Optional 802.11 ac + Bluetooth with External Antennas |
| Bluetooth | Optional Bluetooth 4.0 |
| Sim Card | 1x Nano SIM Card Slot |
Weight / Dimensions
| Weight | 4.4 kg (9.7 lbs) |

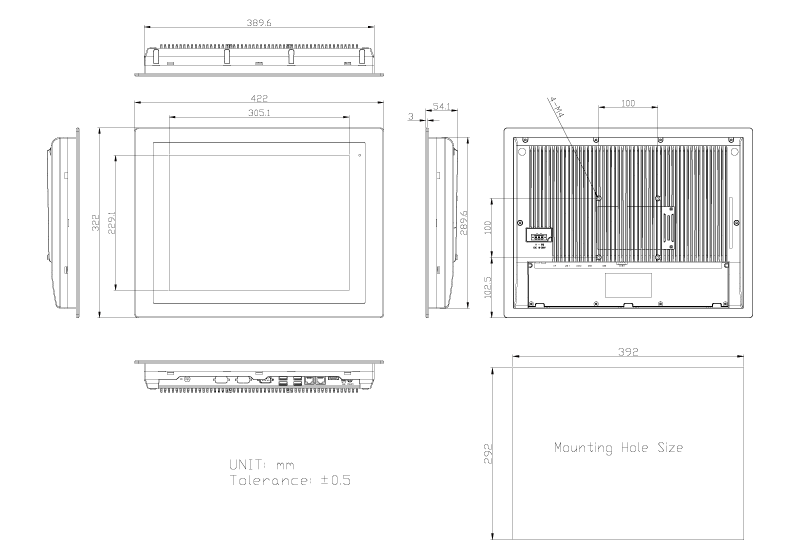

| Dimensions | 422 x 322 x 54.1 mm mm (16.6 x 12.7 x 2.1 in) |
Certification
| Certifications | CE, EN 1672-2 Complaint (PCAP Touchscreen Only), FCC Class A |
Warranty
| Warranty | Up to 5 Years |
