TSP-4845-22

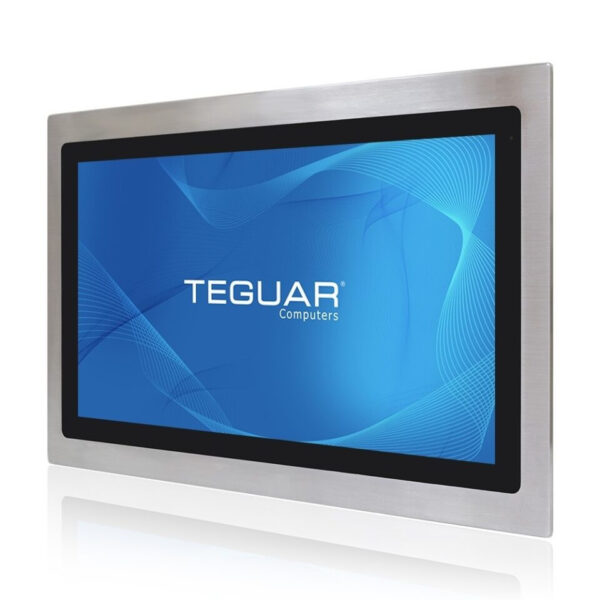

22” Stainless Panel PC
Available – Contact Us for Quick Quote

Description

The 22” Stainless Panel PC offers a large and immersive display for industrial applications that demand extensive visual interactions. With Windows 11 compatibility and a Celeron J6412 processor, this unit ensures seamless performance. As an upgrade from the TSP-2945-22, this panel PC delivers enhanced features and capabilities for diverse industrial needs. Optionally, you can add a smart battery to further enhance reliability and efficiency.  The iP66/IP69K compliant stainless steel front bezel guarantees protection against water and harsh chemicals, making it ideal for food and beverage application. Its aluminum back enclosure keeps the unit lightweight and allows access to inputs and outputs, making this panel PC an excellent addition to your industrial setup.

Key Highlights

  • 21.5” Resistive or PCAP Touchscreen
  • Intel Celeron J6412 Processor
  • Windows 11 Operating System
  • IP66/IP69K Stainless Steel Front Bezel
  • Aluminum back enclosure

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412 Quad
Processor Speed2.0 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x M.2 M Key, PCIe or SATA, 2242 default or 2280
Storage Support128GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit High Brightness, 250 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB2x USB 2.0, 2x USB 3.2
Serial / Com1x COM
Serial Protocol Detail1x RS-232/422/485 DB-9, default RS-232(COM1)
Ethernet / LAN2x RJ45 2.5 GbE LAN
Video Outputs1x DisplayPort
Audio Ports1x Audio Line-Out
Power Input PortDC-in Jack (Phoenix Type)

Power

Input Voltage Range9-36V DC
Standard Power AdapterOptional 12V 5A AC/DC Adapter

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 95% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66 Front Bezel, IP69K Front Bezel
ColorSilver, Stainless Steel
Mounting OptionsPanel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFiOptional 802.11 ac + Bluetooth with External Antennas
BluetoothOptional Bluetooth 4.0

Weight / Dimensions

Weight8 kg (17.6 lbs)
Dimensions574 x 379 x 60 mm (22.6 x 14.9 x 2.4 in)

Certification

CertificationsCE, EN 1672-2 Complaint (PCAP Touchscreen Only), FCC Class A

Warranty

WarrantyUp to 5 Years

Food Processing: The TSP-4845 series, with its IP66/IP69K compliant stainless steel front bezel, is an ideal computing solution for the food processing industry. This Stainless Panel PC provides a reliable and hygienic platform for critical applications in food processing. Its design ensures protection against water, dust, and high-pressure wash downs, meeting the stringent requirements of the industry for maintaining cleanliness and hygiene.

Manufacturing Operations: The TSP-4845 series serves as a rugged computing solution for manufacturing operations. This Stainless Panel PC, featuring an Intel Celeron J6412 processor, ensures efficient performance and multitasking in diverse manufacturing environments.

Clean Room Environments: Specifically designed for sterile environments, the TSP-4845 series is well-suited for use in clean room applications. This panel PC provides a reliable and hygienic computing solution for critical operations in clean room environments. The IP66/IP69K compliant stainless steel front bezel ensures protection against water, dust, and high-pressure wash downs, meeting the strict requirements of clean room standards.

Dimensional Drawings & I/Os

I/O Diagram Images

TSP-4845 Labeled IOs

Tech Diagram Images

TSp-4845-22 Technical Drawing
