Tech Specs
Primary Components
| Processor Family | Intel Core I series 11th Generation Tiger Lake |
| Processor Model | Core i3-1115G4E |
| Processor Speed | Up to 3.9 GHz, 2.2 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB |
| Storage Type | 1x M.2 2280 NVME SSD slot |
| Storage Support | M.2: 128GB-1TB |
Display
| Screen Size | 15.6" |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 300 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |

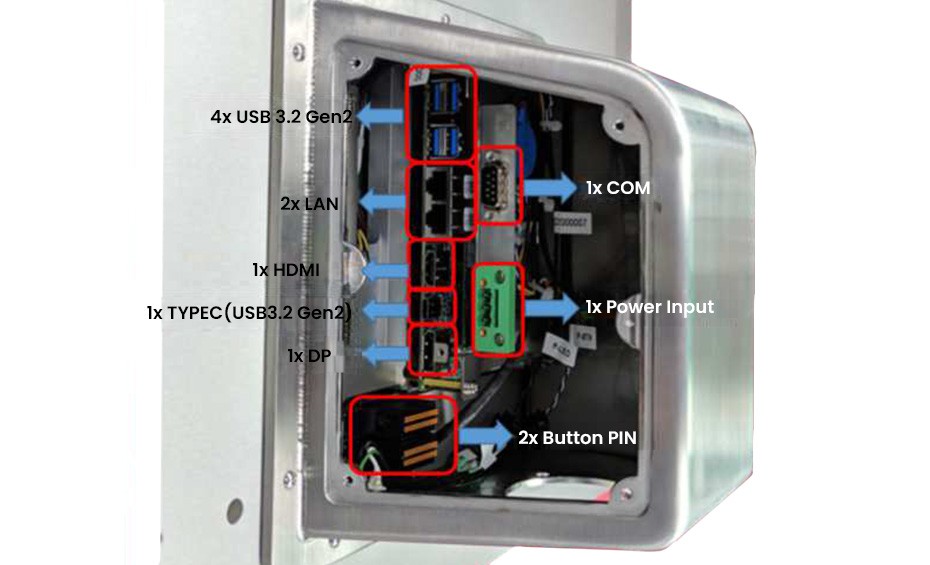

External I/O Ports
| USB | 1x USB 3.2 Type-C, 4x USB 3.2 |
| Serial / Com | 1x COM |
| Serial Protocol Detail | RS-232(Default)/RS-422/RS-485 |
| Ethernet / LAN | 1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN |
| Video Outputs | 1x DisplayPort, 1x HDMI |
| Other Ports | 2x Button PINs, 40x PINs to Operator Buttons |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 9-36V DC |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots

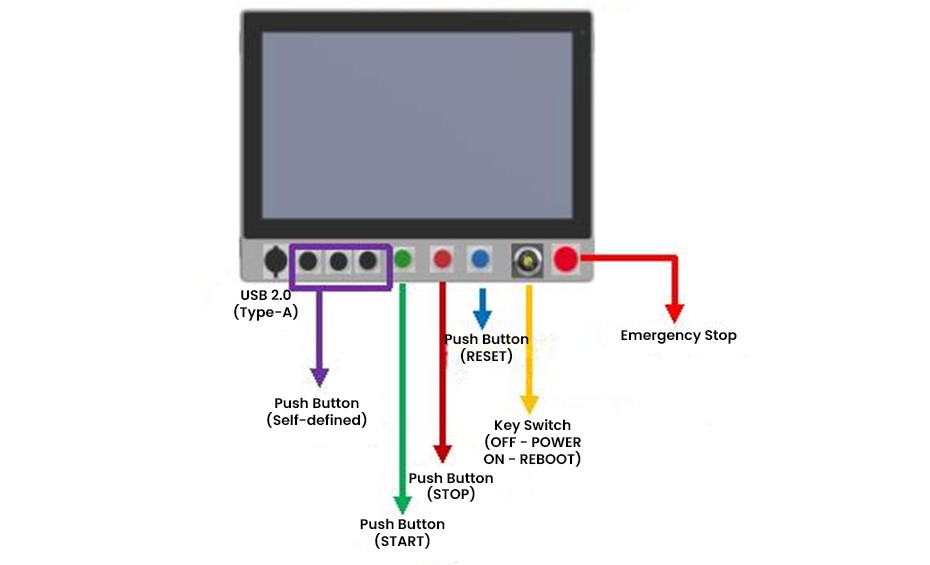

| Other | Default 5x Buttons- 1x Emergency-Stop, 1x Blue Button, 1x Red Button, 1x Green Button, and 1x USB 2.0, Optional 1x Key Switch, Optional 3x Black Push Buttons |
Thermal & Environmental
| Operating Temperature | 0°C - 55°C (32°F – 131°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 0% – 90% Non-condensing |
Enclosure
| Material | Aluminum front bezel and Stainless Steel Swing Arm |
| IP Rating | IP65 |
| Color | Silver |
| Mounting Options | Swing Arm, Rittal CP-40 |
Certification
| Certifications | CE, FCC |
Warranty
| Warranty | Up to 5 Years |
