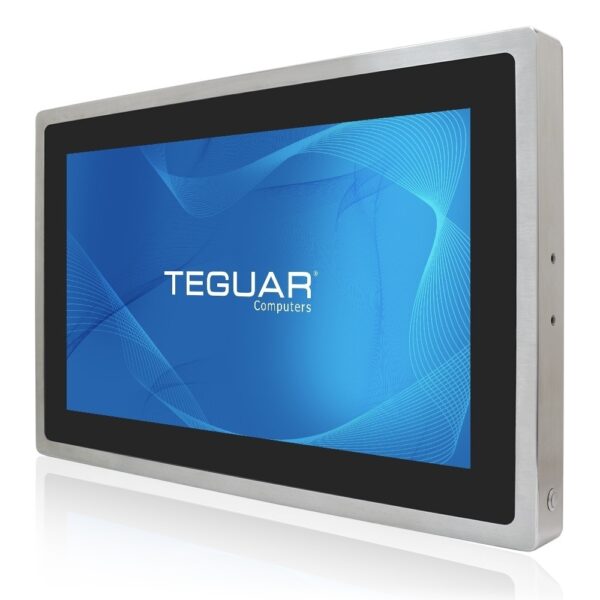

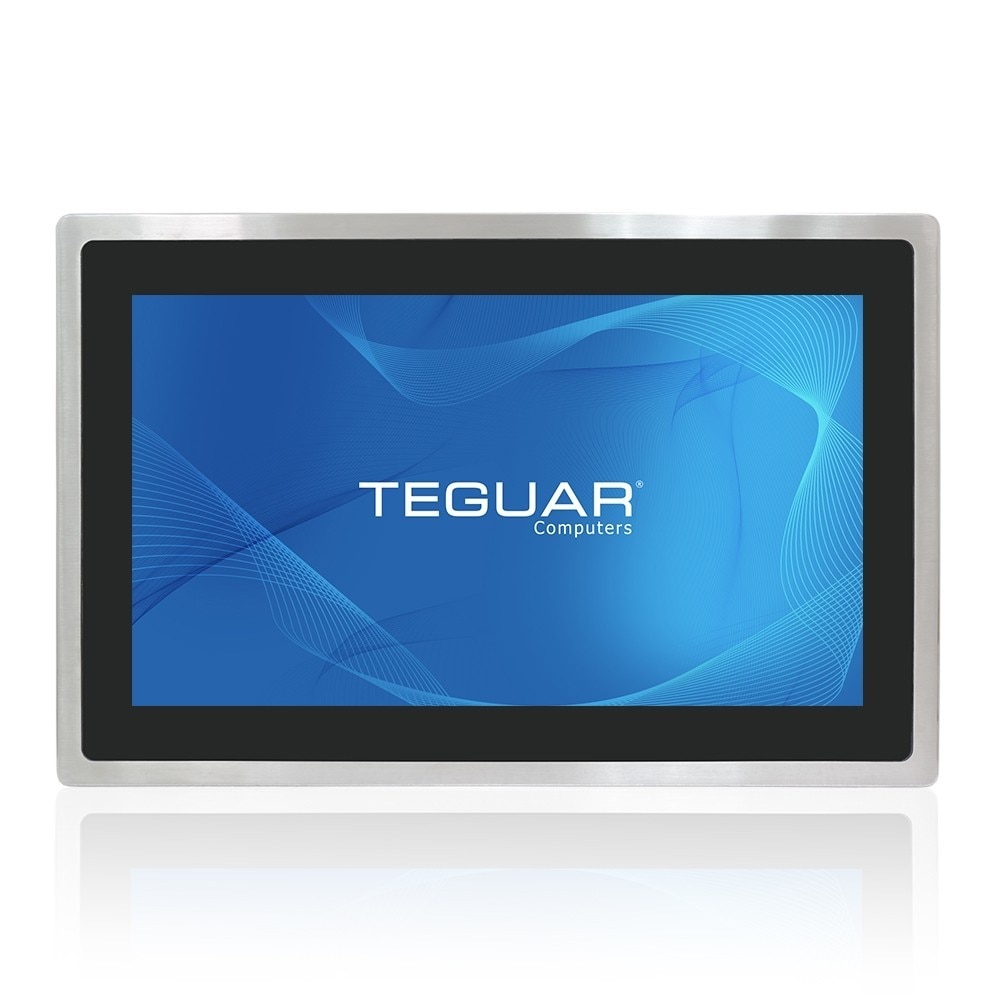

TSD-45-22

22" Waterproof Touchscreen Monitor
Available – Buy Now or Contact Us for Quick Quote

Description

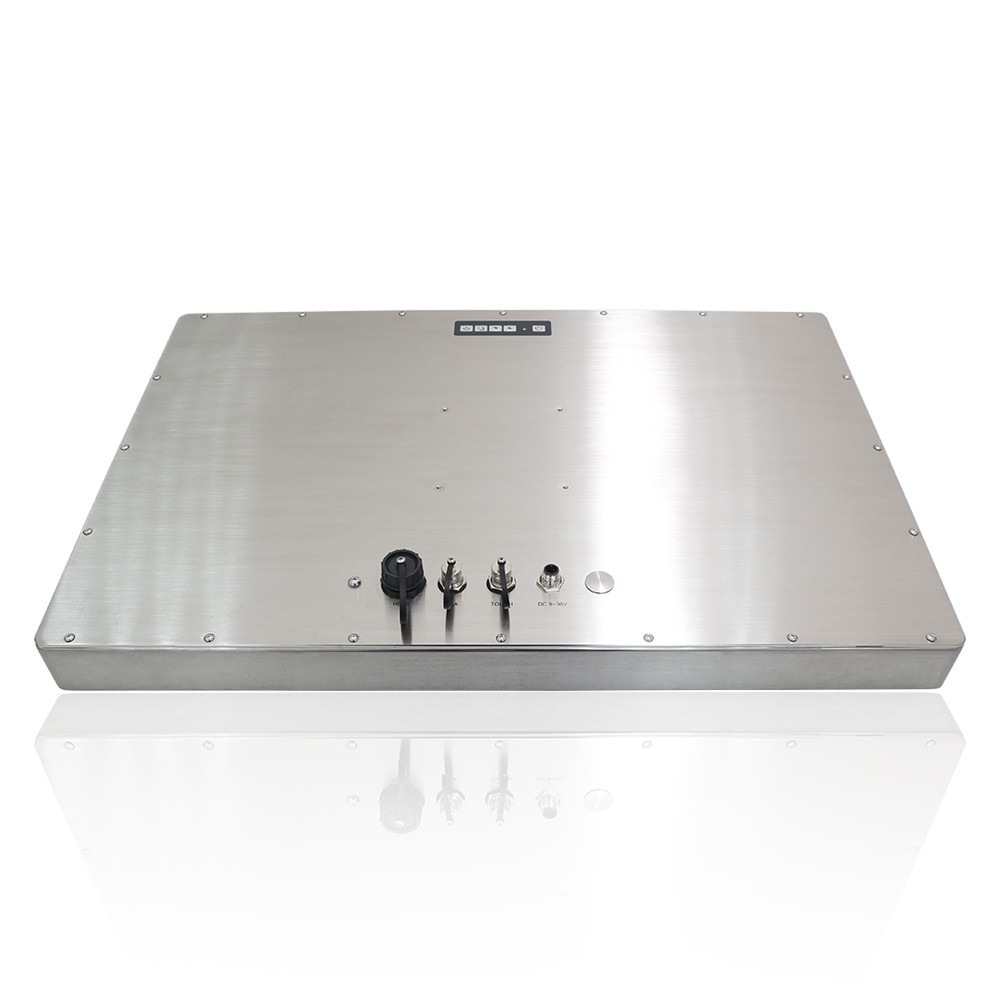

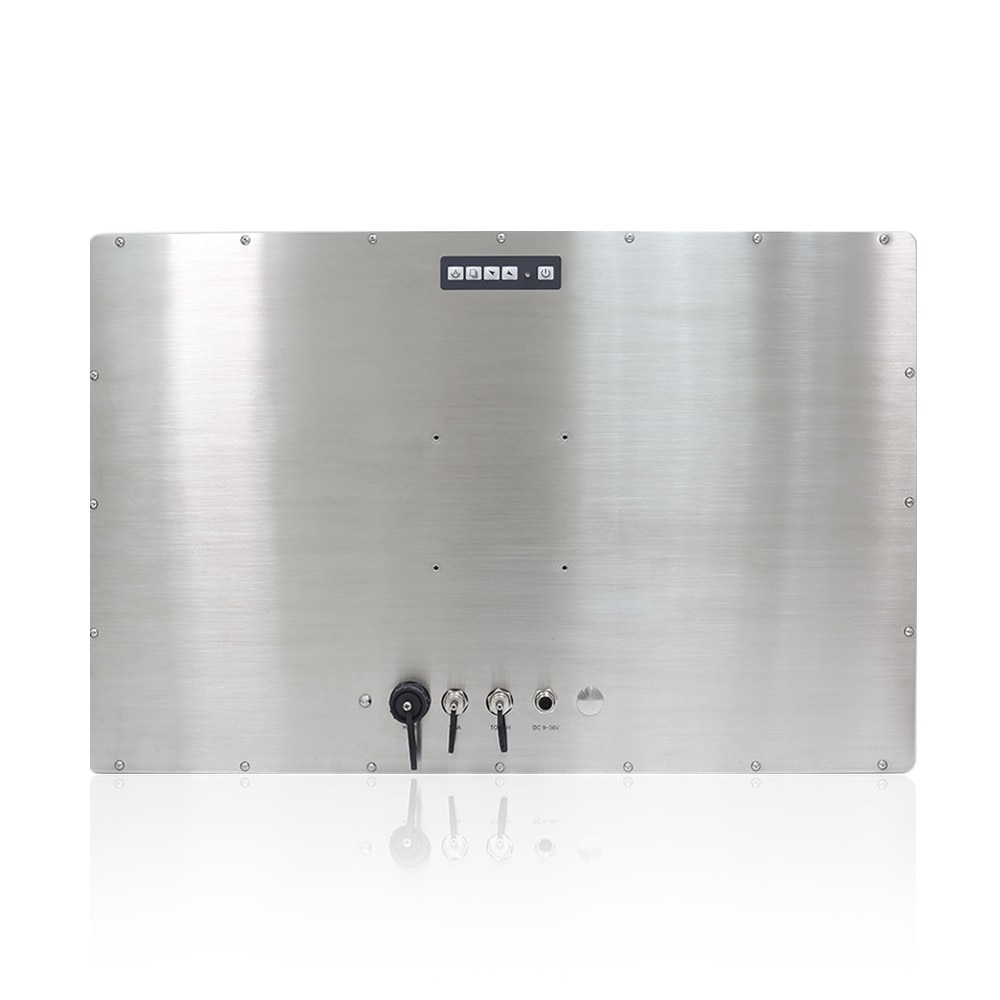

The TSD-45-22 is a fully waterproof touchscreen display, ideal for food and beverage manufacturing facilities, clean rooms, and even outdoor applications. The 21.5” touchscreen is available in resistive or p-cap touch and the on-screen display (OSD) controls on the rear of the monitor allow for quick screen adjustments. This unit is IP66/IP69K rated and NEMA 4x compliant and the housing it grade 304 stainless steel, ensuring the unit won’t rust. You can also upgrade to grade 316L stainless steel, for settings exposed to salt water. The VESA mount on the back of the TSD-45-22 enables stand-alone placement, kiosk placement, wall placement and more. The TSD-45 series comes in screen sizes from 10” up to 24” and in various screen ratios, so you can choose the best configuration for your application.

Key Highlights

  • 21.5″ Flat TFT LCD Touchscreen
  • IP66/IP69K Fully Enclosed Fanless Design
  • HDMI and VGA Inputs
  • Grade 304 Stainless Steel Enclosure
  • M12 Metal I/O Connectors

Starting at: $2,173.80

Customize & Buy

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit High Brightness, 250 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB1x M12 USB
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC
Max Power Consumption18.9W

Thermal & Environmental

Operating Temperature0°C - 50°C - 0°C - 40°C (32°F – 122°F (Standard), 32°F – 104°F (With High Bright LCD))
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K
Control ButtonsOn-Screen Display (OSD), Touchscreen Lock for Cleaning
Mounting OptionsVESA 100 Mount, Yoke Mount

Weight / Dimensions

Weight9 kg (19.8 lbs)
Dimensions571 x 362 x 55 mm (22.5 x 14.3 x 2.2 in)

Certification

CertificationsCE, FCC Class A

Warranty

WarrantyUp to 5 Years

Outdoor Applications: With optional features like high brightness, optical bonding, and ambient light sensors, the TSD-45 Series is well-suited for outdoor applications where sunlight readability and visibility are crucial. It can be used in industries such as outdoor signage, transportation, and agriculture, providing reliable and visible monitors in various weather conditions.

Industrial Automation: The TSD-45 Series, with its robust construction and M12 connectors, is suitable for industrial automation environments that require waterproof and durable monitors. It can be used for tasks such as machine control, process visualization, and data monitoring, providing reliable and rugged monitors in demanding industrial settings.

Production Line Monitoring: The TSD-45 Series, with its optional integrated IP65-rated speakers, can be used for production line monitoring and signaling. It provides visual and audio feedback for alarms, notifications, and process control in industries such as manufacturing, assembly, and packaging.

Dimensional Drawings & I/Os

I/O Diagram Images

IP66 Waterproof Monitor IOs Teguar

Tech Diagram Images

TSD-45-22 Technical Drawing
