TSC-7010-19

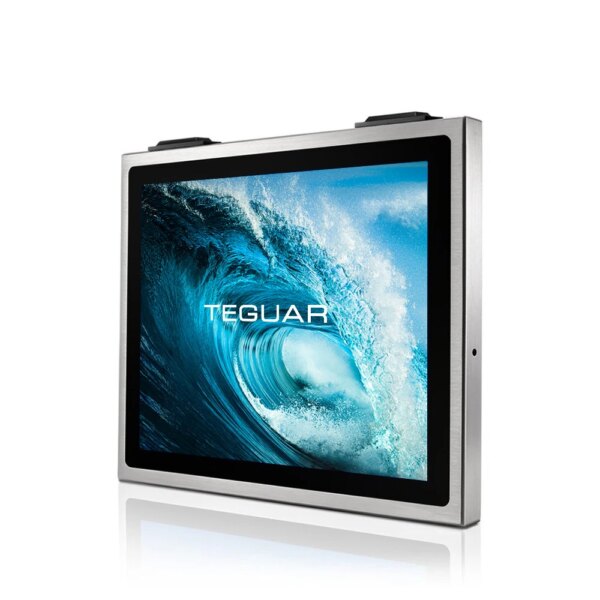

19" IP69K Computer | Trident

Available – Contact Us for Quick Quote

19" IP69K Computer TSC-7010-19 Back Cable Glands

Description

The 19″ IP69K Computer is equipped with a powerful 12th Gen Intel Core i5 10-Core CPU, which boasts seamless performance, complemented by the intuitive interface of Windows 11. With an IP66 and IP69K rating, it ensures unparalleled protection against dust, water, and high-pressure cleaning. Its sealed IO design for standard cables enhances durability in demanding environments. Featuring dual 2.5 GbE LAN ports, the TSC-7010 facilitates swift data transfer. Tailored for food and beverage manufacturing, pharmaceutical production, and cleanroom applications, it caters to diverse industrial needs with unparalleled effectiveness.

Key Highlights

19” Touch Screens
12th Gen Intel Core i5 10-Core CPU

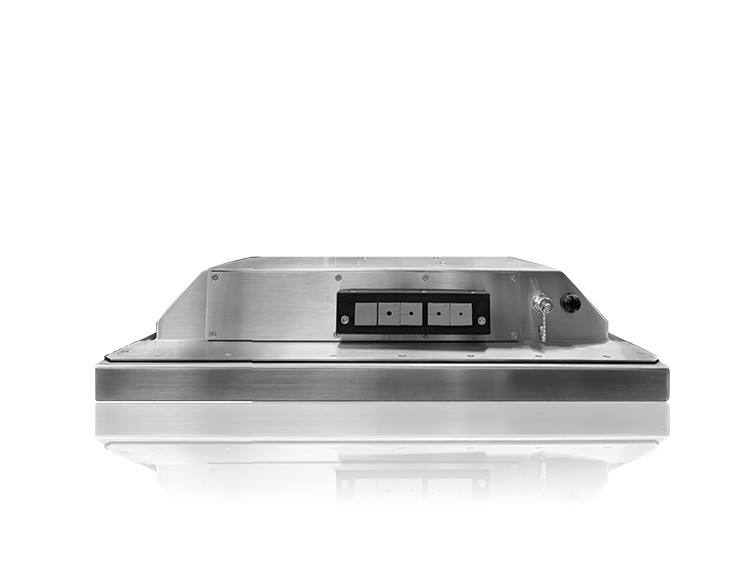

Cable Gland for Sealed I/O Connections
IP66, IP69K Waterproof Rating
Windows 11 Compatible
Dual 2.5 GbE LAN

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core I series 12th Generation Alder Lake
Processor Model	Core i5-1245UE
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-1TB

Display

Screen Size	19
Resolution	1280 x 1024 (SXGA)
Screen Ratio	5:4
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Touch Screen	Projected Capacitive, Resistive
Hardness	Resistive: 3H, P-cap: 7H

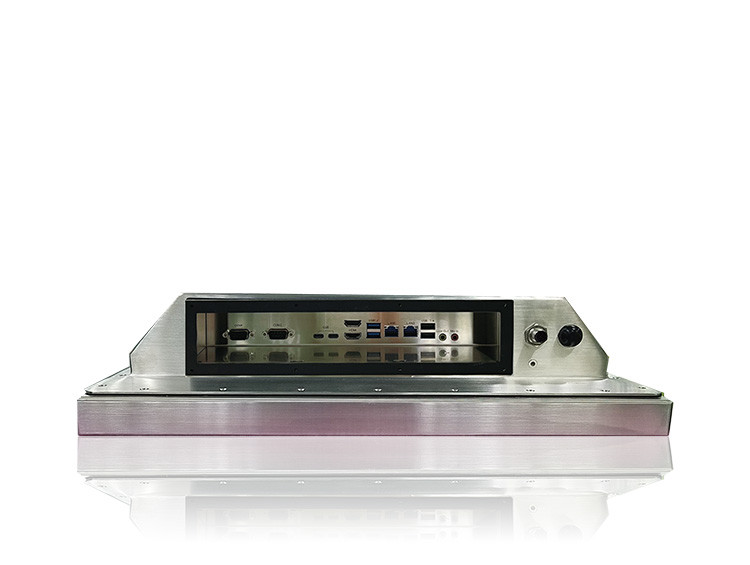

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2, 2x USB 3.2 Type C
Serial / Com	2x COM
Serial Protocol Detail	2x RS-232/422/485
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	2x Display Port 1.4a via USB-C, 2x HDMI 2.0b
Audio Ports	1x Audio Line-Out, 1x Mic-In

Power

Input Voltage Range	12-28V DC
Standard Power Adapter	AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2

1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option), 1x M.2 for NVME SSD Support, 1x M.2 Type E

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	0°C - 40°C (32°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66, IP69K
Color	Stainless Steel
Control Buttons	Brightness Down, Brightness Up, Power Button
Mounting Options	Swing Arm, Table Mount, VESA 100 Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi + Bluetooth Flat Antenna Kit
Sim Card	1x Nano SIM Card Slot
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional RFID (Cannot coexist with barcode scanner)

Weight / Dimensions

Weight	7.39 kg (16.3 lbs)

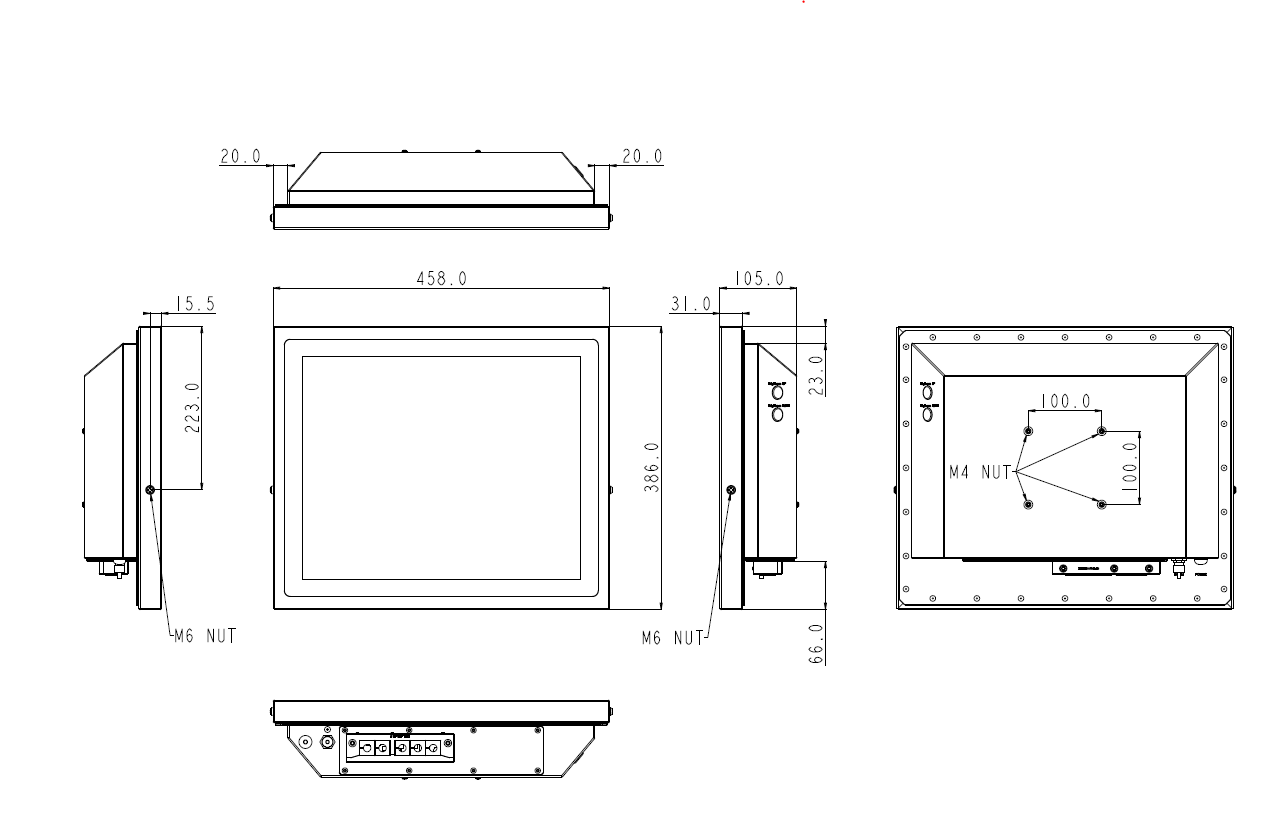

Dimensions	458 x 396 x 105 mm (18.0 x 15.6 x 4.1 in)

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Food and Beverage Manufacturing: The TSC-7010 Series, with its fully waterproof design and stainless steel construction, is ideal for food and beverage manufacturing environments that require frequent washdowns. It can be used for tasks such as recipe management, batch tracking, and quality control.

Pharmaceutical Production: With its waterproof and cleanroom-compatible design, the TSC-7010 Series is well-suited for pharmaceutical production environments. It provides reliable and durable computers for tasks such as process monitoring, documentation management, and regulatory compliance.

Cleanroom Applications: The TSC-7010 Series’ waterproof and cable gland design make it suitable for cleanroom applications that require protection against water and dust. It can be used in industries such as semiconductor manufacturing, medical device production, and research laboratories.

See the data sheet Warranty Download Drivers
