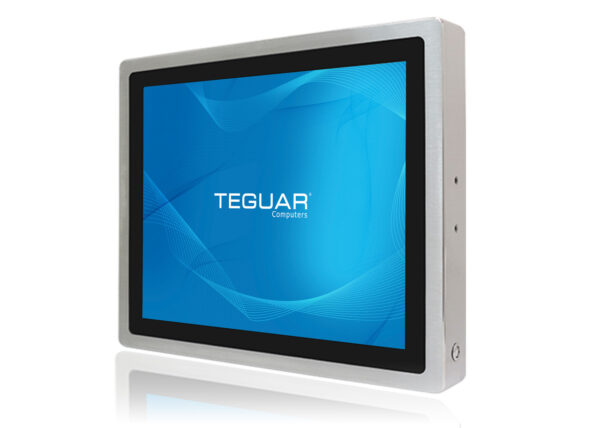

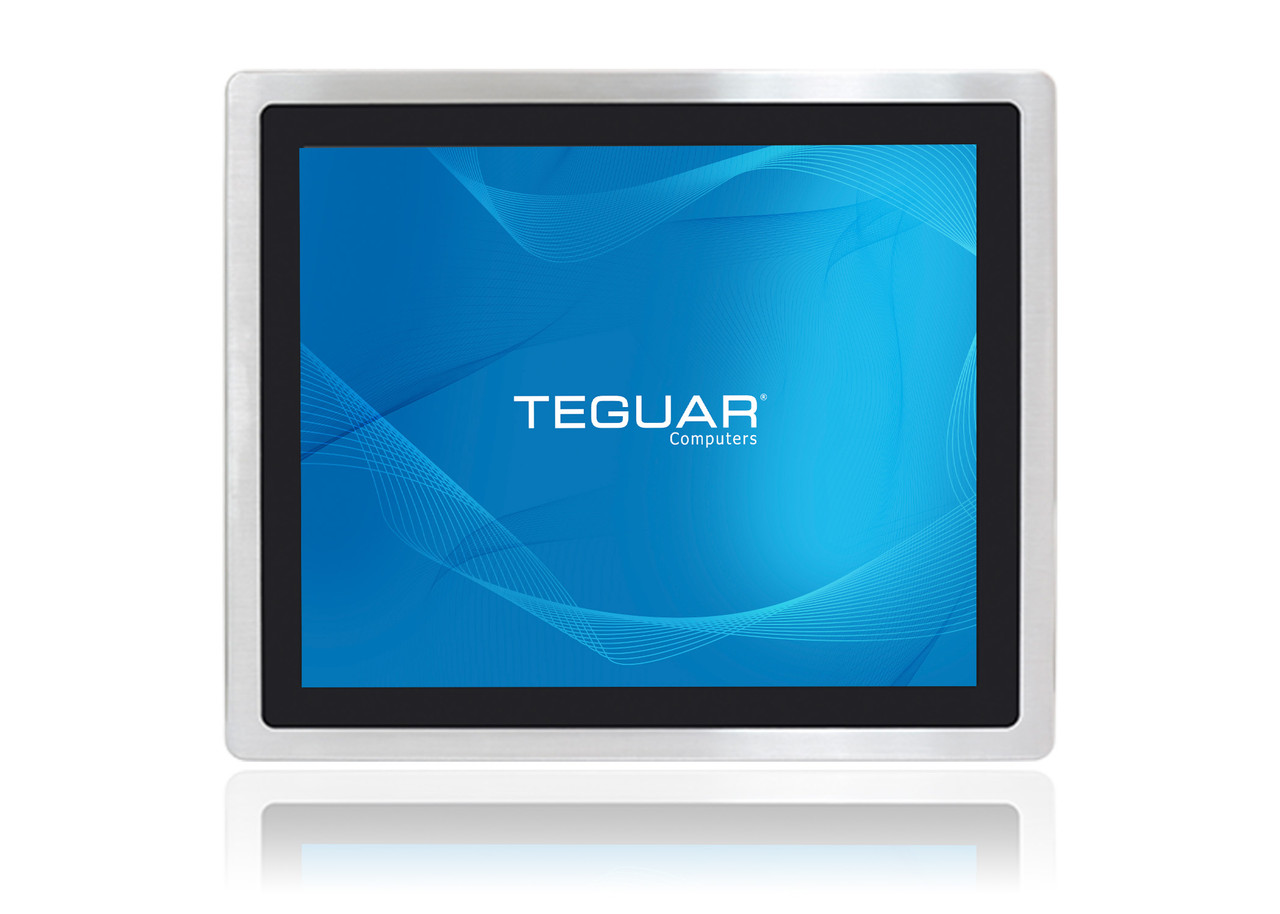

TS-5645-19

19" Stainless Steel HMI
Available – Contact Us for Quick Quote

Description

The TS-5645-19 Stainless Steel HMI runs on a powerful Intel 8th generation Core i3 processor and has the capability to operate with Windows 11. The computer is encased in a fully sealed stainless-steel housing, making it ideal for wet environments. The fanless cooling system and IP66 rating ensure no dust, debris, water or harsh chemicals get into the unit. M12 waterproof I/O connectors also protect the inputs and outputs from potential moisture. The TS-5645-19 is built with industrial-grade components and supports a wide temperature range to allow for placement in a variety of environments.

Key Highlights

  • 19” LCD TFT touchscreen display
  • Fanless cooling system
  • Multiple I/Os including 2x USB 2.0, 1x LAN, and 1x COM
  • IP66 waterproof rated
  • Intel 8th Generation Core i3 CPU
  • VESA 75 mounting

Primary Components

Processor FamilyIntel Core I series 8th Generation Whiskey Lake-U
Processor ModelCore i3 8145UE, Core i5-8365UE
Processor Speed2.4 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB
Storage Type1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage SupportM.2: 128GB-1TB

Display

Screen Size19
Resolution1280 x 1024 (SXGA)
Screen Ratio4:3
BrightnessOptional 1000 nit High Brightness, 350 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB1x M12 8Pin for USB 1/2
Serial Protocol Detail1x RS-232/422/485 DB-9, default RS-232
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN
Video Outputs1x Optional DisplayPort, 1x Optional HDMI
Other Ports1x M12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC

Operating Systems

WindowsWindows 10 IoT, Windows 11, Windows 11 Pro

Compatibility

Security HardwarefTPM 2.0

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialSUS304 Stainless Steel
IP RatingIP66 Front Bezel
ColorSilver
Control ButtonsPower Button, Touchscreen Lock for Cleaning
Mounting OptionsVESA Mount

Weight / Dimensions

Weight9.5 kg (20.9 lbs)
Dimensions432 x 358 x 55 mm (17.0 x 14.1 x 2.2 in)

Certification

CertificationsCE, FCC Class A

Warranty

Warranty1 Year

Food Processing: The TS-5645 Stainless Steel HMI Computer Series is designed to withstand the challenges of food processing environments, with its fully sealed stainless steel housing and IP66 rating, ensuring protection against water, dust, and harsh cleaning chemicals.

Chemical Manufacturing: With its resistance to harsh chemicals and its ability to operate in a wide temperature range, the TS-5645 Series is well-suited for industrial environments in the chemical manufacturing industry, providing reliable computing solutions for process control and monitoring applications.

Pharmaceutical Production: The TS-5645 Stainless Steel HMI Computer Series, with its rugged and sealed stainless steel housing, is ideal for pharmaceutical production environments that require high levels of cleanliness and protection against contamination, making it suitable for critical data monitoring and analysis tasks.

Dimensional Drawings & I/Os

I/O Diagram Images

ts-5645-ios-labled

Tech Diagram Images

TS-5645-19 Technical Drawing
