TS-5645-17

17" Stainless Steel HMI
Available – Contact Us for Quick Quote

Description

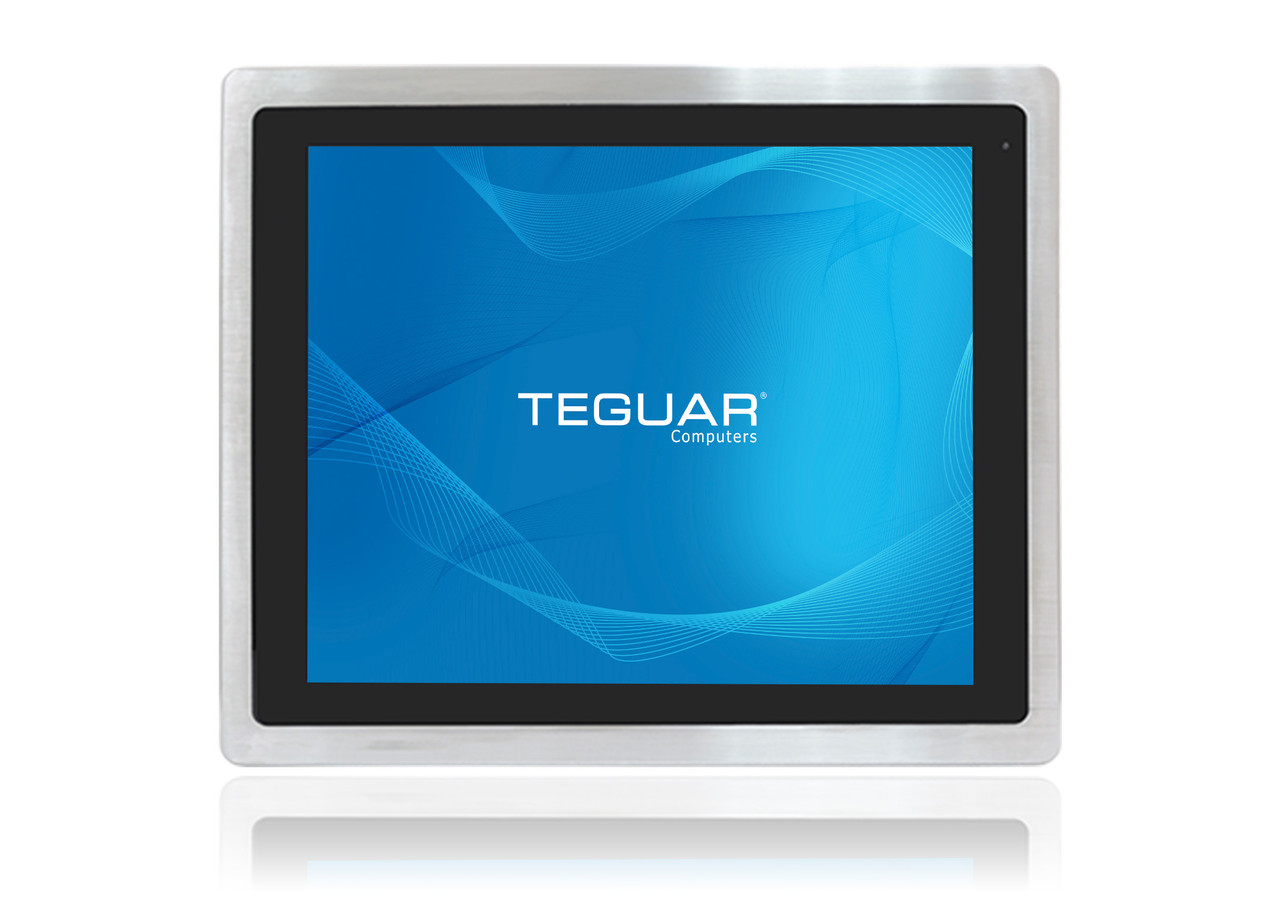

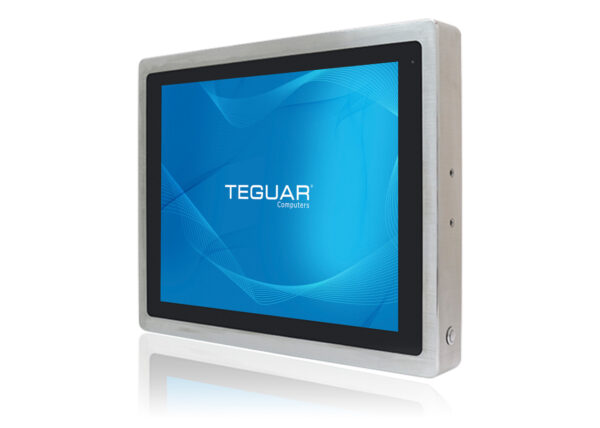

The TS-5645-17 Stainless Steel HMI has a fully fanless design and is IP66 waterproof rated. It is encased in a fully sealed, stainless-steel housing, making it ideal for wet environments. Along with M12 waterproof I/O connectors, this unit is ideal in industrial applications where dust, water, or hard chemicals are present. The powerful TS-5645-17 runs on an Intel 8th generation Core i3 CPU with the capability to run Windows 11. Built with industrial-grade components, this computer supports a wide temperature range to allow for placement in a variety of environments.

Key Highlights

  • Intel 8th Generation Core i3 CPU
  • Fanless cooling system
  • IP66 waterproof rated
  • Multiple I/Os including 2x USB 2.0, 1x LAN, and 1x COM
  • 17” LCD TFT touchscreen display
  • VESA 75 mounting

Primary Components

Processor FamilyIntel Core I series 8th Generation Whiskey Lake-U
Processor ModelCore i3 8145UE, Core i5-8365UE
Processor Speed2.4 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB
Storage Type1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage SupportM.2: 128GB-1TB

Display

Screen Size17"
Resolution1280 x 1024 (SXGA)
Screen Ratio4:3
BrightnessOptional 1000 nit High Brightness, 350 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB1x M12 8Pin for USB 1/2, 2x USB 2.0
Serial Protocol Detail1x RS-232/422/485 DB-9, default RS-232
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN
Video Outputs1x DisplayPort, 1x HDMI
Other Ports1x M12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC
Max Power Consumption48W
Standard Power AdapterOptional IP65 24 V 2.5A AC/DC Adapter

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66 Front Bezel
Mounting OptionsVESA Mount

Weight / Dimensions

Weight8.2 kg (18.1 lbs)
Dimensions432 x 358 x 55 mm (17.0 x 14.1 x 2.2 in)

Certification

CertificationsCE, FCC Class A

Warranty

Warranty1 Year

Food Processing: The TS-5645 Stainless Steel HMI Computer Series is designed to withstand the challenges of food processing environments, with its fully sealed stainless steel housing and IP66 rating, ensuring protection against water, dust, and harsh cleaning chemicals.

Chemical Manufacturing: With its resistance to harsh chemicals and its ability to operate in a wide temperature range, the TS-5645 Series is well-suited for industrial environments in the chemical manufacturing industry, providing reliable computing solutions for process control and monitoring applications.

Pharmaceutical Production: The TS-5645 Stainless Steel HMI Computer Series, with its rugged and sealed stainless steel housing, is ideal for pharmaceutical production environments that require high levels of cleanliness and protection against contamination, making it suitable for critical data monitoring and analysis tasks.

Dimensional Drawings & I/Os

I/O Diagram Images

ts-5645-ios-labled

Tech Diagram Images

ts-5645 technical drawing
